  • Page 2 Bluenote® Phono 2 I.A.V.® ITALIAN PRESTIGE MM & MC REFEREBCE PHONO STAGE Owner’s Manual...

  • Page 3: Table Of Contents

    MANUFACTURED IN ITALY TEL.+39.0571.675005 FAX.+39.0571.675013 PHONO 2 Italian Prestige phono stage Table Of Contents Congratulations & Introduction Box Content Installation & Positioning Operating the Phono 1 Volume Control Specifications Warranty, Customer Service & Warnings Troubleshooting F.A.Q. & Adjustment...

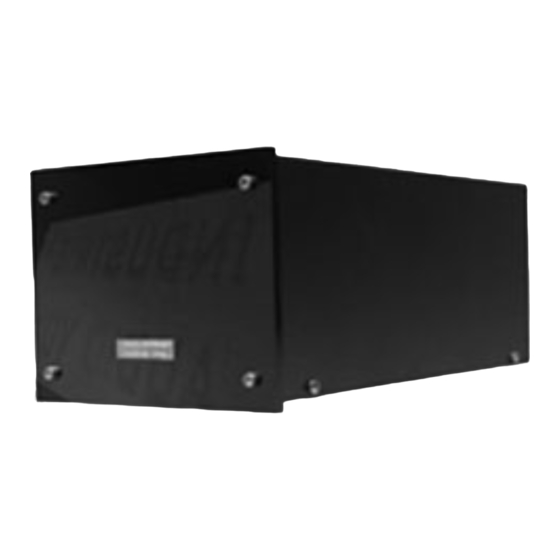

  • Page 4: Phono 2 Italian Prestige Phono Stage

    Bluenote® phono stages. The external chassis of the Bluenote® phono stages are made entirely from self shielding steel alloy to increase the structural rigidity and avoid RFI EMI interferences. The front panel is made of polished black acrylic. The cables used for the internal wiring are in high-quality OFC OCC Hyper Litz copper and are completely shielded with a steel sock inside.

  • Page 5: Congratulations & Introduction

    Positioning of the PHONO 2 Phono Stage The PHONO 2 Phono stage has been designed for use in Hi-Fi systems in sheltered locations. It ought therefore to be protected from any eventual variations in temperature and humidity. Avoid using in the vicinity of radiators or other strong heat sources, electrical and electronic motors, switched on mobile phones etc.

  • Page 6: Volume Control

    Volume Control It is possible vary the PHONO 2 Gain from MM to MC. It is also possible vary the load impedance on this unit. To do that, it is necessary to carefully unscrew and pull out (remember that the back panel is connected with soldered cables) the back panel of Phono 1, after switching off the unit it is been disconnected the AC power chord from the wall plug.

  • Page 7: Specifications

    Volume Control PHONO 2 Italian Prestige phono stage Technical Specifications The following data describe the basic technical specifications of the I.A.V.® Phono 1Phono stage at the time of drafting this manual. The specifications are subject to modification without notice. The product complies with the requirements laid down in the EC regulations.
  • Page 8 Do not return any object directly to the factory or to the national distributor or without being authorized to do so. In such cases both Bluenote® and the distribution agents operating within your territory decline responsibility of any kind. PS. The photos reproduced here refer to the PHONO 2 Phono Stage, but parts and descriptions may vary from the product on sale without notice.

  • Page 9: Troubleshooting

    CAUSE REMEDY • • HEATING The Phono Stage warms Phono Stages produced up too much Bluenote normally warms up to 50° Celsius without creating any problem • • SPEAKER HUMMING The speakers hum when The Phono Stage is very Be sure your area and personal...

  • Page 10: Adjustment

    Phono Stage could be assistance damaged Troubleshooting PHONO 2 Italian Prestige phono stage F.A.Q. Adjustment PHONO 2 Phono Stage ACTION DESCRIPTION HOW TO ADJUST IT • • MATCHING CARTRIDGE Your cartridge needs a proper Once you disconnect the Phono Stage from the...
  • Page 11 To have only move the following 2 micro switches: • 470ohm (MC TYPICAL) impedance move the 2, 3 switches towards the “ON” labelled side. • 47Kohm (MM TYPICAL) impedance move the 2, 3 switches towards the “2 & 3” labelled side. •...
