SE-220, SE-220-SS, SE-227, SE-227-SS
Installation, Maintenance & Operation Instructions
LIFESAVER® EMERGENCY SHOWER
DESCRIPTION

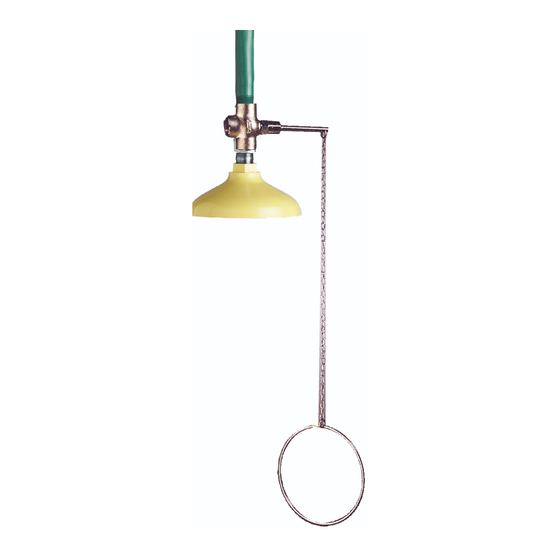

Emergency deluge shower supplied with stay-open full flow ball valve, activated by triangular pull rod.
SE-220 SPECIFICATIONS
SHOWER HEAD: 8" DIA. YELLOW PLASTIC.
FLOW CONTROL: SEE FLOW DATA CHART BELOW
VALVE: 1" NPT FEMALE BRASS, CHROME-PLATED. STAY-OPEN VALVE.
ACTIVATOR: POWDER COATED YELLOW, ALUMINUM TRIANGULAR PULL ROD.
INLET: 1" NPT FEMALE.
SHIPPING WEIGHT: 6.65 LB.
EMERGENCY SIGN: 7-7/8" X 7-7/8" PLASTIC WALL SIGN.
SE-220-SS SPECIFICATIONS
SHOWER HEAD: 8" DIA. STAINLESS STEEL.
FLOW CONTROL: SEE FLOW DATA CHART BELOW
VALVE: 1" NPT FEMALE STAINLESS STEEL. STAY-OPEN VALVE.
ACTIVATOR: STAINLESS STEEL TRIANGULAR PULL ROD.
INLET: 1" NPT FEMALE.
SHIPPING WEIGHT: 6.65 LB.
EMERGENCY SIGN: 7-7/8" X 7-7/8" PLASTIC WALL SIGN.
SE-227 SPECIFICATIONS
SHOWER HEAD: 8" DIA. YELLOW PLASTIC.
FLOW CONTROL: SEE FLOW DATA CHART BELOW
VALVE: 1" NPT FEMALE BRASS, CHROME-PLATED. STAY-OPEN VALVE.
ACTIVATOR: POWDER COATED YELLOW, ALUMINUM TRIANGULAR PULL ROD.
INLET: 1" NPT FEMALE.
PIPE: 1" IPS GALVANIZED STEEL.
SHIPPING WEIGHT: 8.98 LBS.
EMERGENCY SIGN: 7-7/8" X 7-7/8" PLASTIC WALL SIGN.
SE-227-SS SPECIFICATIONS
SHOWER HEAD: 8" DIA. STAINLESS STEEL.
FLOW CONTROL: SEE FLOW DATA CHART BELOW
VALVE: 1" NPT FEMALE STAINLESS STEEL. STAY-OPEN VALVE.
ACTIVATOR: STAINLESS STEEL TRIANGULAR PULL ROD.
INLET: 1" NPT FEMALE.
PIPE: 1" IPS GALVANIZED STEEL.
SHIPPING WEIGHT: 8.98 LBS.
EMERGENCY SIGN: 7-7/8" X 7-7/8" PLASTIC WALL SIGN.
INSTALLATION
Review drawing to assure proper installation. Assemble unit to a 1" supply pipe that has an uninterrupted
source of potable water. Use pipe sealant on this joint. Failure to use potable water can result in
emergency units producing impure or contaminated water causing possible further injury.
SPEAKMAN
®
400 Anchor Mill Rd. New Castle, DE 19720
Phone: 800-537-2107
Fax: 800-977-2747
07/28/2016
speakman.com
92-SE-220-227-03
