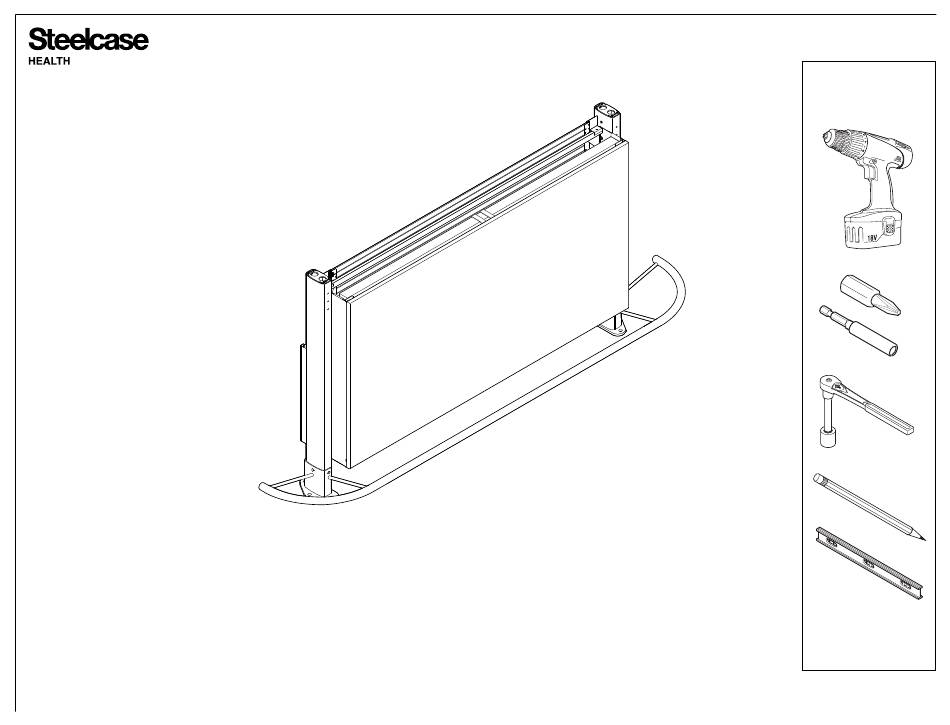

Sync™ Double-Sided Base Units
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2018 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 15
U.S.A.
Printed in U.S.A.
939549943 Rev G
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Sync Double-Sided Base Unit
Summary of Contents for Steelcase Sync Double-Sided Base Unit
- Page 1 ® Sync™ Double-Sided Base Units If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 Set base unit in place and mark locations for Thread a nut, then a washer on each floor anchors. Set unit aside. anchor as shown. NOTE: Consult the building's Engineer of Record Set unit on floor anchors. Plumb and to specify the correct fasteners for attachment to level base unit using the nuts and washers.
- Page 3 Attach the cantilevers for top installation as shown (6a) and secure to unit using three (3) bolts per cantilever (6b). If installing a transaction top, use the smaller cantilever (6c). 16" LONG STRAP 36" LONG STRAP Page 3 of 15 939549943 Rev G...
- Page 4 PUSH RIVET After holes for floor power are located, install floor power cable column. CABLE COLUMN Place the two sides of cable column next to each other and snap a push rivet into the top two holes (7a). Place each cable column floor clip as shown (7b). Mark each hole on each cable column floor clip (7c).
- Page 5 MULTIPURPOSE BRACKET CABLE TRAY Lower multipurpose bracket into place, as shown. Secure multipurpose bracket to upper support with self-tapping screws. Attach cable tray to multipurpose 5-1/2” bracket with screws, as shown. NOTE: J-boxes or fasteners are not supplied and can be installed later. Multipurpose bracket has mounting holes for standard J-boxes.
- Page 6 All electrical connections should be made at this point by a licensed electrician according to the local electrical codes (i.e. junction boxes, receptacles, conduit). Install CPU's by installing the CPU mount plates. Place each CPU mount plate between the faceplate and faceplate support bracket, as shown (12a).
- Page 7 GROUNDING TAB • Align j-boxes to the mounting holes on furniture covers and measure the NOTE: FACEPLATE IS SHOWN REMOVED FROM BASE UNIT FOR REFERENCE. distance between the j-boxes to determine conduit length. DO NOT REMOVE FACEPLATE FROM BASE UNIT. GROUNDING EMT CONNECTOR 3"...
- Page 8 • Position j-box assembly onto the faceplate cover and mount assembly to the faceplate. NOTE: The outermost holes are used, with the supplied stainless steel screws, to attach the faceplate to the outlets. MOUNTING LOCATION OF • Install the multi-purpose brackets behind the RECEPTACLE TO FACEPLACE electrical assembly and attach using blunt screw from back side of multi-purpose bracket into the...
- Page 9 • Finish by securing the set screws for the multi-purpose brackets to keep secure to the faceplate support bracket. • 4 x 4 j-boxes can be attached to the inside of each leg for additional receptacle locations. These j-boxes can be mounted flat to the leg or mounted perpendicular for extra receptacles.
- Page 10 Thread straps through slots of each CPU mount plate, as shown. Route straps upward, as shown, (14a) and secure straps into clips (14b). STRAP CPU MOUNT PLATE CLIP 60" LONG STRAP Page 10 of 15 939549943 Rev G...
- Page 11 COLUMN An additional CPU may be installed next, as shown. RH FOOT For each foot, a foot cover COVER needs to be installed. Install the RH foot cover so it encompasses the leg column as shown (16a). Install the LH foot cover next to the RH foot cover by sliding downward and engaging the RH foot cover (16b) until it is fully...
- Page 12 Remove side panel cover so plugs and cords can be routed through. Once cords have been routed, slide cords into 1/4" gap that exists between notch in worksurface and leg. Replace side panel cover when completed. The monitor arms (if applicable) and the worksurfaces may be installed at this point.
- Page 13 Lower the bottom tile brackets onto Connect longest strap. the lower support bar. LOWER SUPPORT BAR COUPLER Page 13 of 15 939549943 Rev G...
- Page 14 21a. Connect short strap. Snap tile into place by pushing it 8-9/16" very firmly at the upper corners of the tiles until both retention clips fully engage. COUPLER TILE 21b. Slightly raise the tile if necessary to line up the retention clips. Page 14 of 15 939549943 Rev G...
- Page 15 If tile is still loose, it is not fully engaged. Follow all manufacturers’ instructions for installation and use. Obtain assembly directions from your Steelcase dealer or call 1-888-783-3522. Page 15 of 15 939549943 Rev G...
