ER 1, ER 1F
Remote controls
Instruction manual
Valid for: 716-xxx-xxxx
0463 471 001 GB 20170607

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER 1F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB ER 1F

Summary of Contents for ESAB ER 1F

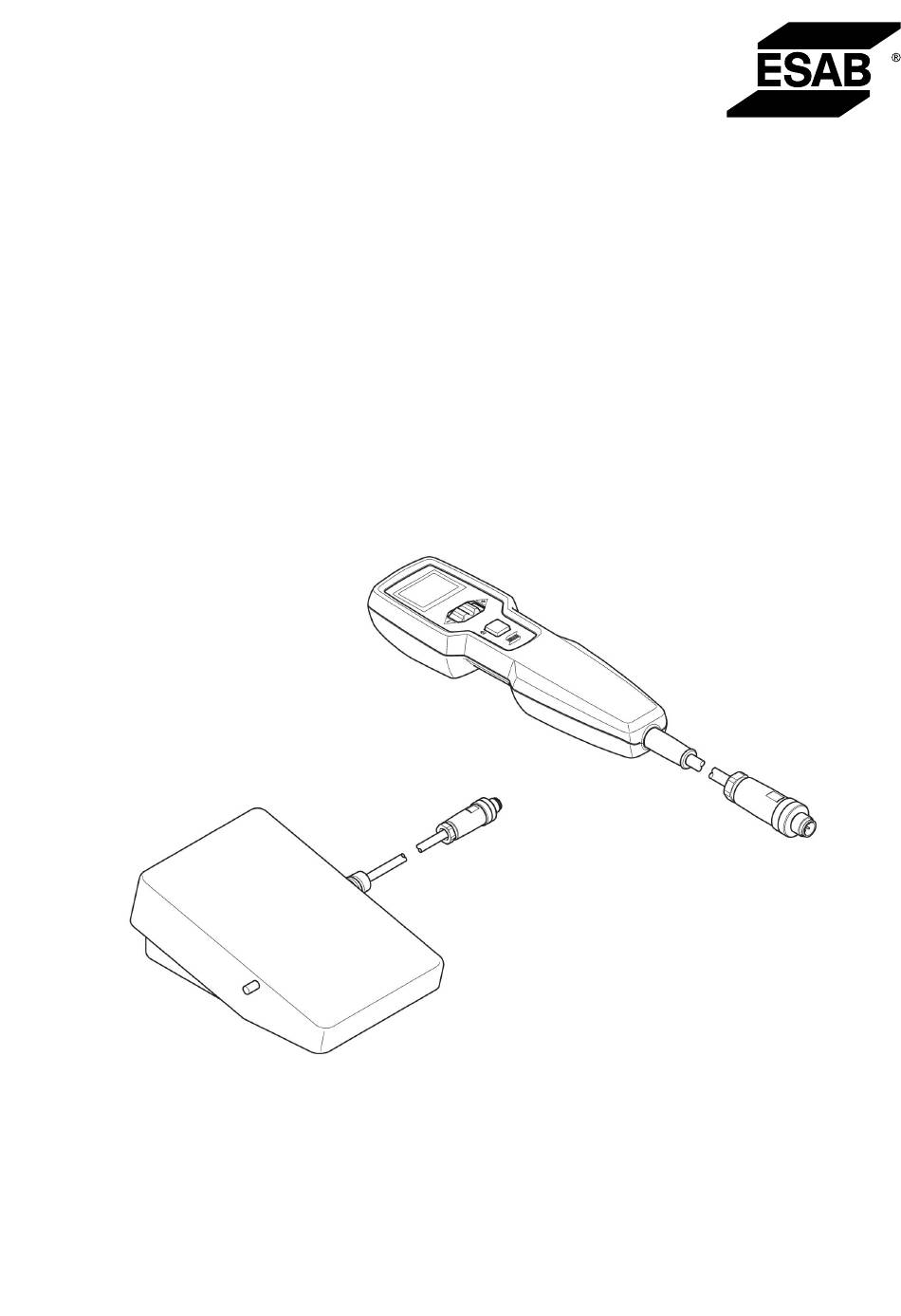

  • Page 1 ER 1, ER 1F Remote controls Instruction manual Valid for: 716-xxx-xxxx 0463 471 001 GB 20170607...

  • Page 3: Table Of Contents

    Activate the remote control ..............Set value....................Activate and deactivate memory ............Lock and unlock the remote control............Deactivate the remote control ..............OPERATION ER 1F ..................10 Start up ...................... Activate the foot pedal ................Deactivate the foot pedal ................. MAINTENANCE .....................

  • Page 4: Introduction

    The foot pedal ER 1F can be used to control current. It also has a trigger function, which can be used for weld start.
  • Page 5 As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. 0463 471 001 - 5 - © ESAB AB 2017...

  • Page 6: Technical Data

    Weight unit with 5 meter 475 g (1.05 lb) 2250 g (4.96 lb) (16.4 ft) cable Operating temperature -20 to +60 °C (-4 to 140 °F) -20 to +60 °C (-4 to 140 °F) Transportation temperature -40 to +80 °C (-40 to 176 °F) -40 to +80 °C (-40 to 176 °F) Enclosure class IP53 IP23 0463 471 001 - 6 - © ESAB AB 2017...

  • Page 7: Operation Er 1

    The power source panel is active. No changes can be made from the remote control. The remote control is inactive. NOTE! The available functions and number of memories depend on the power source the remote control is connected to. 0463 471 001 - 7 - © ESAB AB 2017...

  • Page 8: Activate The Remote Control

    The power source reflects the memory value. To deactive a memory and the values from it, rotate the wheel (3) to change a value or go to memory mode and select Empty memory (no number). 0463 471 001 - 8 - © ESAB AB 2017...

  • Page 9: Lock And Unlock The Remote Control

    When connected to a power source with automatic activation: Unplug the remote control from the power source to deactivate the remote control as described in the instruction manual for the power source. 0463 471 001 - 9 - © ESAB AB 2017...

  • Page 10: Operation Er 1F

    4 OPERATION ER 1F OPERATION ER 1F Start up The remote control ER 1F (foot pedal) is used for TIG welding only. Connect the foot pedal to the power source as described in the instruction manual for the power source.

  • Page 11: Maintenance

    Remove the three screws (3). Remove the connectors. Replace the cable. Insert the connectors and tighten the screws using the correct tightening torque according to the illustration. Replace the back cover. 0463 471 001 - 11 - © ESAB AB 2017...

  • Page 12: Replace Cable Er 1F

    5 MAINTENANCE Replace cable ER 1F Press the two spring latches (1) to release the top cover. Press and release the cable gland (2). The PCBA and connectors are covered by an IP protection sheet. Remove the connectors (3). Remove the screw connecting the shield of cable to the metal plate used for mounting the PCBA (4).

  • Page 13: Troubleshooting

    6 TROUBLESHOOTING TROUBLESHOOTING For troubleshooting and error codes, see the power source instruction manual. 0463 471 001 - 13 - © ESAB AB 2017...

  • Page 14: Ordering Numbers

    0445 536 883 ER 1 Remote control Handheld remote with 6 pin, 25 m (82 ft) cable 0445 550 880 ER 1F Remote control Foot pedal with 4 pin, 5 m (16.4 ft) cable 0445 550 881 ER 1F Remote control Foot pedal with 6 pin, 5 m (16.4 ft) cable...

  • Page 15: Ordering Spare Parts

    Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back cover of this document. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list.

  • Page 16: Accessories

    0445 280 881 Interconnection cable, 6 pin, 10 m (32.8 ft) 0445 280 882 Interconnection cable, 6 pin, 25 m (82.0 ft) ER 1F (0445 550 880) 0445 451 880 Interconnection cable, 4 pin, 5 m (16.4 ft) ER 1F (0445 550 881) 0445 254 880 Interconnection cable, 6 pin, 5 m (16.4 ft)
  • Page 17 9 ACCESSORIES 0463 471 001 - 17 - © ESAB AB 2017...
  • Page 18 ESAB subsidiaries and representative offices Europe THE NETHERLANDS North and South America SOUTH KOREA ESAB Nederland B.V. ESAB SeAH Corporation AUSTRIA Amersfoort ARGENTINA Kyungnam ESAB Ges.m.b.H Tel: +31 33 422 35 55 CONARCO Tel: +82 55 269 8170 Vienna-Liesing Fax: +31 33 422 35 44...
