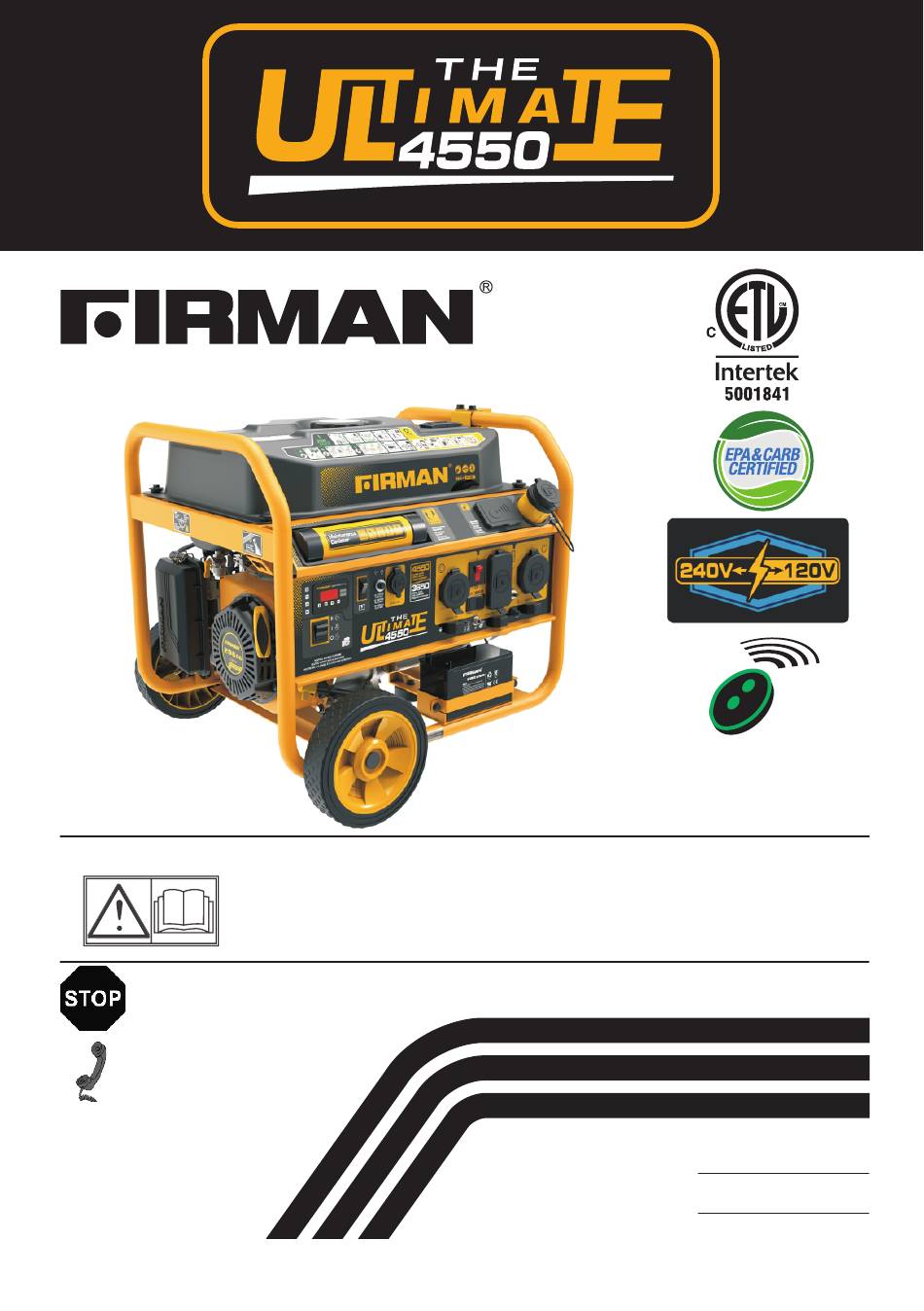

OWNER'S MANUAL
IMPORTANT:
Read all safety precautions and instructions carefully
before operating equipment.
Ensure engine is stopped and level before performing
any maintenance or service.
DO NOT RETURN TO
STORE!
CALL US FIRST!
CUSTOMER HOTLINE
1-844-347-6261
FOR QUESTIONS OR SERVICE
INFORMATION
MODEL NUMBER
P03615
Serial Number:
Purchase Date:
P/N:336745464 Rev:02
Rev Level:00

Advertisement

Table of Contents
loading

Related Manuals for Firman P03615

Summary of Contents for Firman P03615

  • Page 1 OWNER’S MANUAL MODEL NUMBER P03615 Rev Level:00 IMPORTANT: Read all safety precautions and instructions carefully before operating equipment. Ensure engine is stopped and level before performing any maintenance or service. DO NOT RETURN TO STORE! CALL US FIRST! CUSTOMER HOTLINE...

  • Page 2: Table Of Contents

    Table of Contents Introduction ......1 Maintenance And Storage....23 Safety Precautions .

  • Page 3: Introduction

    Save these original instructions for future reference. This manual covers operation and maintenance of the FIRMAN generators. All information in this publication is based on the latest production information available at the time of approval for printing.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS • WARNING POISONOUS GAS HAZARD. • • • • English Page 02 Customer Service: 1-844-FIRMAN1...
  • Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors and vents. • Direct exhaust away from occupied spaces. INCORRECT USAGE Do not operate in any of the following locations: Near any door, window or vent Garage Basement...
  • Page 6 WHEN OPERATING EQUIPMENT WARNING • • DO NOT tip engine or equipment at angle which causes fuel to spill. • DO NOT stop engine by moving choke • control to “Start” position. WHEN TRANSPORTING, MOVING • OR REPAIRING EQUIPMENT • NEVER start or stop engine with electrical Transport/move/repair with fuel tank devices plugged in and turned on.
  • Page 7 • When using generator for backup power, WARNING notify utility company. Unintentional sparking • Use a ground fault circuit interrupter (GFCI) could cause fire or in any damp or highly conductive area, electric shock resulting such as metal decking or steel work. in death or serious •...

  • Page 8: Unpacking The Generator

    NOTE: 1. Axle pin ........2 2.

  • Page 9: Removal Of Shipping Supports

    REMOVAL OF SHIPPING SUPPORTS Before you can run your new generator, follow these simple instructions: CAUTION 3. You may discard these brackets, as it is no longer Failure to remove these items can result required for normal operation of your generator. in damage to your generator, possible Your generator is now ready for use.

  • Page 10: Assembly

    ASSEMBLY Install the Handle The generator requires some assembly prior to 1. Place the handle K over the mounting channel usage. If problem arise when assembling the on the frame. generator, call 1-844-347-6261. 2. Secure the handle to the frame using the two Install the Wheel Kit handle flange bolts H(M8x45).

  • Page 11: Battery Cable Connection

    Battery Cable Connection You will need to use 8mm box wrenches to connect the battery cables to battery. NOTE: The generator comes equiped with the positive red cable(red cable) already attached. 1. Verify the positive (+) battery cable (red boot) is securely tightened to the positive (+) battery post.

  • Page 12: Controls And Features

    English Manual, Oil Funnel, Double 5- Fuel Valve 6- Air Filter Open Wrench, Wrench for Spark Plug and Spare Spark Plug 7- 208cc FIRMAN OHV Engine 8- Recoil Starter 17- Remote Holder Includes Remote 9- Bottle Opener 18- Tethered Adapter TT-30P to L5-30R 10- 8.0"...

  • Page 13: Control Panel

    Control Panel 240V 120V NOTE: Total power drawn from all receptacles must not exceed the name plate rating. Engine Start Switch – Used to start engine from the starter motor(Electric start model only). To start engine, press and hold the switch in the “START”(ll) position, the engine will crank and attempt to start.
  • Page 14 Your remote control is already programmed in factory for your convenience. You might need programming when using new remote control. Tethered Adapter TT-30P(30A/120V) to L5-30R(30A/120V) English Page 11 Customer Service: 1-844-FIRMAN1...

  • Page 15: Remote Start

    Remote Control Programming 4. Push and release the ''STOP'' button on the remote control. The indicator light will flash Before the generator can be started , an initial once to erase the remote program. start-up procedure must be performed so the generator and the remote control recognize STOP each other.

  • Page 16: Specifications

    SPECIFICATIONS Model P03615 Starting Watts 4550 3650 Running Watts Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Standard Total Harmonic Distortion(THD) Alternator Type Brushed Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement...
  • Page 17 4.Using oil funnel, slowly pour contents of ADD ENGINE OIL provided oil bottle into oil fill opening to the "H" mark on dipstick. Be careful do not CAUTION overfill. Overfilling with oil could cause the engine to not start or hard starting. NOTE: Degrees Celsiusº(Outside) 5.Replace oil fill cap/dipstick and fully tighten.

  • Page 18: Add Fuel

    ADD FUEL Fuel must meet these requirements: • Clean, fresh, unleaded gasoline. • Use regular UNLEADED gasoline with the generator engine with a minimum 87 octane / 87 AKI (91 RON). For high altitude use, see "Operation at High Altitude". •...

  • Page 19: Grounding

    THE GENERATOR (STATOR WINDING) AND THE Installation instructions are also available in the FRAME. Technical Bulletin area of the FIRMAN internet site. The part number and recommended minimum Connecting to a Building's Electrical System altitude for the application of the high altitude carburetor main jet is listed in the table below.

  • Page 20: Operation

    5. OPERATION • Generator Location WARNING Make sure you review each warning in order to • prevent fire hazard. Keep area clear of inflammables or other hazardous materials. Select a site that is dry, well ventilated and protected from the weather. •...

  • Page 21: Starting The Generator (Recoil Start)

    Starting the Generator (Recoil Start) 7. Move the choke lever to the “START” position. 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. 2. Check oil level and fuel. 8.

  • Page 22: Starting The Generator (Electric Start)

    4. Turn the fuel valve to the “ON” (l)position. Starting the Generator (Electric Start) Electric Start and Remote Start Operations 5. Flip the engine switch to the "RUN"(l) position. WARNING 6. Flip the battery power restore switch for about 3 seconds and then release. WARNING 7.

  • Page 23: Starting The Generator (Remote Start)

    9. Do not over-choke. As soon as engine starts and warms up, move the choke lever to the “RUN” position. 4. Turn the fuel valve to the “ON” (l)position. 10. Allow generator to run at no load for few minutes upon each initial start-up to permit engine and generator to stablize.

  • Page 24: Connecting Electrical Loads

    3. Turn on voltage selector to desired 120 Volt or If the engine fails to start within 3 to 5 seconds, 240 Volt. When voltage selector is 120 Volt position, the engine will attempt to start five additional 120 Volt is supplied to 120 Volt outlets including times.

  • Page 25: Stopping The Engine

    4. Connect the black (–) battery charger lead to 12V DC Outlet (Battery Charger) the black (–) battery terminal. Your generator has the capability of charging 12V 5. Start the generator. DC automotive or utility style storage battery (NOT OTHER TYPE). NOTE: The 12V DC outlet is ONLY to be used with the When the battery circuit is in use the AC capacity...

  • Page 26: Low Oil Shutdown

    If oil level is between LOW and HIGH mark on dipstick: 1.DO NOT try to restart the engine. 2.Contact an Authorized FIRMAN Service Dealer. STOP 3.DO NOT operate engine until oil level is corrected. 3. Electric Start and Recoil Start Operations If oil level is below LOW mark on dipstick: Flip the engine switch to“OFF”(O) position.

  • Page 27: Maintenance And Storage

    MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every 100 hours ITEM NOTES operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. √ Check oil level. Engine Oil √...

  • Page 28: Engine Maintenance

    • Use fresh and high quality lubricating oil to the ENGINE MAINTENANCE specified quantity. If contaminated or deteriorated oil is used or To prevent accidental starting, remove and the quantity of the engine oil is not sufficient, ground spark plug wire before performing any the engine damage will result and its life will be service.

  • Page 29: Spark Plug Maintenance

    Spark Plug Maintenance To be performed by knowledgable/experienced owner or by authorized service center. Changing the spark plug will help your engine to start easier and run better. (a) Remove the spark plug cap. Cleaning Fuel Strainer (b) Remove spark plug using provided wrench. Dirt and water in the fuel are removed by the fuel strainer.

  • Page 30: Generator Maintenance

    • DO NOT touch hot parts and AVOID hot exhaust CAUTION gases. Failure to clean the spark arrester will result in • Allow equipment to cool before touching. degraded engine performance. • Keep at least 5 feet (1.5 m) of clearance on all GENERATOR MAINTENANCE sides of generator including overhead.

  • Page 31: Service And Storage

    WARNING Long Term Storage It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel hoses or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads To avoid electric shock: to separation and formation of acids during storage.
  • Page 32 8-Keep the engine switch and fuel valve on “OFF” position. 9-Cover the unit and store in a clean, dry place out of direct sunlight. NEVER USE WATER TO CLEAN GENERATOR. NOTE: • We recommend always using a fuel stabilizer. A FUEL STABLIZER will minimize the formula- tion of fuel gum deposits during storage, the fuel stabilizer can be added to the gasoline in the fuel tank, or into the gasoline in a storage...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING Problem Cause Correction 1. Circuit breaker is open. 1. Reset circuit breaker. 2. Overload light is on. 2. Review the load and restart the unit. Engine is running, but no 3. Poor connection or defective cord 3. Check all connections and cord set. AC output is available.

  • Page 34: Parts Diagram And Parts List

    PARTS DIAGRAM AND PART LIST P03615 PARTS DIAGRAM Page 30 English Customer Service: 1-844-FIRMAN1...

  • Page 35: Engine Parts Diagram

    208cc ENGINE PARTS DIAGRAM Page 31 English Customer Service: 1-844-FIRMAN1...
  • Page 36 P03615 PARTS LIST NO. Part Number Description Qty. NO. Part Number Description Qty. 336713612 336713679 FIRMAN 208cc Engine Black Wire 336713501 336713613 Battery Rubber Cap 2 336713564 Grommet 336713502 Rubber Cap1 336713565 Screw M5×14 336713681 Rotor Assy 336713658 Control Box...
  • Page 37 FIRMAN 208cc Engine Parts List NO. Part Number Qty. NO. Part Number Qty. Description Description 336723500 Crankcase Subassembly. 336723561 Cover, Air Cleaner 336723501 Locating Pins 336723556 Spark Plug 336723502 Sensor, Engine Oil 336723600 Choke Connector 336723503 Flange Bolt M6×12 336723601...

  • Page 38: Parts List

    1. Model No. ,Rev. Level and Serial No. and all of Purchase specifications shown on the Model No./Serial Contact the FIRMAN Service Center and FIRMAN No. plate. will troubleshoot any issue via phone or e-mail. 2. Parts number or numbers as shown in the If the problem is not corrected by this method, Parts List section.
  • Page 39 Peoria, AZ 85381 Normal maintenance is not covered by this www.firmanpowerequipment.com warranty. We are FIRMAN POWER - And we are here for you. Other Exclusions Customer Service Desk - 1-844-347-6261(1-844-FIRMAN1) This warranty excludes: 6am PST(9am EST) until 8pm EST(5pm PST) –...
  • Page 40 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 41 This Emission Control Systems Warranty shall not cover any of the following: (a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc. (b) Diagnosis and inspection fees that do not result in eligible warranty service being performed. FIRMAN POWER EQUIPMENT INC. firmangenerators@sumec-na.com www.firmanpowerequipment.com...
  • Page 42 Firman Power Equipment Inc. 8716 West Ludlow Dr. Suite #6 Peoria, AZ 85381 www.firmanpowerequipment.com P/N:336745464 Rev 0 2...
