TRANSIT ULTIMATE | INSTALLATION GUIDE
INSTALLATION
2.3.2 WALL MOUNTING
The Wall Mounting Set is supplied with the TRANSIT Ultimate reader. When the Wall
Mounting Set is assembled mount it to the wall (or to the Pole Mounting Set) based
on the dimensions in Figure 3. The TRANSIT Ultimate can be "aimed" with the Wall
Mounting Set and when the bolts are tightened, it will stay in place.

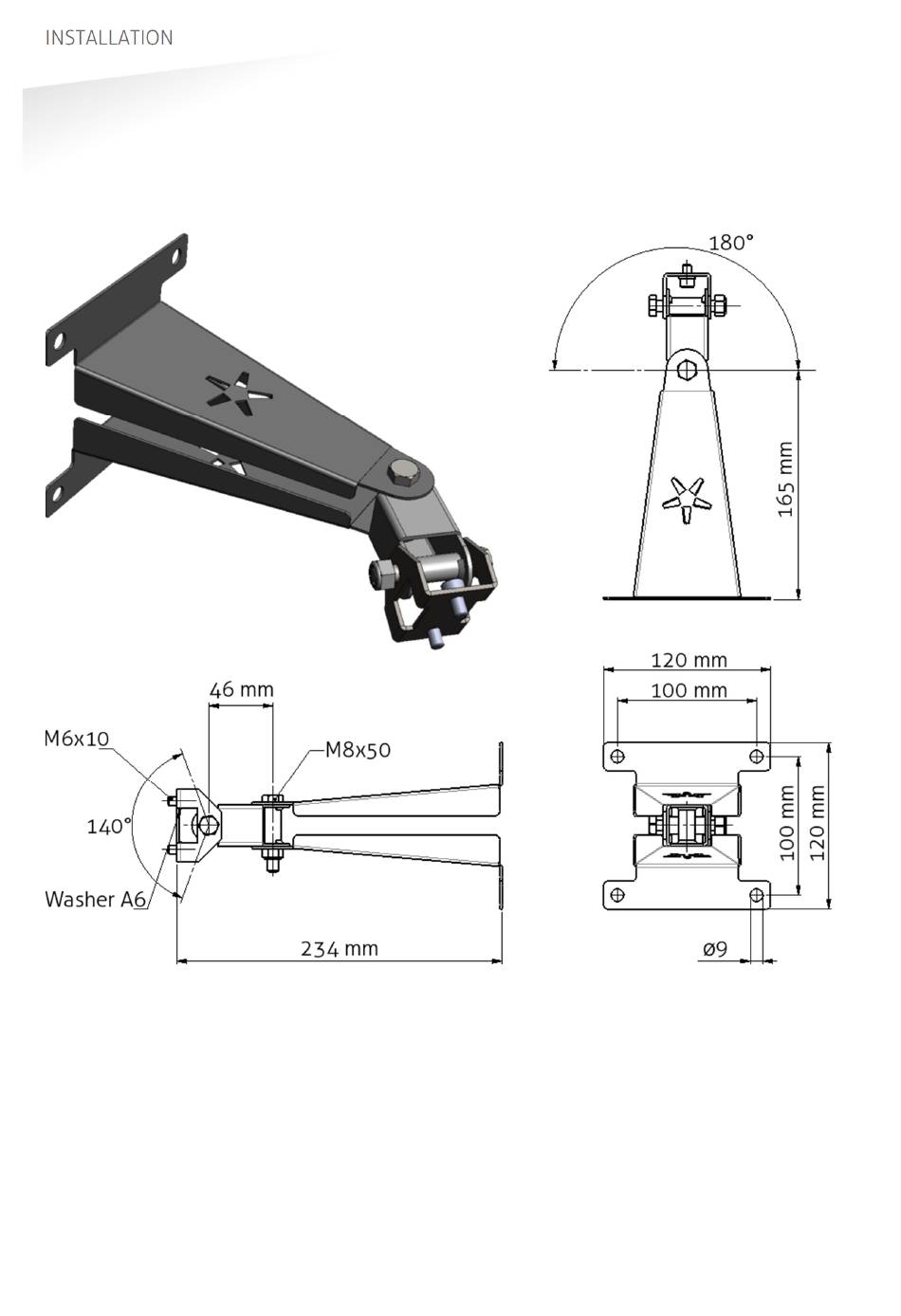

Figure 3: Wall Mounting Set
7/36
