TRANSIT ULTIMATE | INSTALLATION GUIDE
INSTALLATION
2.3
MOUNTING INSTRUCTIONS
See the following chapters for details about the dimensions of the reader and the
mounting brackets and the locations of the mounting positions.
2.3.1 TRANSIT ULTIMATE DIMENSIONS

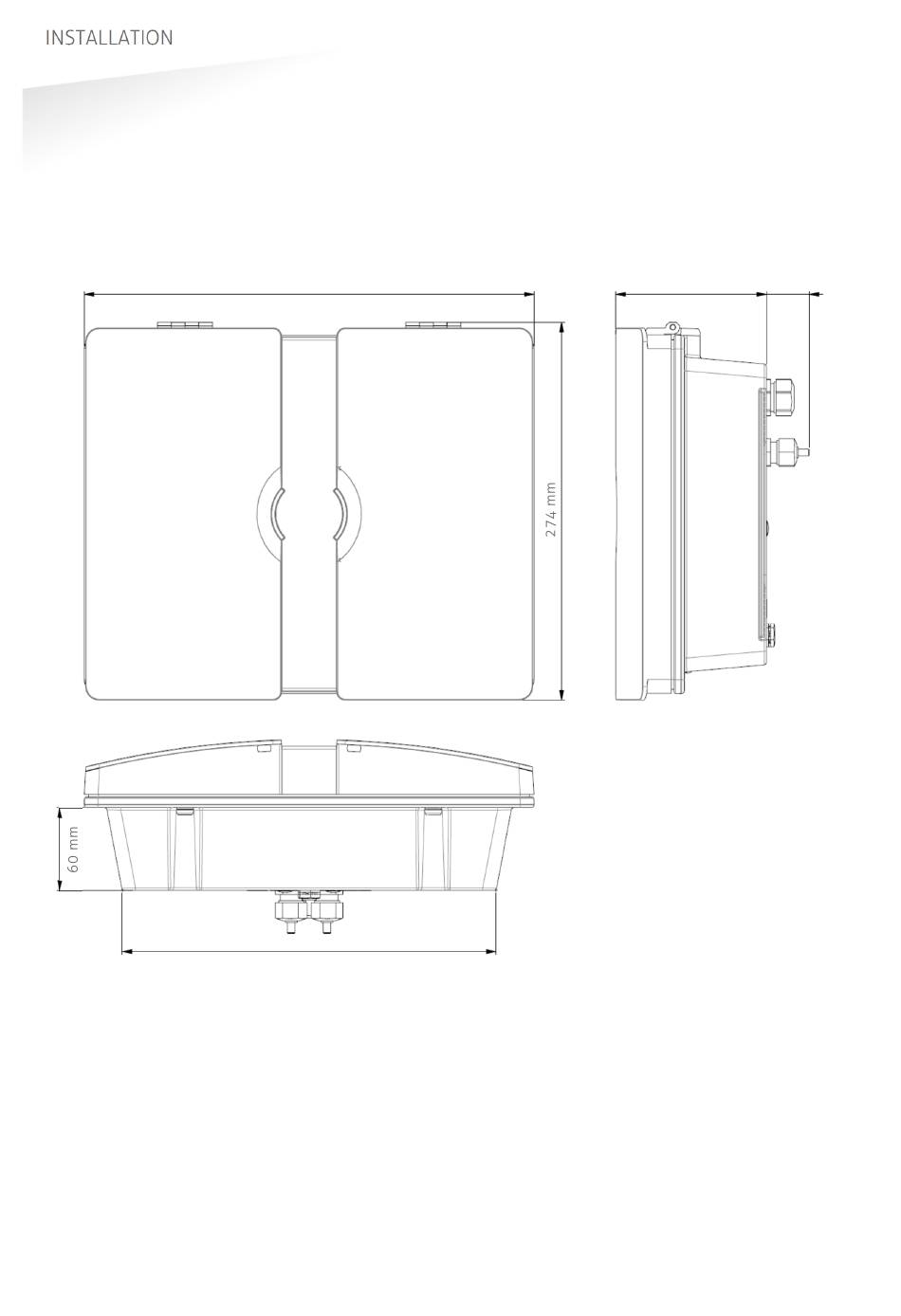

The picture below shows the dimensions of the TRANSIT Ultimate.
All dimensions are in mm.
326 mm
109 mm
31
271 mm
Figure 2: Dimensions TRANSIT Ultimate
6/36
