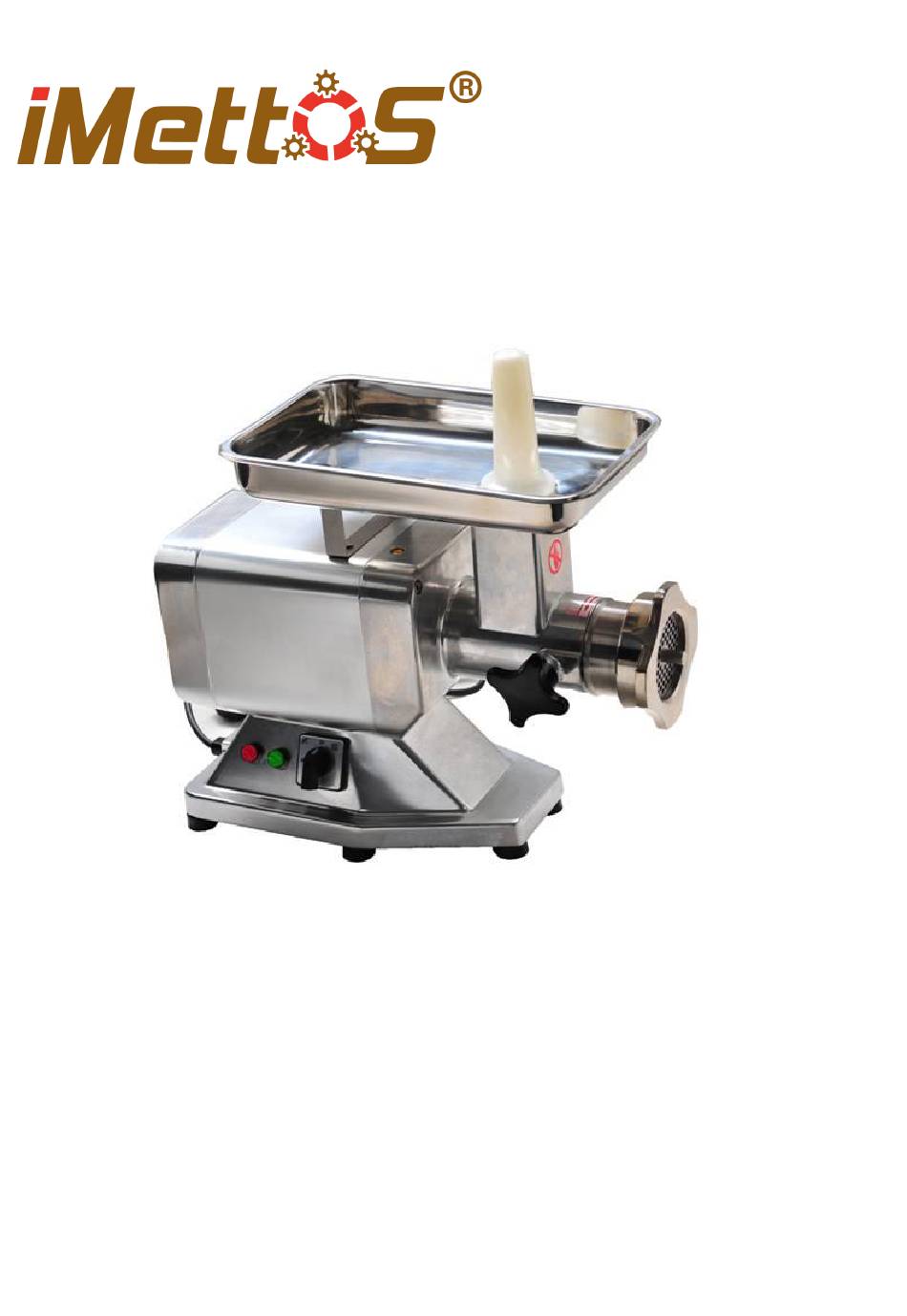

Meat Mincer Instruction Manual Model: HM-12/HM-22/HM-22A Please read this instruction manual carefully before operating this equipment...
Page 2
Safety Tips Read this instruction manual before using and keep them available at all times! INTRODUCTION This instruction manual gives the customer all the necessary information about the appliance and the manufacturing standards applied, as well as all instructions for use and maintenance so that the appliance can be used correctly maintaining its efficiency in time.
4.3 WIRING DIAGRAMS HM-12/HM-22/HM-22A/HM-22B……………………………….5 4.4 FUNCTIONAL CHECK…………………………………………………….……………..5-6 5 USING THE APPLIANCE……………………………………………………………………….7-8 5.1 CONTROLS ……………………………………………………………………………….7 5.2 SETTING UP THE HM-12/HM-22/HM-22A/HM-22B FOR USE……………………...7 5.3 FILLING THE MINCER(see fig 5) …………………………………………..…………...7-8 6 REGULAR CLEANING……………………………………………………………………..…...8-9 6.1 GENERALITIES……………………………………………………………………………8 6.2 PROCEDURE TO FOLLOW FOR CLEANING THE APPLIANCE…………………….8-9 7 MAINTENANCE …………………………………………………………………………………..10...
Surfaces and avoid pulling the cable to remove the plug from the socket. If the HM-12/HM-22/HM-22A/HM-22B has a presumed malfunction or does not work correctly, do not use it or repair it. Contact the “Service Centre”. ...
Easy to handle 1.3.2 CONSTRUCTURE CHARACTERISTICS The HM-12/HM-22/HM-22A /HM-22Bis made from stainless and aluminum ally for food appliances. These metals are ideal regarding hygiene, they are also acid and salt resistant are also rust proof. 1.3.3 APPLIANCE COMPONENTS FIG 1-General view of the HM-12/HM-22/HM-22A/HM-22B...
4 INSTALLING THE APPLIANCE 4.1 APPLIANCE LOCATION 4.1.1 The work surface where the HM-12/HM-22/HM-22A/HM-22B will be located must be suitable for the size of the appliance, please refer to the measurements given in FIG 2.The work surface must be level and dry and at a height of 80 cm from the ground with a temperature between 5℃ and 35℃.
4-stop button (red) 3-Reverse button “turn over” 5-start button (green) 5.2 SETTING UP THE HM-12/HM-22/HM-22A /HM-22B FOR USE N.B before using the appliance makes sure all the components that can be removed are secured in position (see fig 6) ...
To clean the main structure use a damp cloth remember to frequently rinse The grater roller mounted on the HM-12/HM-22/HM-22A/HM-22B should be brushed cleaned. Carefully clean the punched holes. Make sure all the components are completely dry before remounting them.
Page 10
1-knob nut 2-disk 3-blade 4-screw feeder 5-mincer block FIG 7-Diagram of HM-12/HM-22/HM-22A /HM-22B stripped for cleaning...
MAINTENANCE 7.1 GENERALITIES Before servicing the appliance you must disconnect the electricity supply plug isolating the appliance from the main power source. 7.2 FOOT SUPPORTS In time the foot supports can deteriorate causing instability. If this is the case replaces them. 7.3 POWER SUPPLY CABLE Periodically check wear in the power cable and if necessary contact the “SERVICE CENTRE”...
10.Warranty iMettos warrants to the original purchaser of every new product, under normal and proper use and maintenance service as specified by iMettos and upon proper installation and start-up in accordance with the instruction packet supplied with each unit. iMettos’...
