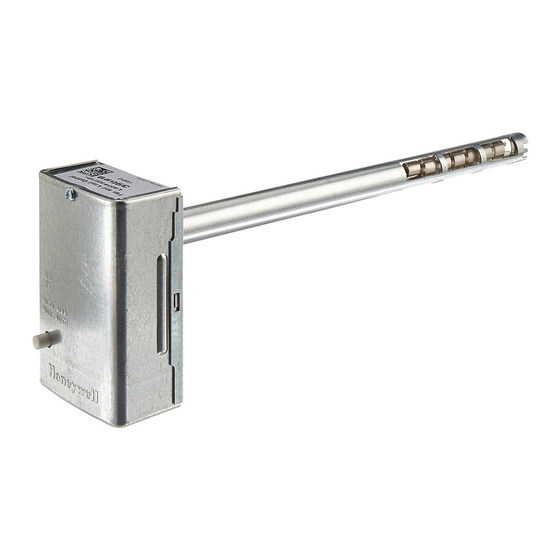

SUPER TRADELINE L4064B
Universal Combination Fan and Limit Controllers
APPLICATION
The L4064B controls the on and off operation of the
heating unit's fan motor and provides high limit control
of the main burner. It is suitable for all types of forced
air heating systems.
The L4064B's bimetal sensing element turns fan on
and off according to plenum temperature.
The L4064B has a manual switch to provide
continuous fan operation, mounting adapters for
replacing competitive devices, adapters for wiring
convenience, and a strain relief bushing for protecting
the wiring from damage due to field abuse.
Limit contacts are suitable for line voltage, low
voltage or millivoltage circuits.
The fan-on timing can vary depending on applied
voltage and switch ambient.
INSTALLATION
When installing this product...
1. Read these instructions carefully. Failure to
follow them could damage the product or cause a
hazardous condition.
2. Check the ratings given in the instructions and
on the product to make sure the product is suitable
for your application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
!
WARNING
Failure to remove brass jumper, if limit switch is
in low voltage circuit, can cause electrical shock
hazard or damage low voltage controls.
CAUTION
!
1. Disconnect power supply before connecting
wiring to prevent electrical shock or equipment
damage.
2. When connecting cable or conduit to control,
avoid straining the control case.
Follow furnace or burner manufacturer's
instructions, if available. The L4064B has a
maximum switch temperature of 190
maximum element temperature of 350
Do not exceed these temperatures or the following
electrical ratings (amperes):
FAN
Full Load
14
Locked Rotor
84
Pilot Duty: 2 A at 24 Vac; 0.25 A at 0.25 to 12 Vdc.
Maximum Combined Connected Load: 2000 VA.
75
O
C (167
O
F) (min.) field wiring required. Wiring must
conform to NEC Class 1 requirements.
O
F (88
O
C),
O
F (177
240 Vac
120 Vac
FAN
LIMIT
8
7
48
42
LOCATION
If this is a replacement installation, locate the
L4064 in the same location as the control being
replaced. Sensing tube length should be same as
old control. If this is a new installation, the element
should be installed only by a trained, experienced
service technician according to the furnace
manufacturer's instructions. The element must not
touch any internal part of the furnace.
NOTE:
The electrical rating is at maximum switch
temperature of 190
temperature exceeds 190
insulating material or a mounting bracket must be
used.
MOUNTING
The device may be mounted either on the
plenum surface or with a bracket (rigid or swivel).
SURFACE MOUNTING
Hole in plenum should be just large enough to
accommodate the 3/4 in. (19.1 mm) diameter
element tube, Fig. 1. For adequate clearance, a
13/16 in. (20.6 mm) diameter hole is
reccomended.
1. Remove cover by squeezing sides and
pulling off. Insert element in plenum and mark
location of mounting holes. Make sure the case is
snug against the plenum before marking the
mounting screws.
2. Punch or drill holes for mounting screws.
3. Place insulation between plenum and case if
necessary.
4. Fasten controller securely with mounting
screws.
O
C).
LIMIT
4
54

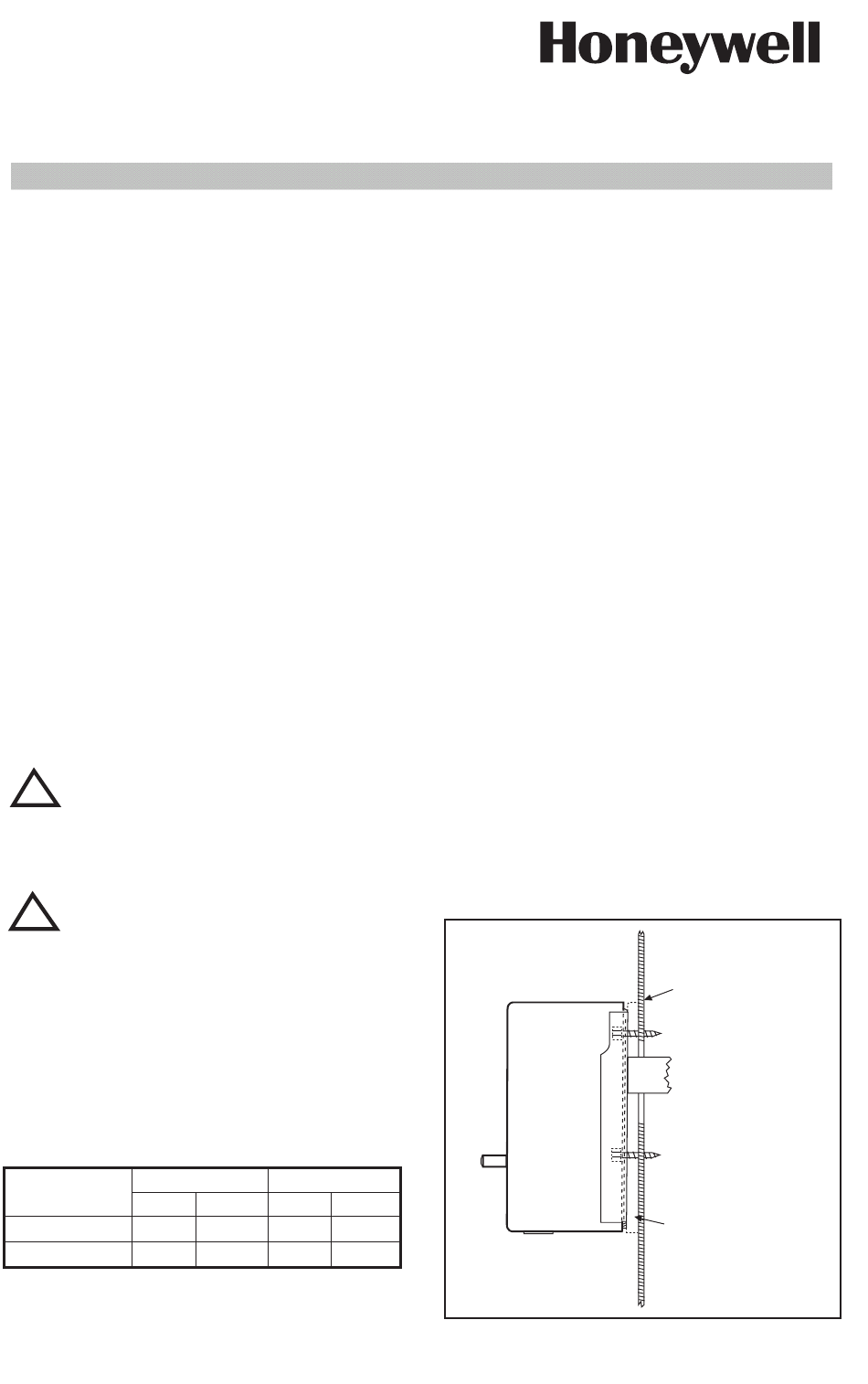

Fig. 1 - Surface mounting requires a hole 13/16
in. (20.6 mm) diameter for element insertion.
PRODUCT DATA
O
F (88
O
C). If plenum surface
O
F (88
O
C), heat
FURNACE
PLENUM
ADD HEAT
INSULATING
MATERIAL IF
NEEDED
11,219
