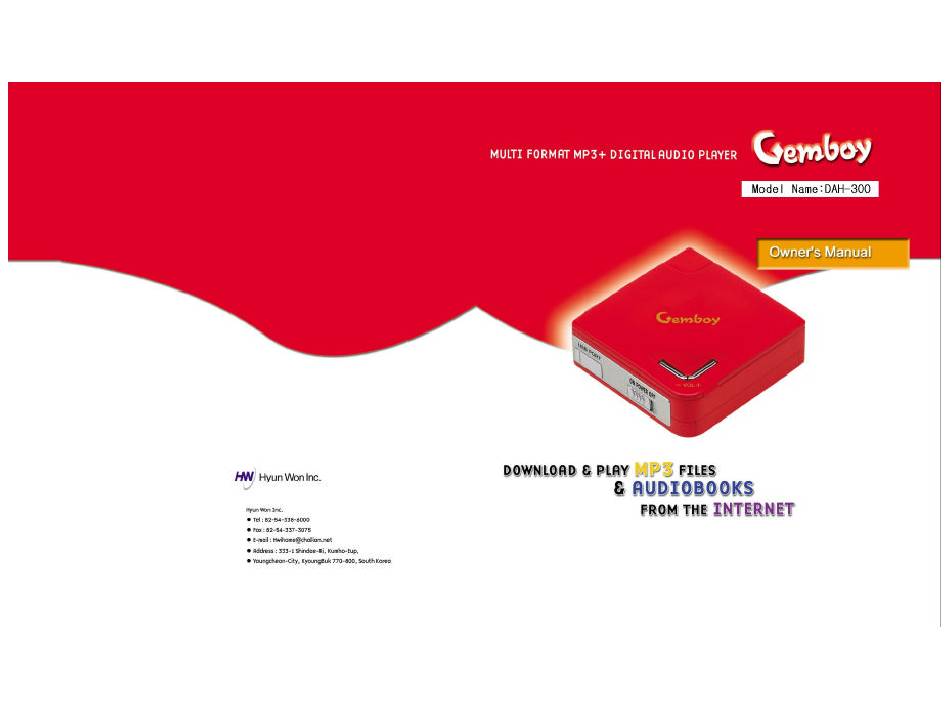

Hyun Won Gemboy DAH-300 Owner's Manual

Multi format mp3+ digital audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemboy DAH-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyun Won Gemboy DAH-300

Summary of Contents for Hyun Won Gemboy DAH-300

  • Page 2: Table Of Contents

    User’s Manual ( Model Name : DAH-300 Brand Name : Hyun Won ) FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: User's Manual

    MultiMediaCardTM(MMC) flash memory slot. The MPgod also was designed with a programmable, upgradeable Digital Signal Processor (DSP) to support new audio formats and digital rights management systems. Please check the Hyun Won website at www.m-any.com for the latest software upgrades and accessories.

  • Page 4: Installing Software(Mpgod Explorer)

    4. Using the included software, download music to your computer from the Internet (or convert it to digital audio format from an existing CD). Using the MPgod Explorer, navigate to the folder that contains your music files. Select the files you wish to transfer and drag them to the bottom portion of the window. Click on the transfer button located in the bottom right hand corner of the window.
  • Page 5 2) Click on the Next button. The following page will display 3) Enter your Name and the Company name and click on the Next button. The following page will display 4) Choose the directory for the MPgod Explorer and click on the Next button. The following page will display...

  • Page 6: Using The Software(Mpgod Explorer)

    5) Select the program folder and click on the next button 6) Verify the Setup details and click on the next button. Once you have done these steps, it will complete the installation and bring you back to the main page displayed. 7) Once the installation of the MPgod Explorer finishes, click the shortcut icon on the desktop or click on the Windows Start menu, then Programs, then the shortcut to run the MPgod Explorer.
  • Page 7 A. File Selector: This enables you to view files by type. B. File List Window: This window displays the files contained in the given folder enabling you to selectively download files to flash memory and/or MMC memory. C. Memory Contents Window: This window enables you to check the file title, size, type and download status of the MMC and on-board flash memories.

  • Page 8: How To Download Files To Mpgod

    Uploads of the selected files on the player memory to the selected PC folder Deletes selected files on the selected memory Formats selected memory Note: This will erase all files on the selected memory. Normal Format: The "Normal Format" is, in essence, a quick 'clearing' of all the data on the memory card.
  • Page 9 Current Button Buttons Operation to be expected Remark Mode STOP Stop Press power off Play Click entering into Stop mode Stop Click selecting next track display on LCD display on LCD Play Click selecting next track Press search along tracks at 2X speed Press entering into Stop mode from last track...

  • Page 10: How To Use The Voice Recording Function

    1. Total title # / Current title order 2. Currently set Equalizer Mode 3. Hold Status 4. Indication of MMC titles play 5. Title name, current Mode(Play, Pause, Stop, FF, REW) 6. Indication of Voice Recording 7. Played time of current title 8.
  • Page 11 press REC button briefly, then the selected file will be played for 10 sec.. Press REC button briefly again while playing, the selected file will be erased. If the REC Button is not pressed or a button other than REC button is pressed while playing, the played file is not erased and mode changes to Stop automatically.

  • Page 12: How To Upgrade Operating System

    You can also convert WAV to ADP files during downloading or uploading when device is connected. You can also convert ADP to WAV files directly when uploading ADP files from the on-board memory to the PC using the dialog window below. Select the ADP file on the player to be uploaded and the folder the file to be uploaded into.

  • Page 13: Handling And Storing Instruction

    -------------------------------------------------------- Handling and Storing Instruction Please note the following information when using the MPgod : Unit may be damaged if struck or crushed. Keep out of direct sunlight. Keep away from dust and dirt. Clean with a dry, soft cloth. Store in a cool dry place.

  • Page 14: Installing The Usb Driver

    Manager. (Hardware conflicted with other hardware shows “!” or “?” mark in front of the device name.) If you can find conflict between hardware, Delete the conflicted hardware and reboot computer. Please visit the Hyun Won website at www.m-any.com for the latest updates and software upgrades for the MPgod...

  • Page 15: Specifications

    -------------------------------------------------------- Specifications Necklace and Flip type Digital Audio Player - Size (WxHxD) : 56x56x20mm - Weight (w/o battery) : 50 g - Memory(on-board) : 64 MB - Memory Expansible with MMC Card - Power Supply : 1 x AAA Battery - Earphone Output : 7 mW max.
