Specifi Cations; Intended Usage; Operator Orientation; Serial Number Location (Typical) - Titan Implement 5100 Series Operation And Parts Manual

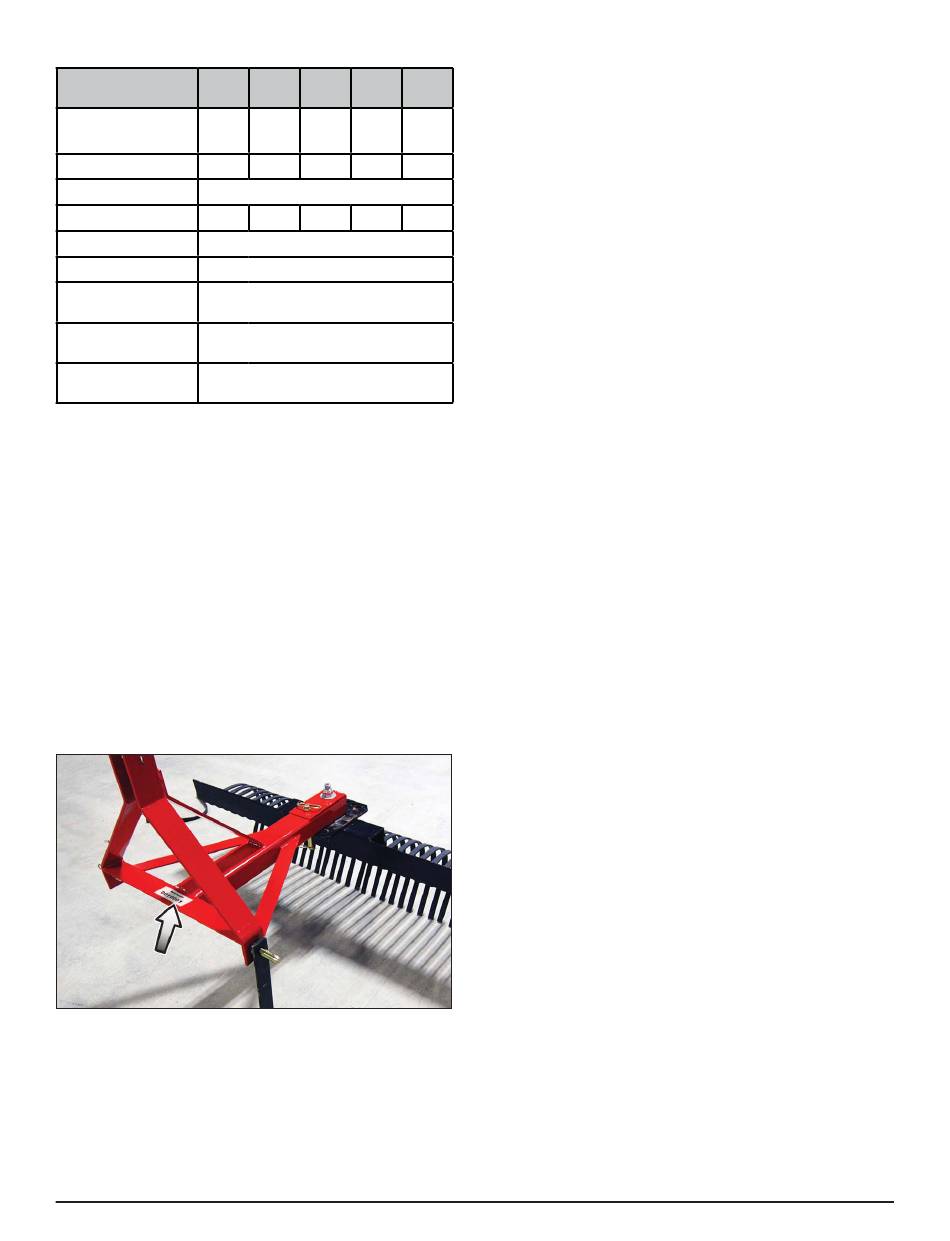

1.3 Specifications
Model 5104 5105 5106 5107 5108
Horsepower
15-45 20-45 25-45 30-45 35-45
Required
Working Width 48"
Tines per Foot
Weight (Lbs.) 158
Mainframe
Angle Adjustment
A-Frame Material
Quick Hitch
Hitch
Specifi cations subject to change without notice.

1.4 Intended Usage

Do not use this landscape rake for any other purpose
than its intended use of loosening, leveling, and
clearing soil.

1.5 Operator Orientation

The directions left, right, front, and rear, as mentioned
throughout this manual, are as seen from the tractor
operator's seat and facing in the direction of travel.

1.6 Serial Number Location (Typical)

The serial number decal is located on the front of the
frame.
Model Number ______________________________
Serial Number ______________________________
Titan Implement, LLC
(423) 334-0012
60" 72" 84" 96"
6
180 229 251 285
4" x 4" Angle
5 Position, Fwd & Rev
3/8"
YES
CAT I

1.7 Product Improvements

Because Titan Implement, LLC maintains an ongoing
program of product improvement, we reserve the
right to make improvements in design or changes in
specifi cations without incurring any obligation to install
them on units previously sold.
1.8 Disposal of Equipment at End of Useful
Life
The Titan Implement, LLC landscape rake has been
designed for the specifi c purpose of moving material for
loosening, leveling, and clearing soil. When this unit
is no longer capable of doing its designed purpose, it
should be dismantled and scrapped. Do not use any
materials or components from this unit for any other
purpose.

1.9 Unanswered Questions

If you have any questions not answered in this manual,
require additional copies, or the manual is damaged,
please contact your dealer or:
Titan Implement, LLC
P.O. Box 649
232 Industrial Lane
Decatur, TN 37322
Phone: (423) 334-0012
Fax: (423) 334-0023
The manual is also available for download at:
www.titanimplement.com
1. Select "Products".
2. Select "Landscape Rakes".
3. Click the "Specs., Manuals, Warranty" tab.
4. Click "Download Manual".
