Summary of Contents for Titan Implement 1800 Series

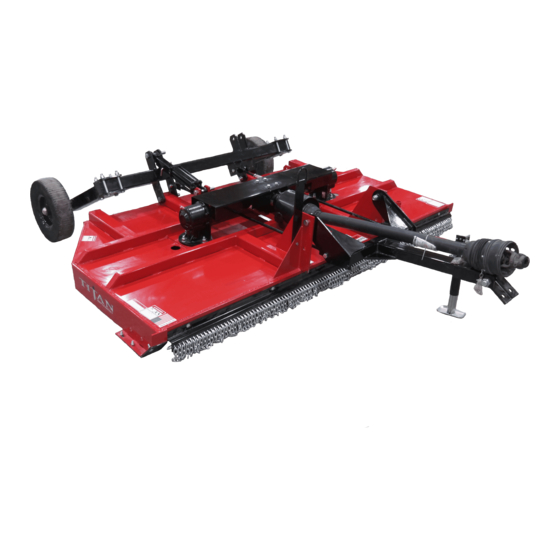

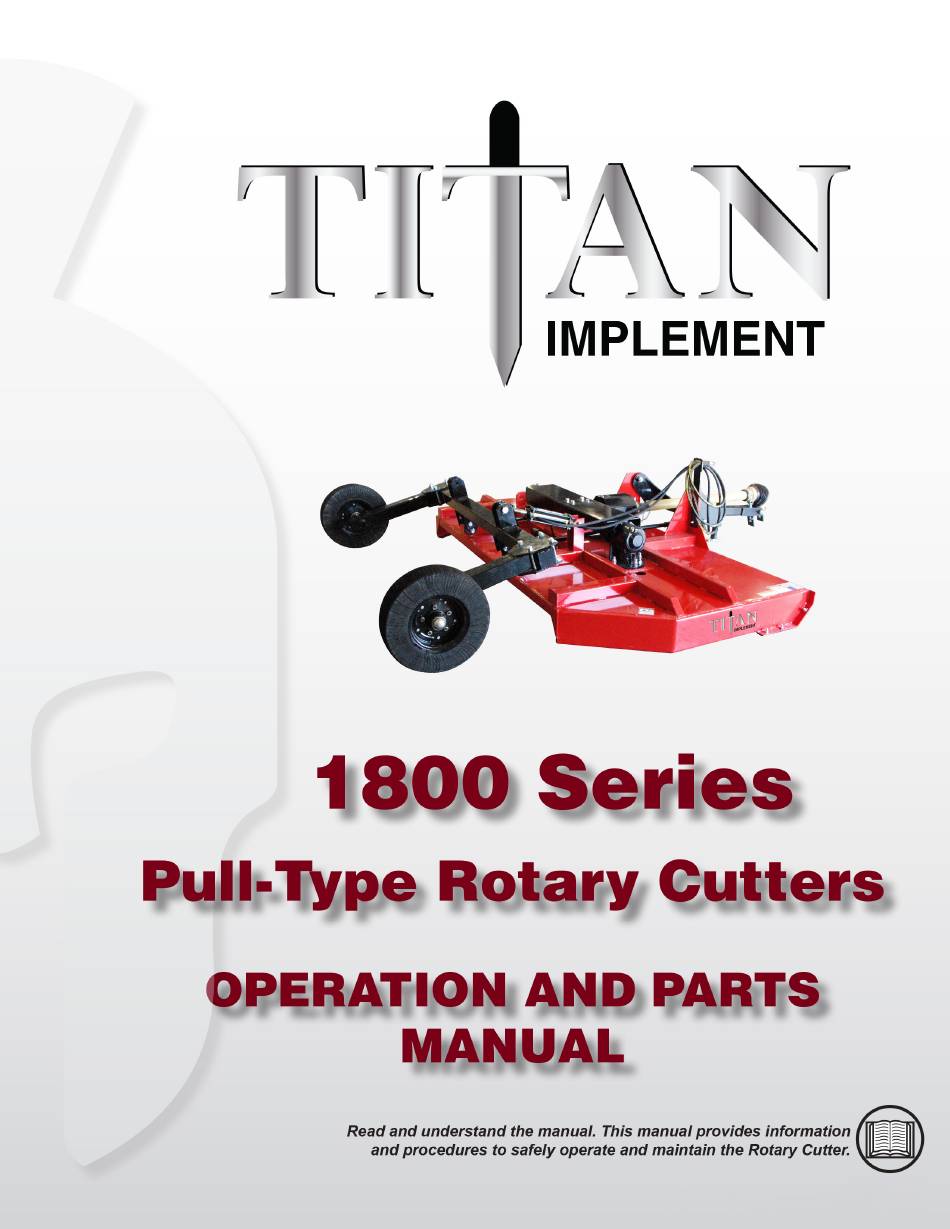

- Page 3 The above equipment and Operator’s Manual have been received by me, and I have been thoroughly instructed as to care, adjustments, safe operation, and applicable warranty policy. Date__________________ Owner’s Signature_________________________________________ Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
- Page 5 Date Purchased:____________________________ Dealer Salesperson:___________________________ Dealership Name:___________________________ Dealership Location:___________________________ Mail to: Titan Implement P.O. Box 649 Decatur, TN 37322 Or Fax to: (423) 334-0023 Or E-mail to: info@titanimplement.com Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
-
Page 7: Table Of Contents
Attaching to Tractor ....33 13.13 Driveline Components ....68 Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 8: Introduction
Do not allow operating, manufactured to meet the needs of discerning users. maintaining, adjusting, or cleaning of this rotary The Titan Implement rotary cutter is designed to cut cutter until the user has read this manual and has grass, weeds, and brush. -
Page 9: Intended Usage
Life 1.6 Serial Number Location (Typical) The Titan Implement, LLC rotary cutter has been designed for the specific purpose of cutting grass, The model number and serial number decals are weeds, and brush. When this unit is no longer located to the left of the gearbox. -
Page 10: Safety
The information, specifications, and illustrations in this manual are based on the information that was available at the time this material was written and can change at any time without notice. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 11: Safety Icon Nomenclature
Crush hazard (chock Think safety SAFETY! wheels) Transmission in park Crush hazard (foot) Use proper support Defective or broken part Use proper tools Entanglement hazard Explosive separation hazard Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 12: General Safety Instruction
To prevent personal injury or even death, be sure you read and understand If the rotary cutter has been altered in any way from all of the instructions in this manual and other the original design, Titan Implement does not accept related equipment manuals! Titan any liability for injury or warranty. -
Page 13: Training
If you do not understand any information in this Hearing Loss manual, see your dealer or contact Titan Implement Prolonged Exposure To Loud Noise May before proceeding. Cause Permanent Hearing Loss! Working... -
Page 14: Federal Laws And Regulations
Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102). 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021... -
Page 15: Sign-Off Form
This sign-off sheet is provided for your records to show that all personnel who will be working with the Titan Implement, LLC follows the general Safety equipment have read and understand the information in Standards specified by the Farm Equipment this Operator’s Manual and Parts Book and have been... -
Page 16: Operation
Refer to the Service and Maintenance Section for safety recommendations related to maintaining the rotary cutter. All applicable safety recommendations in other sections should also be followed. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 17: Safety Signs And Instructional
5. Replacement parts must have replacement labels attached during installation and/or before the rotary cutter is used. 6. Labels are available from your authorized dealer or from Titan Implement at no charge. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012... -
Page 18: Safety Sign Locations
Thrown Object Hazard WARNING Safety Shields DANGER Rotating Blades Hazard DANGER Rotating Driveline, Keep Away, Outer Shield Tube WARNING No Riders SERIAL Serial No. INSTRUCTIONAL Made In the USA 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 19: Cutter Deck Safety Signs
• Support mower securely before working beneath unit. Transport with clean reflectors, SMV and working lights • as required by federal, state, and local laws. TI-00005 Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... - Page 20 WARNING NO RIDERS TI-00074 Serial Number 0010001 TI-00134b MADE IN THE USA WITH U.S. & IMPORTED PARTS TI-00008 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
-
Page 21: Nomenclature
Front and rear chain discharge shields are optional. 4.1.1 Owner/Operator Manual Storage Always store the Owner/Operator manual and other operating materials in the document storage tube. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 22: Nomenclature
Cutter Deck Tailwheel Tailwheel Frame Driveline Shield Center Gearbox Shield Leveling Rods 1 or 2 Raise/Lower Hydraulic Cylinder Hydraulic Hoses Hydraulic Hose Rack Document Storage Tube Jack 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 23: Assembly
3/8” Allen wrench 5.2 Assembly Procedure 1. Verify that all parts shown are included. If any parts are missing, contact your Titan Implement dealer. Model 1708P Note: The hitch bolts are fully tightened for shipping purposes. They should be slightly loosened to allow the hitch to pivot. - Page 24 10. Remove the two retaining bolts from the slip clutch. Note: The slip clutch bolts are offset as shown to allow socket clearance to the retaining bolts. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
- Page 25 If the retaining bolts are not present, the driveline may separate from the gearbox, causing serious injury or death. Do not omit the retaining bolts. Tighten the locknuts securely. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
- Page 26 Note: The 1708P has one leveling rod, the 1808P and 1810P have two. Note: Steps 21-26 are for the 1808P & 1810P only. For the 1708P, skip to Step 27. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
- Page 27 Note: The 1708P has one leveling rod, the 1808P and 1810P have two. a. Remove the bolt, nut, and spacer, if applicable, from both ends of the rods. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
- Page 28 Tighten the jam nut securely. Model 1708P Model 1708P Model 1808P & 1810P Model 1810P 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
-
Page 29: Installation And Removal Of Driveline To Tractor Pto
Route as this will release the driveline. the hoses through the rack. 5. Attach the safety chain on the driveline guard to the tractor. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 30: Checking The Driveline Length
If the driveline is too driveline shielding is in place and in good condition. short, please call your Titan Implement dealer for a Note: Do not use the rotary cutter if proper driveline longer driveline. If the driveline is too long, follow the engagement cannot be obtained through these instructions for shortening the driveline. -
Page 31: Operation
Never allow children to operate equipment. • To reduce the risk of grass fires, do not operate the cutter on a tractor with an underframe exhaust. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 32: Tractor Safety Devices
8”. PTO damage may occur if these dimensions vary assistance if the implement driveline does not match more than 1”. the Tractor PTO. 14” 8” Tractor PTO Drawbar Ground Level TI-00177 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 33: Attaching To Tractor
9. Attach the safety chain on the driveline guard to the 8. Remove the hitch pin. tractor. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 34: Setting The Rotary Cutter
3. Make sure that the right and left leveling rods are equally tight and then tighten the jam nuts. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 35: Initial Setup Checklist
Refer to “9.5 Blade tailwheel support bolts are Servicing” on page 43. tight. Check the cutting height. Adjust if needed. Refer to “6.5.2 Setting the Cutting Height” on page 34. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 36: Machine Break-In
Do not use the rotary cutter if it needs repairs of any type. Make sure the driveline U-joints, and slip joints are greased. Refer to “9.3 Driveline Lubrication” on page 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 37: Operating Safety
7. Stay alert and watch for trees, low hanging limbs, power lines, and other overhead obstacles and solid ground objects while you are operating. Use care to avoid hitting these items. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 38: Optional Chain Shielding
3. Mowing area has been inspected and foreign materials and debris have been removed. 4. Passersby are inside an enclosed vehicle. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 39: Transporting
2. Do not travel faster than 15 mph when transporting. Only transport using a tractor. Always slow down for rough terrain and when cornering. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 40: Storage
8. Disconnect the cutter drive line and secure it up off the ground. 9. Use the jack to raise the cutter hitch to the height needed to disconnect the clevis from the drawbar. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 41: Service And Maintenance
The manufacturer will not accept responsibility for damages as a result of the use of unapproved parts. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 42: Greasing
4. Apply grease to the U-joint grease zerk. 5. Repeat for the U-joint at the rear of the driveline. 6. Apply grease to the U-joint on both of the shock couplers. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 43: Gearbox Lubrication
Always replace blades in pairs. through the inspection hole in the deck of the mower near the gearbox. 1/2” MAXIMUM ORIGINAL BLADE EDGE TI-00063 9.5.2 Blade Installation 9.6 Blade Carrier Removal Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 44: Blade Carrier Removal
Initial spring length is shown in the chart. 4. Retighten the nut to 700 ft. lbs. 5. Install the cotter pin and spread the tangs. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 45: Bolt Torque Requirements
9.11 Welding Repairs Before performing any type of welding repair to the rotary cutter, contact Titan Implement for approval. Repair welding must be done with care and with procedures that may be beyond the capabilities of the ordinary welder. -
Page 46: Service Record
Make sure the slip clutch is functioning properly. Refer to”9.8 Slip Clutch Operational Check” on page 44. Inspect the hitch and clevis for wear and damage. Wash the rotary cutter. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 47: Troubleshooting
Replace lockwasher. Refer to “9.5 Blade Servicing” on page 43. Gearbox noisy. Low lubricant level. Add grease. Refer to “9.4 Gearbox Lubrication” on page 43. Worn bearing. Replace bearing. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... - Page 48 Replace shields. Driveline twisted. Overtorqued. Replace driveline. Caution operator not to strike ground with blades. Not maintaining correct PTO speed. Replace driveline. Maintain 540 RPM PTO speed. 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
-
Page 49: Specifications
125 HP Outboard Gearboxes 100 HP 100 HP Wheels Laminated Laminated Hubs Greaseable Greaseable Gearbox 5 Year Limited 5 Year Limited Warranty Specifications subject to change without notice. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 50: Bolt Torque
No Marking 6 Radial Lines Grade 5 Grade 2 Grade 8 N·m ft.lbs. N·m ft.lbs. N·m ft.lbs. 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1320 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 51: Warranty
Tennessee, Southern Division, and (c) waive any objection it may have as to any such action or proceeding brought in such court that such court is an inconvenient forum. Nothing herein shall limit the right of Purchaser or Titan Implement, LLC (or the right of any permitted successor or assign of either) to bring proceedings against the other in the courts of any other jurisdiction wherein any assets of such other party may be located. - Page 53 IMPLEMENT WARRANTY REGISTRATION FORM ROTARY CUTTERS THIS REGISTRATION FORM MUST BE ON FILE WITH TITAN IMPLEMENT, LLC. WITHIN 30 DAYS OF DELIVERY TO PURCHASER, OR WARRANTY CLAIM WILL NOT BE HONORED. PLEASE RETURN COMPLETED FORM BY E-MAIL, FAX, OR MAIL: E-MAIL: info@titanimplement.com...
-
Page 55: Parts
13. Parts Replacement parts are available from your authorized Dealer Parts Department or from Titan Implement. The following pages contain a list of serviceable parts for the Titan Implement pull-type Rotary cutters. 13.1 Hitch Assembly Item Part Number Description Qty. -
Page 56: Deck Assembly
180045 Decals - Yellow (1808P) 8’ Pull Type Deck Only with 180046 Decals - Blue (1808P) 8’ Pull Type Deck Only with 180047 Decals - Grey (1808P) 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 57: Tailwheel Assembly
Zerk Fitting 110022 Laminated Wheel (1708P) 180040 6x9 Laminated Wheel (1808P, 1810P) Wheel Bolt, Lockwasher & Locknut 110023 Kit, 5/16-18 x 3/4” 150031 Wheel Hub, Heavy Duty Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 58: Leveling Rods
Leveling Rod Bolt & Locknut Kit, 5/8" x 4” (1708P) 140004 Leveling Rod Bolt & Locknut Kit, 5/8-11 x 5” (1808P, 1810P) 180029 Leveling Rod Spacer (1808P, 1810P) 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 59: Hydraulic System
Hydraulic Hose Support Bracket Hydraulic Hose Support Bracket 180034 Bolt & Locknut Kit, 3/8-16 x 1-1/2” 170023 Hydraulic Cylinder Pin (1708P) 170024 Hydraulic Cylinder Pin Clip (1708P) Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 60: Driveline Assembly
13.6 Driveline Assembly Item Part Number Description Qty. 180041 Driveline, Series 6, Slip Clutch, CV 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 61: Driveline Detail
1006065 Safety Chains Torque Limiter, 2 Friction Discs 1386018 (FD2) 1140001 Outer Decal 9490601 Wide Angle Guard Assembly 1140003 Inner Decal 1786803 Soft Cone 1140957B User’s Manual Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 62: Cutter Drive System
Driveline Shield Bolt & Lockwasher 110017 Kit, 1/2-13 x 1-1/2” 180002 Shock Coupler, 8’ 180003 Shock Coupler, 10’ 180004 Center Tee Gearbox Shield 110008 Gearbox Vent Plug 110009 Gearbox Drain Plug 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 63: Blade Assembly
Thread Nut, 1/8” Cotter Pin) T-48 Cutter Blades (8’)* T-48R Cutter Blades (8’) (Reverse)* T-60 Cutter Blades (10’)* T-60R Cutter Blades (10’) (Reverse)* * Sold in pairs only. Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 64: Optional Chain Shields
13.10 Optional Chain Shields Item Part Number Description Qty. CG-1708 Front & Rear Chain Shield Kit, 8’ (1708P, 1808P) CG-1810 Front & Rear Chain Shield Kit, 10’ (1810P) 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... -
Page 65: Gearbox Details
13.11 125 HP Gearbox Detail Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... - Page 66 13.11b 100 HP Gearbox Detail 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
-
Page 67: Connector Shaft Components
13.12 Connector Shaft Components Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021... -
Page 68: Driveline Components
13.13 Driveline Components 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012... - Page 69 NOTES Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
- Page 70 NOTES 1800 Series Pull Type Rotary Cutters Titan Implement, LLC January 2021 (423) 334-0012...
- Page 71 Titan Implement, LLC 1800 Series Pull Type Rotary Cutters (423) 334-0012 January 2021...
- Page 72 Notes Form No. PM-1800-PT Printed in USA 02/2021...
