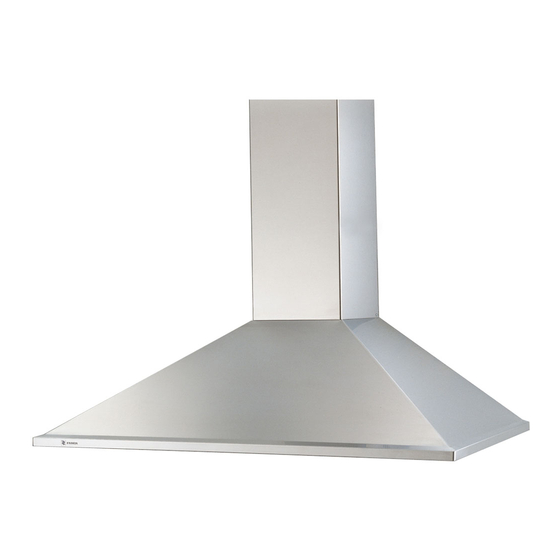

Summary of Contents for Faber Nova PRO

  • Page 1 Nova PRO Installation Instructions Use and Care Information Instructions d'installation Utilisez et d'entretien Instrucciones de instalación Información de uso y cuidado NOPR30SS600 NOPR36SS600...
  • Page 2 READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. b) A lways turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  • Page 3 When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. Ducted fans must always be vented to the outdoors. ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED. This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop.
  • Page 4 WARNING • Electrical ground is required on this rangehood. • If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding. • DO NOT ground to a gas pipe. • DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.
  • Page 5: Rangehood Dimensions

    RANGEHOOD DIMENSIONS Min. 24" Min. 30"...
  • Page 6: Main Parts

    MAIN PARTS Components Ref. Qty. Product Components Hood Body, complete with: Con- 7.2.1 7.2.1 trols, Lights, Filters, Blower. Telescopic Chimney comprising: 7.2.1 Upper Section Lower Section Cover Damper ø 5 " Ref. Qty. Installation Components Hood Body Fixing Brackets 7.2.1 Upper Chimney Section Fixing Brackets Screws 3/16"...
  • Page 7 Only for Ducted Venting Installation Install Damper that is included with the Hood before connecting to the ductwork. Remove the filters one at a time, supporting them with one hand and turning the safety knobs (pull and turn). Choose your ducting method Ducted Venting Options Installation Non Ducted - Recirculation Option 6"...
  • Page 8 Ducting Methods Ducted Venting Options Installation 6" The Electrical Connector must be removed first before converting the hood to Rear Ducting Rear mode. Rear Ducted Venting diagram ø 150 ø 120...
  • Page 9 Disconnect the Electrical Connectors by depressing the tabs with your hand and also using light force on one tab with a flat head screwdriver. Remove the 2 screws as shown in the image to the left from the top electrical cover and set aside.
  • Page 10 As shown in the image to the right use a flathead screwdriver to break out the rear electrical knockout. For a horizontal ducting installation the motor needs to be unsecured by first removing the 12 screws as shown. Once the screws are removed, extract the blower from the body of the Hood and position it so the transition opening is facing to the...
  • Page 11 Once the blower is in place re-install the 12 screws to fasten the motor to the Hood body. Fix the Supplied Cover with 3 screws 12e. Caution: Do not damage the Cable. As shown in the image to the right take the cable and cover removed previously and place back in original position and secure with the 2 screws...
  • Page 12: Installation Instructions

    Installation Instructions Draw a vertical line on the supporting wall as high as practical, at the center of the area in which the hood will be installed. Draw a horizontal line at where the bottom edge of the hood will be located as indicated in the figure that is a minimum of 24"...
  • Page 13 I = 6x Installation screws provided must be secured Fix the brackets 7.1 using the 12a screws with wall plugs (purchase separately). supplied in the hood body fixing holes as shown. 12.d Ø 5/16" Screw the two screws 12d supplied onto the brackets 7.1.
  • Page 14 Vertical or Horizontal Ducting Installation Install Roof or Wall L = 4x Cap purchased Fix the bracket separately. Con- 7.2.1 using the nect the 6" metal screws 12a ductwork to the supplied. Roof or Wall Cap and then attach ductwork. Slightly widen the two sides of the upper...
  • Page 15 Non-Ducted Recirculation Option Only for the recirculation version, connect the hood to the Air outlet. Bracket 7.2.1 with Fix the lower two screws 12a Fix the Ductless Diverter with two screws 12a supplied supplied as shown. as shown. Slightly widen the two sides of the upper chim- N = 4x...
  • Page 16 OPTIONAL WIRING BOX Direct Connect Wiring Box For Permanent wiring Installation-Use only Accessory sku # WIREBOX with Listed rangehood Wiring Box kit (purchased separately) sku # WIREBOX, manufactured by Faber. For Non-Ducted Recirculation Option Attach each charcoal filter to the...
  • Page 17: For Best Results

    USE AND CARE INFORMATION For Best Results Start the rangehood several minutes before cooking to develop proper airflow. Allow the rangehood to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. T1. Fan Off Button:Turn the blower Off. The fan can be operated by pressing any of the fan setting buttons.
  • Page 18: Cleaning Metal Grease Filters

    Cleaning metal grease filters The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.The metal grease filters should be cleaned frequently in hot detergent solution or washed in the dishwasher. Stainless steel cleaner should be used on stainless rangehoods.
  • Page 19: Wiring Diagram

    Wiring Diagram                    ...
  • Page 20 To obtain warranty service, contact the dealer from whom you purchased the range hood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at (508) 358-5353 for the name of a distributor in your area.
