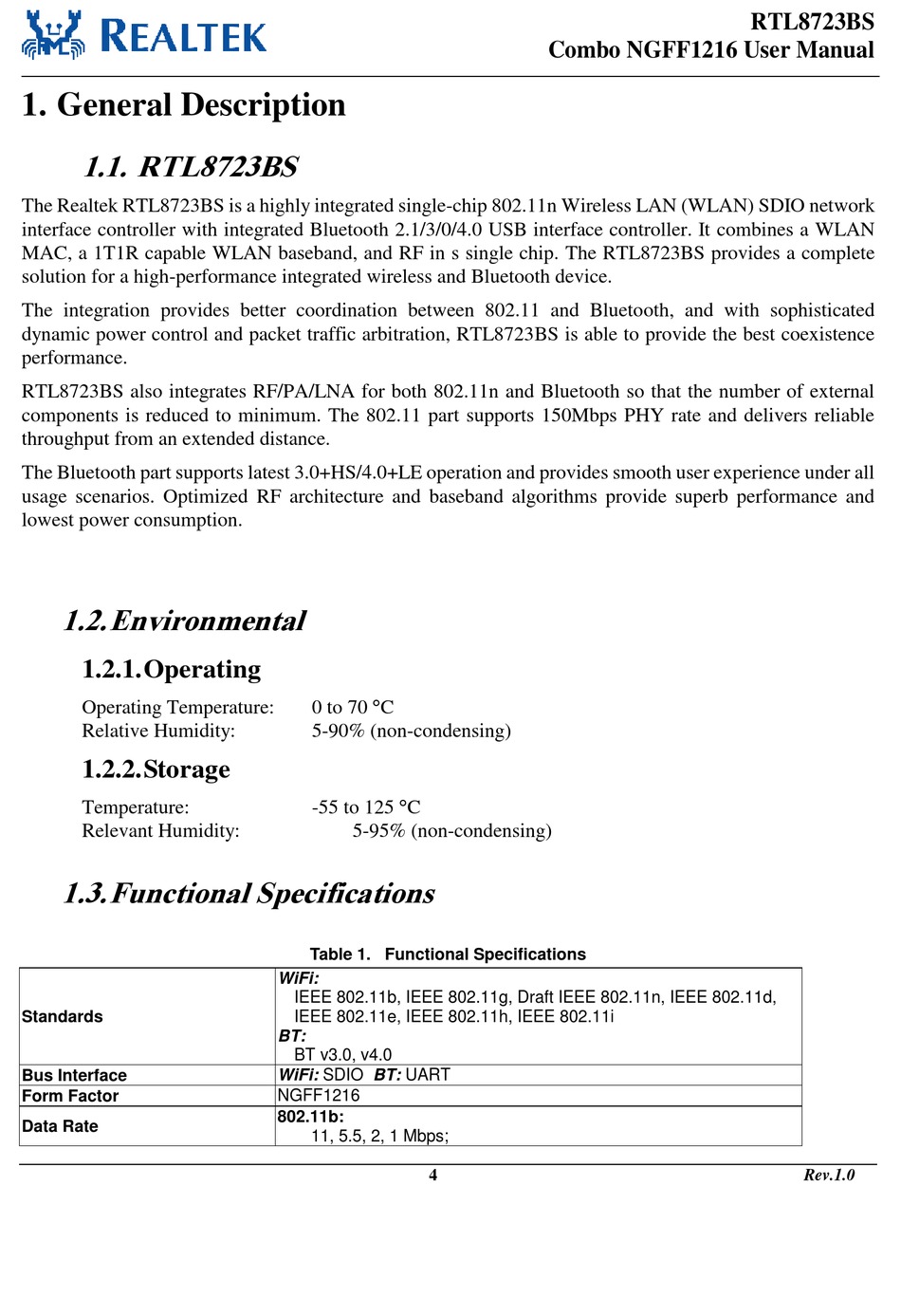

1. General Description

1.1. RTL8723BS

The Realtek RTL8723BS is a highly integrated single-chip 802.11n Wireless LAN (WLAN) SDIO network
interface controller with integrated Bluetooth 2.1/3/0/4.0 USB interface controller. It combines a WLAN
MAC, a 1T1R capable WLAN baseband, and RF in s single chip. The RTL8723BS provides a complete
solution for a high-performance integrated wireless and Bluetooth device.
The integration provides better coordination between 802.11 and Bluetooth, and with sophisticated
dynamic power control and packet traffic arbitration, RTL8723BS is able to provide the best coexistence
performance.
RTL8723BS also integrates RF/PA/LNA for both 802.11n and Bluetooth so that the number of external
components is reduced to minimum. The 802.11 part supports 150Mbps PHY rate and delivers reliable
throughput from an extended distance.
The Bluetooth part supports latest 3.0+HS/4.0+LE operation and provides smooth user experience under all
usage scenarios. Optimized RF architecture and baseband algorithms provide superb performance and
lowest power consumption.

1.2. Environmental

1.2.1. Operating

Operating Temperature:
Relative Humidity:

1.2.2. Storage

Temperature:
Relevant Humidity:

1.3. Functional Specifications

Standards
Bus Interface
Form Factor
Data Rate
0 to 70 C
5-90% (non-condensing)
-55 to 125 C
5-95% (non-condensing)
Table 1. Functional Specifications
WiFi:
IEEE 802.11b, IEEE 802.11g, Draft IEEE 802.11n, IEEE 802.11d,
IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
BT:
BT v3.0, v4.0
WiFi: SDIO BT: UART
NGFF1216
802.11b:
11, 5.5, 2, 1 Mbps;
4
