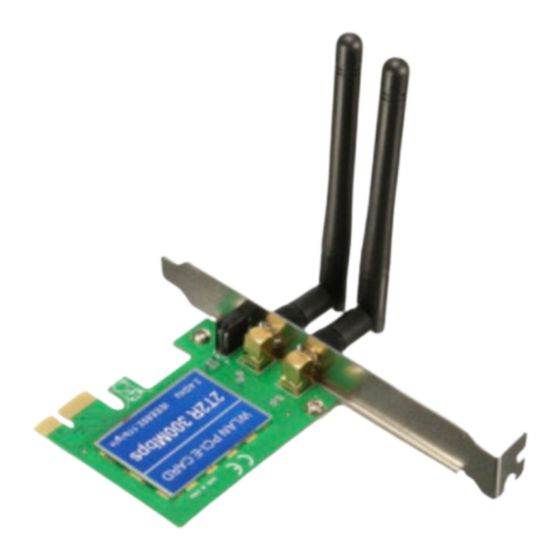

Realtek RTL8192CE User Manual

802.11b/g/n minicard
Hide thumbs
Table of Contents

Advertisement

Quick Links

RTL8192CE
802.11b/g/n RTL8192CE miniCard
User's Manual
Rev. 1.0
11 Feb 2010
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTL8192CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Realtek RTL8192CE

Summary of Contents for Realtek RTL8192CE

  • Page 1 RTL8192CE 802.11b/g/n RTL8192CE miniCard User’s Manual Rev. 1.0 11 Feb 2010 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw...
  • Page 2 User’s Manual COPYRIGHT ©2010 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp.

  • Page 3: Table Of Contents

    4.5.1 Federal Communication Commission Interference Statement ..................9 4.5.2 INDUSTRY CANADA STATEMENT ................11 4.5.3 NCC警語 ................................12 List of Tables 1. M PCI E ..........................7 ABLE XPRESS SSIGNMENT 2. F ............................8 ABLE UNCTIONAL PECIFICATIONS List of Figures 2. RTL8192CE ....................8 IGURE MINI ECHANICAL PECIFICATION Rev.1.0...

  • Page 4: General Description

    RTL8192CE User’s Manual 1. General Description The Realtek RTL8192CE miniCard is a highly integrated MIMO wireless LAN (WLAN) used for high speed wireless local network access. The card is built with a MAC and 2T2R capable RF/baseband single chip RTL8192CE.

  • Page 5: General Features

    • MIMO power saving mechanism • Channel management and co-existence • Multiple BSSID feature allowing RTL8192CE to assume multiple MAC identity when used as wireless bridge • Supports Wake-On-WLAN via Magic Packet and wake-up frame • TXOP SIFS bursting guarantees multimedia bandwidth.
  • Page 6 RTL8192CE User’s Manual PHY Features • IEEE 802.11n draft 2.0 MIMO OFDM 2 transmitter and 2 receivers (2T2R). 20MHz and 40MHz bandwidth transmission. Long Guard Interval (800ns). 1 spatial stream STBC transmission for extended coverage. Sounding packet. • DSSS with DBPSK and DQPSK, CCK modulations with long and short preamble.

  • Page 7: Product Specifications

    RTL8192CE User’s Manual 3. Product specifications 3.1. Mini PCI Express Pin Assignment Table 1. Mini PCI Express Pin Assignment PIN# Pin Name PIN# Pin Name WAKE# 3.3V RESERVED RESERVED 1.5V CLKREQ# RESERVED RESERVED RESERVED REFCLK+ RESERVED REFCLK- RESERVED RESERVED RESERVED...

  • Page 8: Mechanical

    RTL8192CE User’s Manual 3.2. Mechanical Figure 1. RTL8192CE miniCard Mechanical Specification 3.3. Environmental 3.3.1. Operating 0 to 70 °C Operating Temperature: Relative Humidity: 5-90% (non-condensing) 3.3.2. Storage -55 to 125 °C Temperature: Relevant Humidity: 5-95% (non-condensing) 3.4. Functional Specifications Table 2. Functional Specifications DC 3.3V +/- 0.3V, 372mA from host equipment...

  • Page 9: Warning

    RTL8192CE User’s Manual Transfer rate 802.11b: 11 / 5.5 / 2 / 1Mbps 802.11g: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6Mbps Draft 802.11n (20MHz, 800ns GI): 130 / 117 / 104 / 78 / 65 / 58.5 / 52 / 39 / 26 / 19.5 / 13 / 6.5Mbps...
  • Page 10 This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: TX2-RTL8192CE”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module.

  • Page 11: Industry Canada Statement

    RTL8192CE User’s Manual IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

  • Page 12: Ncc警語

    1. the shielded case should be fixed by soldering or 2. the system should use unique screw or 3. the RF and active components fixed by Special Resin Realtek Semiconductor Corp. Headquarters No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu, 300, Taiwan, R.O.C.
