Wenger Tourmaster 024F Series Owner's Manual

2-step & 3-step risers with foot-operated slider
Hide thumbs
Table of Contents

Advertisement

Quick Links

To Set Up a 3-Step Riser ...................................................................................2
To Take Down a 3-Step Riser ............................................................................4
To Set Up a 2-Step Riser ...................................................................................5
To Take Down a 2-Step Riser ............................................................................7
To Lock Units Together.......................................................................................8
To Reverse the Step Arrangement (3-Step Riser) .............................................8
To Attach an Optional 4th Step to a 3-Step Riser ............................................10
To Attach an Optional Back Rail to a 3-Step Riser...........................................11
To Store a Back Rail (3-Step Risers) ...............................................................12
To Attach Optional Side Rails to the Riser .......................................................13
To Store Risers on the Optional Riser Cart......................................................16
Load Back Rails ...........................................................................................16
Load Risers onto the Cart ............................................................................19
Load 4th-Steps onto the Cart .......................................................................23
Replacement Parts List ....................................................................................24
Basic 3-Step Unit .........................................................................................24
Basic 2-Step Unit .........................................................................................25
4th-Step Unit (for 3-Step Riser)....................................................................26
Back Rail (for 3-Step Riser) .........................................................................27
Side Rails .....................................................................................................28
Riser Cart .....................................................................................................29
Troubleshooting................................................................................................30
Warranty ...........................................................................................................31
©Wenger Corporation 2011
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com

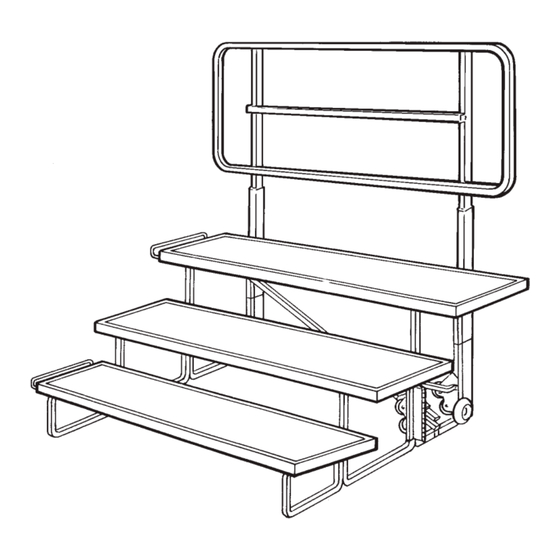

Series 024F 3-Step with foot-operated slider
Printed in USA 08/11
Owner's Manual
Tourmaster Risers
Series 024F 2-Step
Please take a few minutes to read this
manual and to familiarize yourself with
Tourmaster's unique operating features.
If you should need additional information
on your new Tourmaster Riser, just
write or phone.
Part #024H636-01
