Location And Function Of Parts And Controls; Front Panel - Sony Trinitron PVM-1353MD Operating Instructions Manual

Color video monitor.
Hide thumbs
  • Contents

Advertisement

Table of Contents

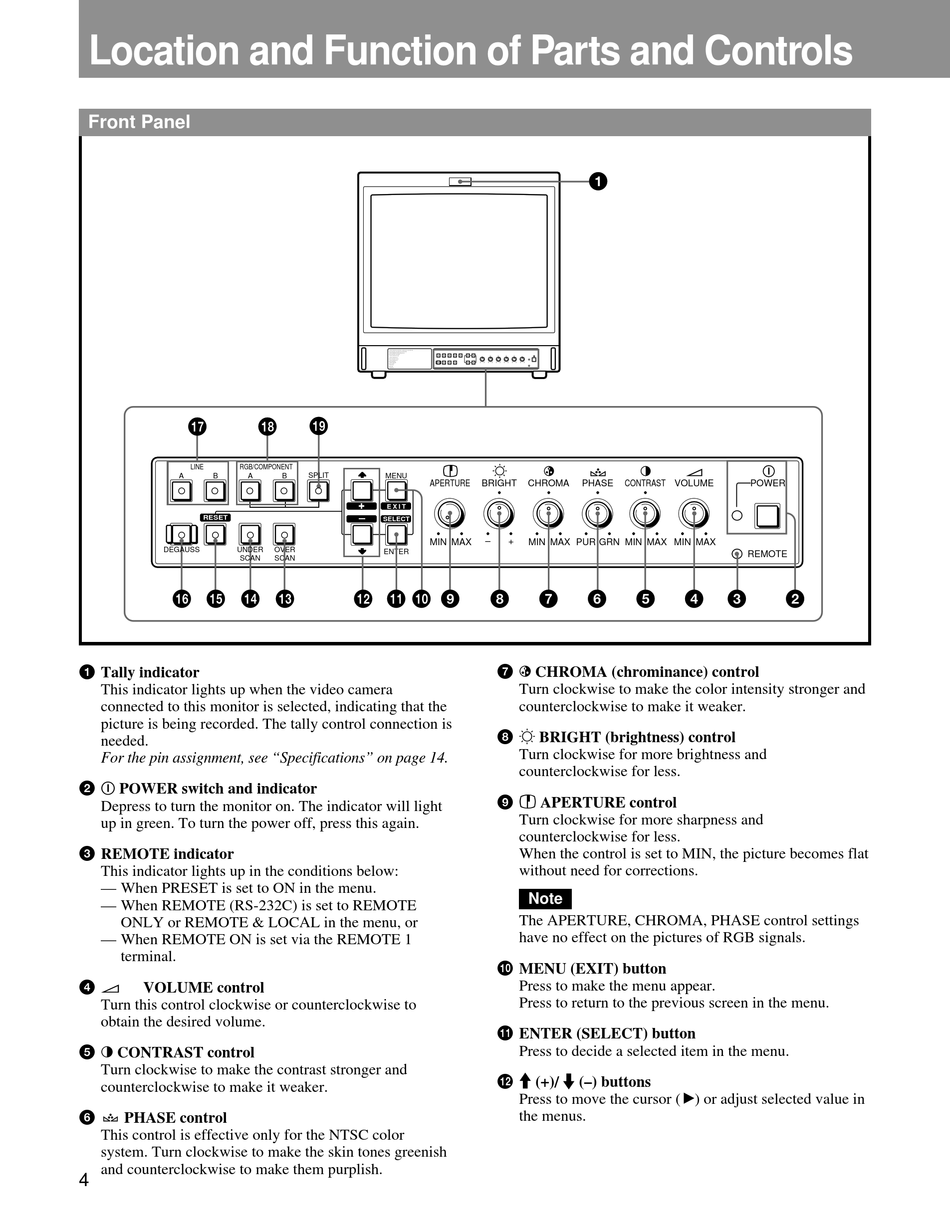

Location and Function of Parts and Controls

Front Panel

LINE
RGB/COMPONENT
A
B
A
RESET
DEGAUSS
UNDER
SCAN
1 Tally indicator
This indicator lights up when the video camera
connected to this monitor is selected, indicating that the
picture is being recorded. The tally control connection is
needed.
For the pin assignment, see "Specifications" on page 14.
2 U POWER switch and indicator
Depress to turn the monitor on. The indicator will light
up in green. To turn the power off, press this again.
3 REMOTE indicator
This indicator lights up in the conditions below:
— When PRESET is set to ON in the menu.
— When REMOTE (RS-232C) is set to REMOTE
ONLY or REMOTE & LOCAL in the menu, or
— When REMOTE ON is set via the REMOTE 1
terminal.
4 ¸
VOLUME control
Turn this control clockwise or counterclockwise to
obtain the desired volume.
5 > CONTRAST control
Turn clockwise to make the contrast stronger and
counterclockwise to make it weaker.
6
PHASE control
This control is effective only for the NTSC color
system. Turn clockwise to make the skin tones greenish
and counterclockwise to make them purplish.
4
B
SPLIT
MENU
APERTURE
E X I T
SELECT
MIN
MAX
OVER
ENTER
SCAN
BRIGHT
CHROMA
PHASE
CONTRAST
–
+
MIN MAX PUR GRN MIN MAX MIN MAX
7 ¯ CHROMA (chrominance) control
Turn clockwise to make the color intensity stronger and
counterclockwise to make it weaker.
8 ¨ BRIGHT (brightness) control
Turn clockwise for more brightness and
counterclockwise for less.
9 ΠAPERTURE control
Turn clockwise for more sharpness and
counterclockwise for less.
When the control is set to MIN, the picture becomes flat
without need for corrections.
Note
The APERTURE, CHROMA, PHASE control settings
have no effect on the pictures of RGB signals.
!º MENU (EXIT) button
Press to make the menu appear.
Press to return to the previous screen in the menu.
!¡ ENTER (SELECT) button
Press to decide a selected item in the menu.
!™ > (+)/ . (–) buttons
Press to move the cursor ( z) or adjust selected value in
the menus.
VOLUME
POWER
REMOTE
