IP Control Center N152
Environmental specifications
· Climatic conditions: EN 60721-3-3 class 3k5
· Ambient temperature in operation: -5 °C ... + 45 °C
· Storage temperature: - 25 ... + 70 °C
· Relative humidity (non-condensing): 5% to 93%
Marking
• KNX EIB
CE mark
Complies with the EMC regulations (residential and func-
tional buildings) and low voltage regulations.
Location and Function of the Display and Op-
erating Elements
ERR
LK

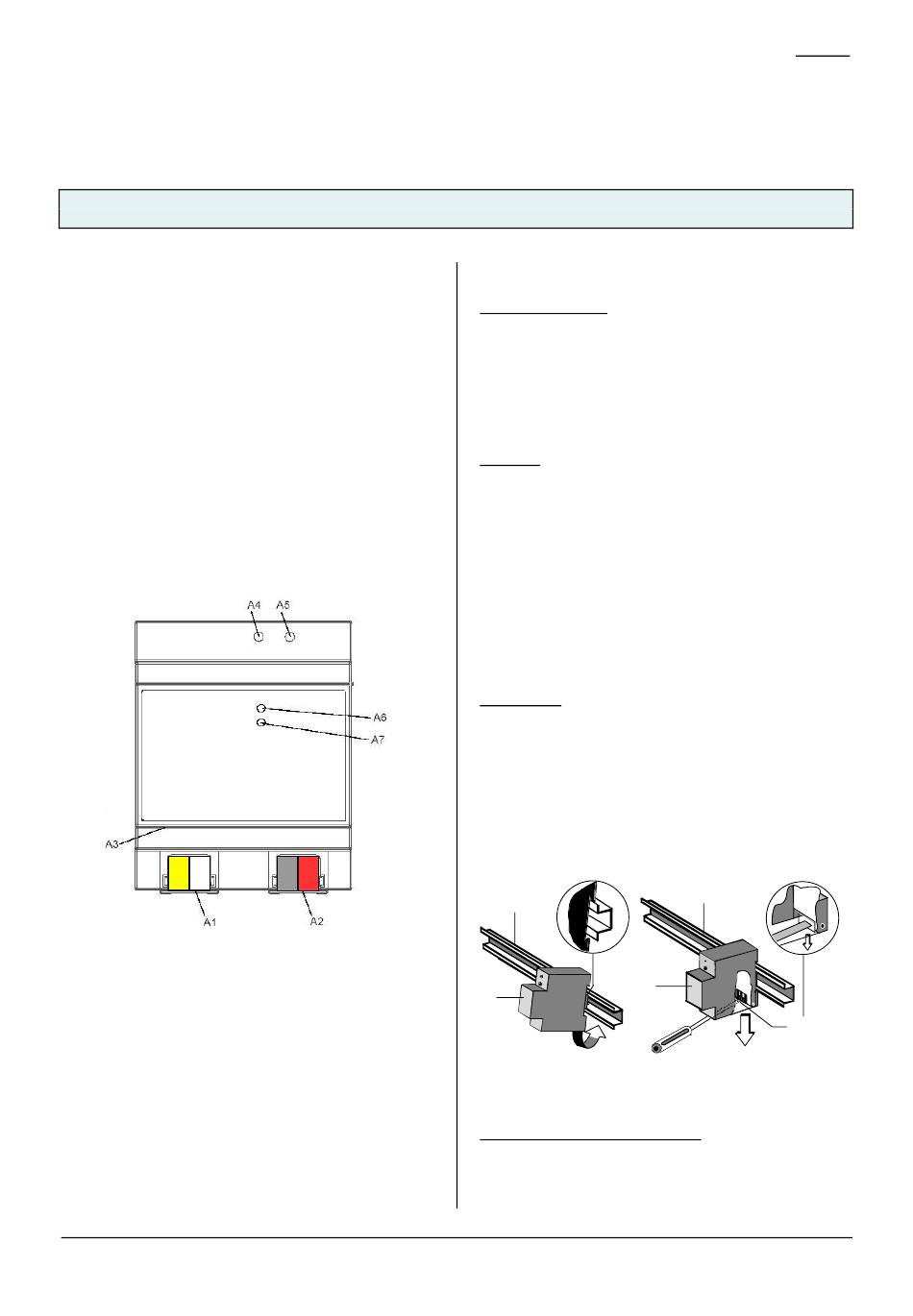

Figure 1: Location of the display and operating elements
A1 DC 24 V bus connector terminal (yellow-white)
A2 KNX bus connector terminal (black-red)
A3 Ethernet RJ45 socket
A4 KNX programming LED
A5 KNX learning button
A6 ERR: Error status LED
A7 LK: Ethernet Activity + Communication LED
The device connections and the elements needed for
KNX commissioning - learning button and programming
LED - are accessible in the distribution board only when
the lid is removed.
Siemens AG
Infrastructure & Cities Sector, Building Technologies
Control Products and Systems
P. O. Box 10 09 53, D-93009 Regensburg
Mounting and wiring
General description
The N-system DIN-rail device can be installed in distribu-
tion boards, surface or flush mounted, or on any DIN rail
complying with EN 60715-TH35-7,5.
The connection to the bus line is established via the bus
connector terminal (red-black) on the top side.
The RJ45 socket on the device front side provides the
connection to the Ethernet-IP data network.
Mounting
- Snap the IP Control Center N152 (Figure 2, B1) on to
the DIN rail (Figure 2, B2).
- Connect the auxiliary power DC 24 V with the yellow-
white bus connector terminal (Figure 1, A1).
- Connect the bus line with the black-red bus connector
terminal (Figure 1, A2).
- Plug an Ethernet patch cable with an RJ45 plug into
the RJ45 socket (Figure 1, A3) to connect the device
with the LAN/Intranet.
A connection is established to the network when the
yellow LED marked LK (Figure 1, A7) is continuously
lit.
Dismounting
- Unplug the Ethernet patch cable from the RJ45 socket
(Figure 1, A3)
- Remove the yellow-white bus connector terminal (Fig-
ure 1, A1) from its socket.
- Remove the black-red bus connector terminal (Figure
1, A2) from its socket.
- Remove the device (Figure 2, C1) with the catcher
(Figure 2, C3) from the DIN rail (Figure 2, C2)
