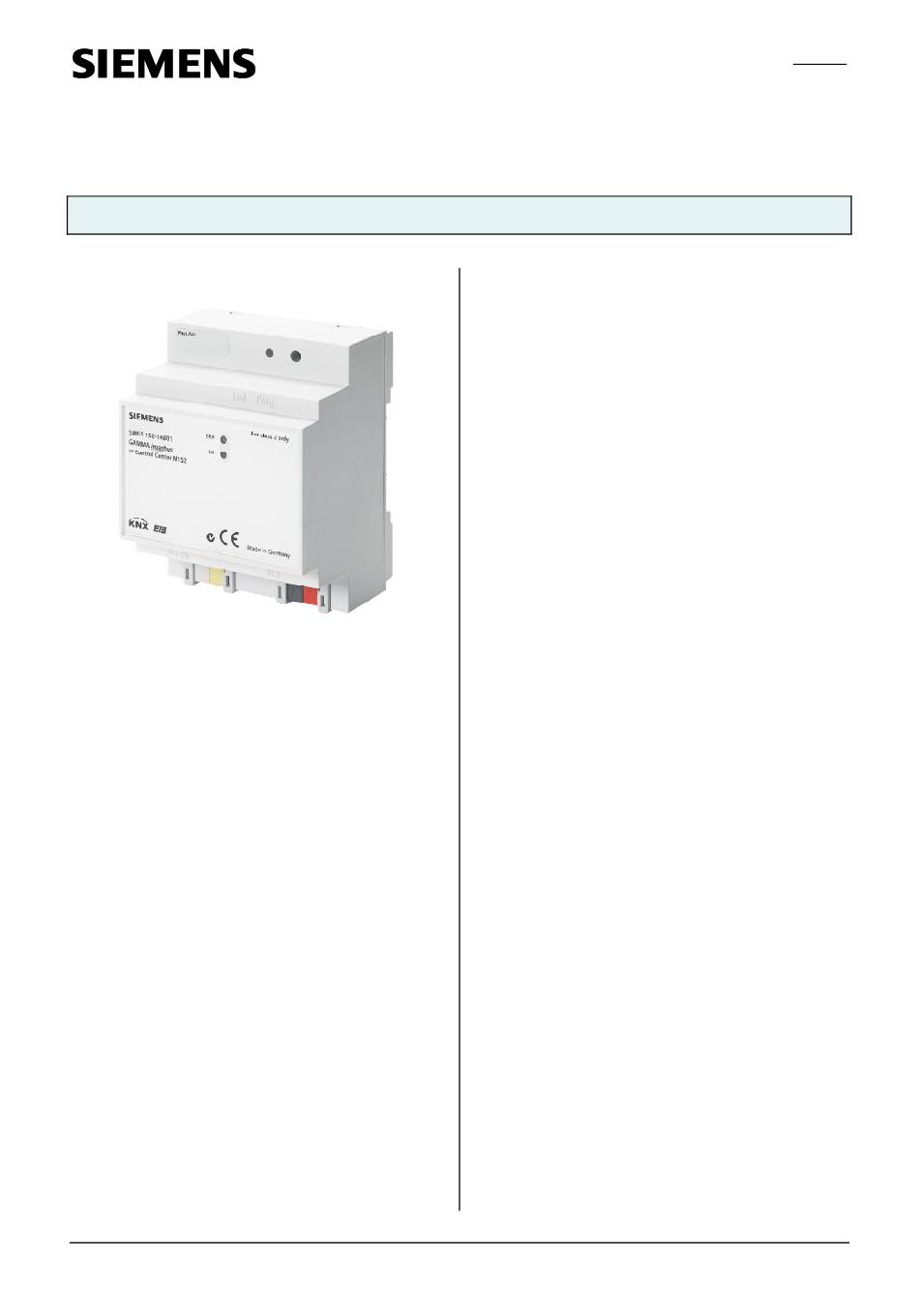

Siemens IP Control Center N152 Technical Product Information

IP Control Center N152
Product and function description

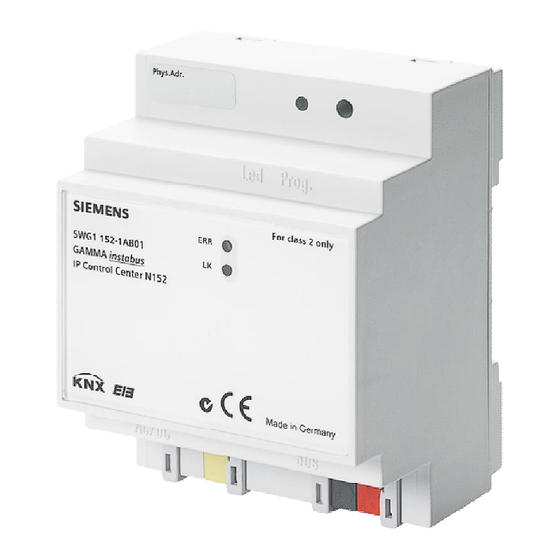

The IP Control Center N152 is a device for DIN-rail
mounting.
It offers the following functions:
· A web server for operating and observing KNX sys-
tems is incorporated in this device.
· A standard web browser displays the operating pages,
(tested browsers, see application program description)
· A graphics web editor projects a fully graphic view with
control and display elements in various styles.
· Application modules:
- Time switch schedules with up to 300 time switch
commands per week
- Scenes module with up to 5000 scenes or events
- Full graphic Logic module with up to 1000 Logic
functions
- Alarm function with up to 250 different alarm mes-
sages
- Email function with up to 20 contacts
are configured via a graphics web editor.
· An additional smart editor allows the intuitive and
quick preparation of simple visualisations for smart-
phones with mobile browser or for room control units.
· It provides an interface to KNX installations via data
networks, using the Internet Protocol (IP). Concur-
rently, this device provides communication from KNX
devices with PCs or other data processing equipment
(KNXnet/IP tunnelling).
The device is configured with the settings using ETS 3/4.
It defines the data types for the 250 available KNX
communications objects and provides basic information
for the device and for network settings.
Siemens AG
Infrastructure & Cities Sector, Building Technologies
Control Products and Systems
P. O. Box 10 09 53, D-93009 Regensburg
The following data types can be chosen at the parameter
setting of the communication objects:
· 1 bit
· 1 Byte (0...100%)
· 1 Byte unsigned
· 1 Byte signed
· 2 Byte unsigned
· 2 Byte signed
· 2 Byte float
· 4 Byte unsigned
· 4 Byte signed
· 4 Byte float
· 14 Byte text
Further 1000 group addresses can be linked together di-
rectly with the visualisation components.
The following default settings can be placed on the de-
vice:
· The IP address of the device is assigned by ETS con-
figuration or automatically by a DHCP service in the IP
network. Assigning of the IP address by a DHCP ser-
vice allows changes to the IP address without config-
uring the device with the ETS.
· When configuring the device with a fixed IP address
and subnet mask, a standard gateway or router can
also be defined. This gives subscribers the opportunity
to access the Internet or another network.
If you have queries on setting the parameters IP ad-
dress of the device and subnet masks, as well as
DHCP, you should contact your local network adminis-
trator.
· You can set the port number of the integrated web
server.
· Web pages for viewing and the web editor can be pro-
tected separately with different passwords.
· The device can be set both as a time master (syn-
chronisation by time server via IP) and as a time slave
(synchronisation by KNX telegrams).
· A further parameter sets a read requirement. This will
send an update to the object values after a restart/bus
reset.
The device is delivered with a preset IP setting:
Delivery status:
IP address: 192.168.1.133
Additional Information
http://www.siemens.com/gamma
N 152, 4 Pages
ã Siemens AG 2014
Subject to change wihout further notice
GAMMA instabus
Technical Product Information
December 2014
5WG1 152-1AB01
Technical Manual
Update: http://www.siemens.com/gamma
2.11.1.15/1
