HeatQ HEC 1.0 Assembly Instruction

Assembly instruction JUNO
JUNO-EN
The manufacturer cannot be held responsible if installation is not carried out according to these instructions. Installation must
be performed by a specialized company in compliance with the regulations in force . Great care must be taken with tools and
sealants etc. when installing so as not to damage the high quality finish.
The radiator should be installed at a minimum of 120 mm above the floor, so that the air valve is at the top.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Remove all packing from radiator
1.

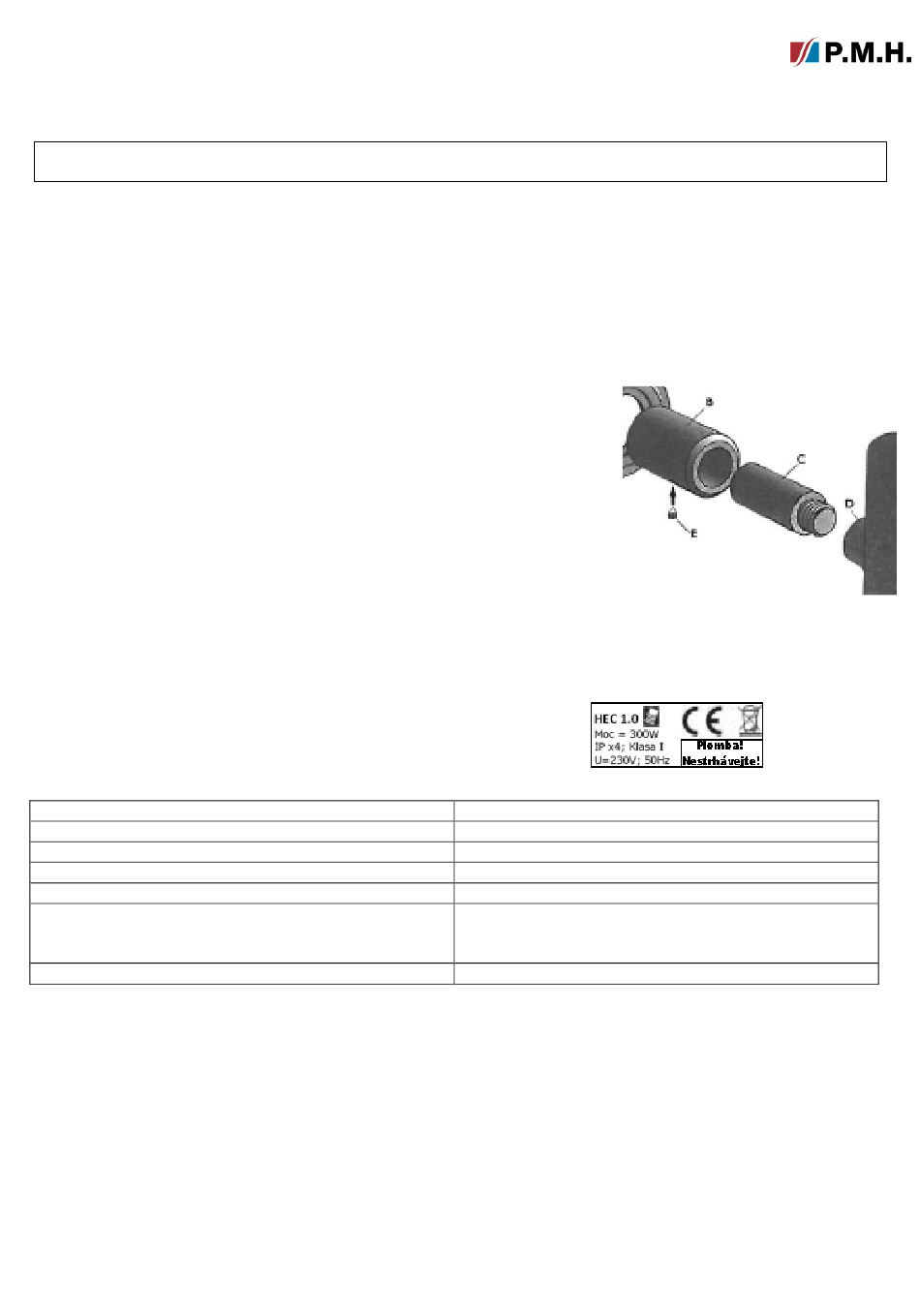

Screw the four threaded studs C into the threaded bushes D of the radiator.
2.
Slide the four wall supports B onto the four threaded studs C
3.
Measure exactly the centre to centre distances between these wall supports
B, left to right and lower to upper measurement.
4.
Using these measurements , drill four holes in the wall and fix together with
the wall supports B using the enclosed screws and wall plugs.
5.
Hang and adjust the radiator using the small grub screws E to lock the stud C
in the wall supports B. Ensure that the radiator is firmly and safety fixed.
Heating element PMH-HT2-200-RK - included-------------------------------------------------------------------------------------------------------------
Introduction
Manufacturer: HeatQ TECHNOLOGY / PL /
Product information
Type: HEC 1.0
Type:
Power supply:
Isolation class:
Power:
Moulding protection class:
Electric connection type:
Thread connection:
Purpose
The properly selected electric heating element is used to heat rooms or dry clothes/towels by means of radiators filled up with a
relevant heating agent.
CAUTION! The heating agent (liquid heating agent in the radiator) cannot cause any corrosion or include any ethylene glycol,
except for the agent that can be applied in central heating systems.
1
HEC 1.0
230VAC, 50Hz
I
200W
IP54
Y (the user must not replace the power cable – this cable can
only be replaced by the
1/2"
