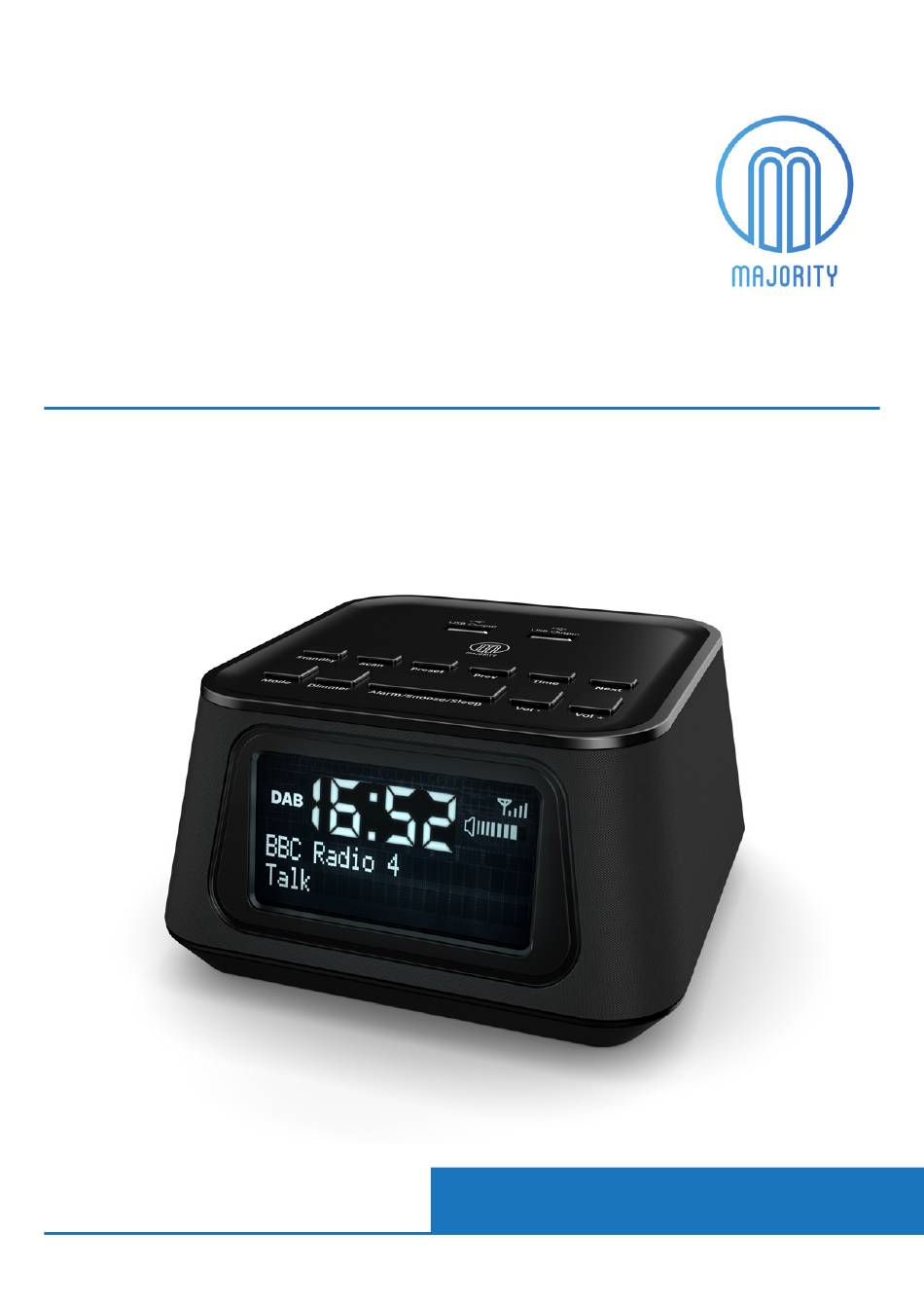

- Page 1 MAJORITY MADINGLEY HALL Bedside Radio and Alarm Clock CB23-DAB-WHT/BLK Instructions Guide...
-
Page 2: Table Of Contents
Contents Controls And Functions ���������������������������������������������� What’s In The Box? ��������������������������������������������������� Instructions Guide ����������������������������������������������������� Basic Operation �������������������������������������������������������� Listening to Audio ����������������������������������������������������� USB Functions ����������������������������������������������������������� Bluetooth ������������������������������������������������������������������ Connect to Bluetooth ����������������������������������������������� Bluetooth and AUX-In ����������������������������������������������� Receiving calls via Bluetooth ������������������������������������ FM Radio ������������������������������������������������������������������ Wireless Charging �����������������������������������������������������... -
Page 3: Controls And Functions
Controls And Functions LCD Display DC 5V Input Port AUX-In Jack Power On/Off... - Page 4 Controls And Functions Top View 5. USB Ports 12. Standby/Dimmer 6. Preset button 13. Scan 7. Mode button 14. Previous/Back 8. Info button 15. Enter button 9. Alarm/Snooze/Sleep 16. Next/Forward 10. Volume Down 17. Antenna 11. Volume Up...
-
Page 5: What's In The Box
What’s In The Box? Box Contents 1. Majority Madingley Hall DAB/DAB+ Radio Clock 2. UK Standard Plug DC 5V Power Supply 3. Instructions Guide... -
Page 6: Instructions Guide
Instructions Guide Basic Operation Please note all (Ref.) refer to the Controls and Functions mapping guide on Page 1. To get the radio started, plug the connector into the back of the system labelled DC IN (Ref.3) and the power supply into the mains. - Page 7 Instructions Guide DAB/DAB+ Radio Press and hold the ‘Standby/Dimmer’ button (Ref.12) to turn the radio on. To select DAB mode, press the ‘Mode’ button repeatedly until “DAB” appears on the display screen. Fully extend the antenna (Ref.17) to ensure that you receive the best signal.
- Page 8 Instructions Guide How to store a preset radio station Up to 10 preset stations can be set. To store a station that you are currently playing: Press and hold the ‘Preset’ button (Ref.6). Preset “Empty 01” will flash on the display. If you would like to set the station as preset 1, simply press ‘Enter’...
- Page 9 Instructions Guide DAB/DAB+ Station Information Whilst listening to a DAB/DAB+ station, press the ‘Info’ button (Ref.8) repeatedly to show the different programme information. Bit Rate: Shows the data rate at which the signal is being transmitted. Bit Error Rate (BER): Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency.
-
Page 10: Fm Radio
Contents FM Radio To begin enjoying FM radio, press and hold the ‘Standby/ Dimmer’ button (Ref.12) to turn the radio on. Follow by pressing the ‘Mode’ button (Ref.7) to switch to “FM” mode - it will display on the screen that this mode is selected. The first time FM mode is selected, the FM frequency “87.5MHz”... - Page 11 Instructions Guide How to store a preset radio station Up to 10 preset stations can be set. To store a station that you are currently playing: Press and hold the ‘Preset’ button (Ref.6). Preset “Empty 01” will flash on the display. If you would like to set the station as preset 1, simply press ‘Enter’...
- Page 12 Instructions Guide FM Station Information When listening to an FM station, press the ‘Info’ button (Ref.8) repeatedly to show the different programme information. Signal Strength: Displays a signal bar with the strength of the current station. Time and Date: Displays the time and the date. Frequency: Displays the station’s transmission frequency.
- Page 13 Instructions Guide AUX-In and Dual USB Ports AUX-In Port To begin listening to your own music, you can connect it to the radio via an AUX 3.5mm cable. To do this, simply connect your device to the radio via the AUX-in jack (Ref.2). Ensure that the unit is switched on by pressing the ‘Standby/ Dimmer’...
-
Page 14: Alarm Settings
Instructions Guide Dual Alarm Settings Alarm 1 Setting/Alarm 2 Setting Ensure the radio is in working mode. Press the ‘Alarm/Snooze/Sleep’ button (Ref.9) to set ALARM 1. Press this button twice to set ALARM 2. The display will then show a flashing “ON/OFF”. To turn the alarm on, use the ‘Prev’... - Page 15 Instructions Guide Alarm Sound and Snooze Alarm Sound If the alarm is set to DAB/DAB+ or FM mode, it will play the current station that you are listening to or what you were listening to before putting the radio into standby. If there is no signal for that station when the alarm sounds, then the alarm will revert to a BEEP tone - for the next time you set an alarm, please try an alternative radio station as your alarm.
-
Page 16: Other Functions
Instructions Guide Other Functions Sleep Setting Sleep mode allows you to programme the radio to switch off after a set amount of time. From activation, you can set the sleep time up to 90 minutes. In working mode (listening to DAB/FM Radio), press and hold the ‘Alarm/Snooze/Sleep’... - Page 17 Instructions Guide Display Brightness Set the radio display screen to your desired brightness - you can do this in working mode or standby. To change the brightness, press the ‘Standby/Dimmer’ button repeatedly to view the multiple levels of brightness. System Reset To perform a reset of the radio and to erase all settings made on the unit, ensure that the radio is in working mode.
-
Page 18: Specifications
Specifications Specifications Power supply DC IN 5V/2.5A 100-240V AC INPUT Mode DAB/DAB+ (BAND III 5A-13F) FM 87.5MHz AUX-In Output Power 1.5W x 2 Standby Mode Show Clock Black background, white font, negative LCD Dimensions 549g; 13 x 13 x 7.5 cm (LxWxH) Warranty All products come with a standard 12 month warranty. -
Page 19: Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 21 www.majorityradios.co.uk...
