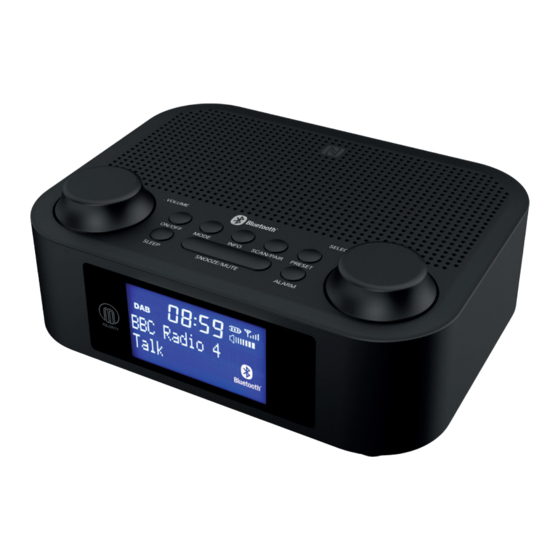

- Page 1 Majority Fulbourn Bedside Radio Alarm Clock FUL-DAB-BLK User Guide...
-
Page 2: Table Of Contents
Contents Controls and Functions ............. What’s in the box? ................. Instruction Guide ................Basic Operation ................DAB Radio ..................Set Up of the DAB Radio Preset Stations ......FM Radio ................... Set Up of the FM Radio Preset Stations ... -
Page 3: Controls And Functions
Controls and Functions FrontView 1. Volume +/- 6. Preset 2. On/Off 7. Select 3. Mode 8. Sleep 4. Info 9. Snooze/Mute 5. Scan/Pair 10. Alarm... -
Page 4: Top View
Controls and Functions Top View 11. Dual USB Ports 12. Aux In 13. Earphones jack 14. DC 5V Port 15. Antenna... -
Page 5: What's In The Box
What’s in the box? Majority Fulbourn DAB/DAB+ / FM Radio Clock UK Standard Plug DC5V 2A Power Supply User Guide... -
Page 6: Instruction Guide
Instructions Guide Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide. Basic Operation Plug the connector into the back of the system labelled DC 5V (Ref.14) and the power supply into the mains. Ensure the antenna (Ref.15) is extended as far as possible so that you can rotate it. -
Page 7: Dab Radio
Instructions Guide DAB/DAB+ Radio Press the ‘Mode’ button (Ref.3) to switch to DAB Radio. On first use it will automatically scan all stations and save them. Fully extend the antenna (Ref.15). To auto scan, press the ‘Scan/Pair’ button (Ref.5) and then release. - Page 8 Instructions Guide Prune To remove stations that are listed but are unavailable. Press and hold the ‘ Info’ button (Ref.4) when in DAB mode and use the ‘Select’ dial (Ref.7) to scroll through options. Select “Prune” and press the ‘Select’ dial (Ref.7). Use the ‘Select’...
-
Page 9: Manual Tuning
Instructions Guide Manual Tuning As well as an auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning. Press and hold the ‘Info’ button (Ref.4) and use the ‘Select’ dial (Ref.7) to scroll through options. -
Page 10: Set Up Of The Dab Radio Preset Stations
Instructions Guide How to store a preset station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.6). “Preset [1] Stored’ will show on the display. Use the ‘Select’ dial (Ref.7) to change the “1” to the number you want to store the station as. -
Page 11: Fm Radio
Instructions Guide FM Radio Press the ‘Mode’ button (Ref.3) multiple times to switch between DAB, FM, Aux-in and Bluetooth. The first time you do this, the FM frequency “87.5 MHz” will be displayed on the screen. Fully extend the antenna (Ref.15). To auto scan, press and release the ‘Scan/Pair’... - Page 12 Instructions Guide To tune a specific frequency manually To listen to a specific frequency use the ‘Select’ dial (Ref.7) to search forward or back. Mono and Stereo Press and hold the ‘Info’ button (Ref.4).To make your choice, use the ‘Select’ dial (Ref.7) to choose your option. Select “Audio Setting”...
-
Page 13: Set Up Of The Fm Radio Preset Stations
Instructions Guide How to store a preset radio station Up to 10 stations can be set. To store a station that you are currently playing: Press and hold ‘Preset’ button (Ref.6). “Preset [1] Stored’ will show on the display. Use the ‘Select’ dial (Ref.7) to change the “1” to the number you want to store the station as. -
Page 14: Station Information For Dab And Fm Radio
Instructions Guide Station information for DAB and FM Radio DAB/DAB+ Radio Press the ‘Info’ button (Ref.4) repeatedly to show the different programme information. Signal Strength: Displays a signal bar with the strength of the current station. PTY (Programme Type): Shows the type and description of the programme provided by the DAB station. - Page 15 Instructions Guide FM Radio Press the ‘Info’ button (Ref.4) repeatedly to show the different programme information. Programme Type: Displays a description of the type of programme provided by the broadcaster. Frequency: Displays the station’s transmission frequency. Audio Type: Displays the audio type of the station you are listening to.
-
Page 16: Clock And Date Setting
Instructions Guide Clock and Date Setting Manually Setting the Time The time will automatically update after the first use of DAB Radio. However, you can still set the time manually. Ensure the unit is turned on. Press and hold the ‘Info’ button (Ref.4). To make your selection, use the ‘Select’... - Page 17 Instructions Guide Manually Setting the Date The date can be changed after changing the time. The year will flash on the display screen. Use the ‘Select’ dial (Ref.7) until the required year is displayed. To confirm the year, press the ‘Select’ dial (Ref.7). The month will flash on the display screen.
- Page 18 Instructions Guide Auto Update of Time and Date The time and date can be automatically updated from DAB or FM Radio. Press and hold the ‘Info’ button (Ref.4). To make your selection, use the ‘Select’ dial (Ref.7). Select “System” and press the ‘Select’ dial (Ref.7). Highlight “Time”...
-
Page 19: Dual Alarm Setting And Alarm Snooze
Instructions Guide Dual Alarm Setting Press the ‘Alarm’ button (Ref.10) once for Alarm 1 or twice for Alarm 2. Press the ‘Select’ dial (Ref.7) to confirm. To turn the alarm on or off, use the ‘Select’ dial (Ref.7) so that “ON”... - Page 20 Instructions Guide To turn off Alarm 1 or Alarm 2 Press the ‘Alarm’ button (Ref.10) once for Alarm 1 or twice for Alarm 2. Press the ‘Select’ dial (Ref.7) to confirm. To turn the Alarm off, use the ‘Select’ dial (Ref.7) so that “OFF” is flashing and press the ‘Select’...
-
Page 21: Other Functions
Instructions Guide Other Functions Sleep Setting This enables you to programme the radio to switch off at a Sleep Setting. This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. Press the ‘Sleep’... - Page 22 To choose your mode, press through your choices using the ‘Mode’ button (Ref.3) and select “Bluetooth”. Turn on Bluetooth on your phone and “Majority Impington” will appear. Click on this to connect. When the unit makes a short sound, it has successfully connected.
- Page 23 Instructions Guide Brightness To change the brightness levels when the display is on: Press the ‘Info’ button (Ref.4) on the unit. Use the ‘Select’ dial (Ref.7) to scroll to “System” and press the ‘Select’ dial (Ref.7). Use the ‘Select’ dial (Ref.7) to scroll to “Backlight” and press the ‘Select’...
-
Page 24: Technical Specifications
Instructions Guide Technical Specifications FM(87.5MHz – 108MHz Mode: DAB/DAB+ 174-240MHz Earphone jack Output Connector: Integral telescopic aerial Aerial: Power Supply and Batteries The unit is powered and charged by UK Standard Plug DC 5v. Warranty All products come with a standard 12 month warranty. All items must be registered on www.majorityradios.co.uk the warranty to be valid. -
Page 25: Troubleshooting Guide
Troubleshooting Guide Observation Potential cause/solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low. -
Page 26: Important Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 28 ffiAJORITY www.majorityradios.co.uk...
