U N P A C K I N G A N D I N S T A L L A T I O N I N S T R U C T I O N S

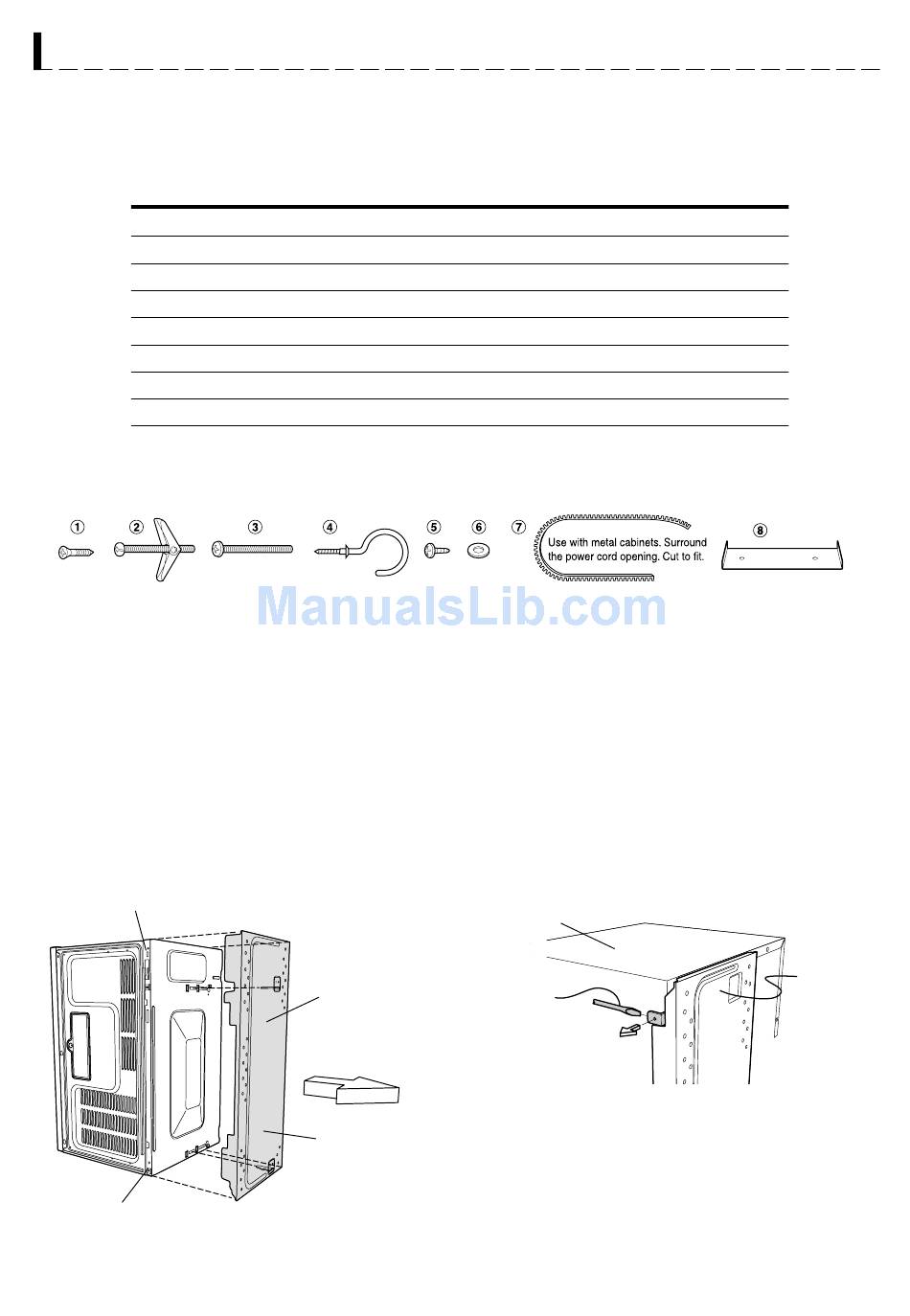

5 INSTALLATION HARDWARE

The INSTALLATION HARDWARE items 1 - 7 are in a small bag. Item 8 is packed separately. All items are in a
small carton packed below the oven.
ITEM
1
Wood Screw 5 X 30 mm
2
Toggle Bolt with nuts #10 - 24 X 50 mm
3
Top Cabinet Screw 5 X 60 mm
4
Power Cord Hanger
5
Tapping Screw 4 x 12 mm
6
Flat Washer 30 mm diameter
7
Grommet
8
Scale Plate
6 PREPARATION OF THE OVEN
1. Turn oven on the side. See Figure 4.
2. Follow steps (A)-(D) to remove mounting plate from the back of the oven as shown in Figure 4.
(A) Release mounting plate by pulling out the lever that is on the bottom of the oven. See Figure 5.
(B) When lever is out, pull that side of the mounting plate away from the oven. See Figure 4.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side
Figure 4
(A)
(C)
NAME
Figure 3
Parts shown not to common scale.
.
Use screwdriver to
(B)
assist in releasing
mounting plate.
(D)
QUANTITY
6
4
2
1
3
2
1
2
(A)
Bottom of
Microwave
8
PART CODE
XTSSD50P35000
LX-BZ0195WRE0
XBRSD50P60000
LX-MZB001MRE0
XOTSD40P12000
XWHSD50-16300
LBSHC0040MRE0
LANG-B003MRP0
Figure 5
Mounting Plate
