Dynisco 1290 Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Model 1290 Strain Gage Input Indicator
Installation and Operation Manual
P/N 974066
02/03 Rev. G
ECO # 27622

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynisco 1290

Summary of Contents for Dynisco 1290

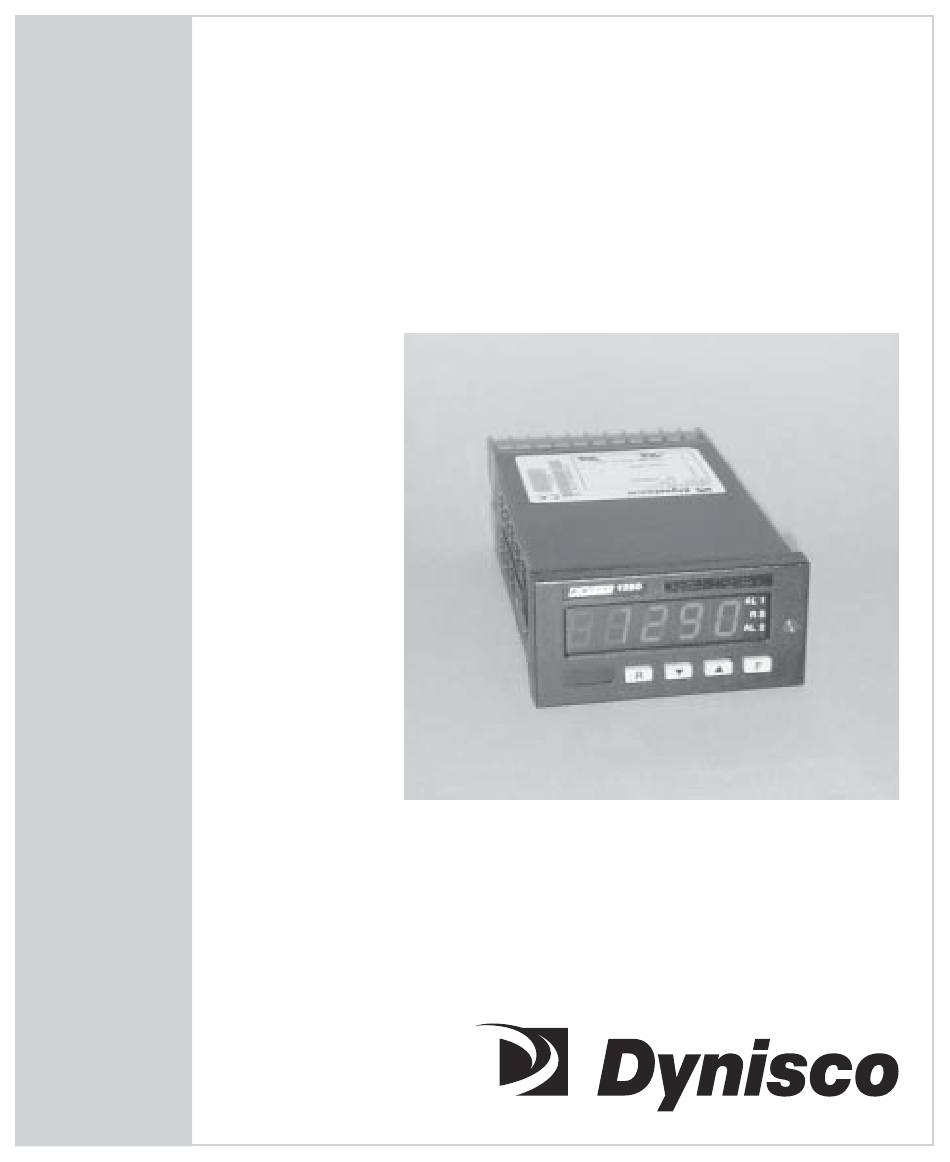

  • Page 1 Model 1290 Strain Gage Input Indicator Installation and Operation Manual P/N 974066 02/03 Rev. G ECO # 27622...

  • Page 2: Table Of Contents

    ONTENTS Quick Start Instructions ........................3 1. Indicator Description ........................ 5 2. Specifications ........................... 6 3. Installation ..........................9 4. Setup ............................11 5. Operating Mode ........................21 6. Default Data Loading Procedure ..................... 23 7. Error Messages ........................25 8.
  • Page 3 1290 Strain Gage Input Indicator 1290 Q ODEL UICK TART NSTRUCTIONS TEPS TO GET UP AND RUNNING OUNTING • Prepare panel cutout to dimensions shown here. • Remove instrument from case with front panel screw. • Slide rubber gasket over case.
  • Page 4 ALIBRATION AND PERATION • When power is applied, display will read 1290 then a Pressure reading. At this point, be sure that no pressure is applied and that the transducer is at operating temperature. • Press the F key and the legend LO. OFF appears. Using the Up arrow key, advance the legend to LO.ON.
  • Page 5 0.52” LED display provides a precise, readable indication of the measured value. You can program the 1290 to display in engineering units up to a full scale value (fsv) of 99,900 with an accuracy of ± 0.1%. The span value, alarm set points and other constants are stored indefinitely in non-volatile memory.

  • Page 6: Specifications

    PECIFICATIONS ENERAL Case PC/ABS, Black Self-extinguishing, level V-0, per UL 94 Dimensions 48 mm high x 96 mm wide x 144 mm deep (1.89 in. high x 3.78 in. wide x 5.67 in. deep) 1/8 DIN per DIN 43700 Installation Panel mounted, secured by mounting frame Cut-out 45 mm high x 92 mm wide, +0.8 mm/-0 mm...
  • Page 7 1290 Strain Gage Input Indicator Power consumption 100 mA @ 110 VAC maximum Protection Internal thermistor Normal mode 60 dB @ 50/60 Hz Weight 600g Operating temperature 0 to 50°C Storage temperature -20 to +70°C Humidity 85% relative humidity, non-condensing...
  • Page 8 PECIAL EATURES Display filter First order digital filter on displayed value, with configurable time constant of 0.4, 1, 2, 3, 4 or 5 seconds Peak detection Automatic detection of maximum and minimum measured value Input logic Driven by dry contacts for manual alarm reset or for hold-on value Watch dog Hardware and software for automatic restart Protection...

  • Page 9: Installation

    1290 Strain Gage Input Indicator Baud rate From 150 to 19200 baud Format 7 bits + parity 8 bits + parity 8 bits without parity Parity Even/Odd Stop bit NALOG ETRANSMISSION PTION Output types 0-20 mA, 4-20 mA, maximum load, 500 ohms...
  • Page 10 OUNTING Fig. 1 Panel Cutout • Make the instrument panel cut-out with the specified cut-out dimensions. • Undo the screw (2). • Remove the unit from the instrument case (3). • Slide the gasket onto the instrument case (3). • Slide the the instrument case (3) through the cut-out.

  • Page 11: Setup

    1290 Strain Gage Input Indicator ETUP RONT ANEL The front of the Model 1290 is shown in Figure 3. Key items on the front panel are: • A five digit LED display • LED indicators AL1 (Alarm 1) and AL2 (Alarm 2) •...
  • Page 12 NOTE: You must follow the pushbutton sequences exactly as described. ERMINAL ONNECTIONS The electrical connections for the Model 1290 are shown in the table below. The layout of the terminals, as seen from the rear, is shown in Figure 4. Terminal...
  • Page 13 1290 Strain Gage Input Indicator same bundle with power cables; instead, shielded cable should be used and grounded at the transducer end only (Dynisco’s cable assembly provides this grounding). Dynisco Standard Wire Code Transducer Pin-Out Lead Color PT420 Series PT460 Series...
  • Page 14 Fig. 5 Front Panel and Circuit Board Assembly 4.5.2 O UTPUT UMPER ETTINGS Output options are selected by the placement of jumpers on the upper circuit board. The choices available are: • Voltage or current loop output for analog retransmission. Jumper setups are shown in Figure 6. The default selection is a 4-20 mA current output, with alarm outputs normally closed.
  • Page 15 4.5.4 R EASSEMBLY To reassemble the Model 1290, follow the steps below. 1. Slide the front panel and printed circuit board assembly into the instrument case and press it in so that the printed circuit board contacts mate with th terminal block in the back of the case.
  • Page 16 The configuration/calibration mode is enabled by opening the Mode Selection Switch on the left side of the lower board (see Figure 7). A list of all configurable parameters starts below. When the unit is turned on in configuration/calibration mode, the display will show 1290 and then COnF .
  • Page 17 This value corresponds to the percentage of the Full Scale Value. NOTE: When using Dynisco transducers, the Shunt Calibration value should be set to 80.0 EXTERNAL CONTACT function The display shows E.C. (External Contact) followed by: nr to enable external contact for manual alarm reset, via rear terminals 7 and 8, or Ho to enable external contact for hold-on-value sampling.
  • Page 18 G. ALARM 1 OPERATIVE MODE The display shows A1 (Alarm 1) followed by: HA High alarm with automatic reset HL High alarm with manual reset (High Latched Alarm) LA Low alarm with automatic reset LL Low alarm with manual reset (Low Latched Alarm) OFF for no Alarm 1 G1.
  • Page 19 1290 Strain Gage Input Indicator JbUS for Jbus protocol OFF to disable comms NOTE: This indicator skips steps I1 and I2 if serial communication is not implemented (set to OFF ). I1. SERIAL COMMUNICATION DEVICE ADDRESS The display shows Adr (address) followed by a number ranging from:...
  • Page 20 L2. ANALOG RETRANSMISSION SCALING: FULL SCALE VALUE The display alternately shows Ar. F.S.U. (Analog Retransmission Full Scale Value) and a numerical value. This parameter establishes the upper limit for the analog output; only the numerical value is shown during modification. Resolution and decimal point position are as selected for the readout value.

  • Page 21: Operating Mode

    PERATING In this mode the Model 1290 monitors the input signal, displays the measured value, and performs alarm functions. You can display high and low peak values, lock and unlock the keyboard, reset alarms, and perform transducer input calibration and alarm threshold settings. It is also possible to load default parameters.
  • Page 22 2. FULL SCALE TRANSDUCER CALIBRATION The display alternates between FU.S.C. and the value of full scale in engineering units. Press the key once. The display shows FU on . Press F to go to perform the full scale calibration. The indicator automatically returns to operating mode after 6 seconds if no changes are made. 3.
  • Page 23 1290 Strain Gage Input Indicator LARM ESET UNCTION This function can be performed when the indicator is locked; must be in local mode. If the alarm is configured as a latched alarm (manual reset), alarm status is maintained even after the alarm condition stops.
  • Page 24 EFAULT ATA FOR ONFIGURATION ARAMETERS Parameter Description Setting Line frequency 60 Hz Decimal point position None Full scale readout 10000 Display filter time constant 400 ms Input Interrupt High Shunt calibration Enable Shunt calibration value 80.0% External contact function Alarm manual reset Contact status Closure Alarm 1 operating mode...

  • Page 25: Error Messages

    1290 Strain Gage Input Indicator EFAULT ATA FOR ALIBRATION ARAMETERS Default calibration parameters are provided to allow the user to verify that the instrument is working properly. They are not normally used as the final calibration values. CAUTION: After default parameter loading, you should perform the proper indicator calibration procedure.
  • Page 26 Er 39 Error detected during EAROM write operation. This error may appear in operating mode when storing a new value in EAROM (for example, alarm threshold or transducer calibration). the new values will be enabled but they will be lost when the instrument is powered down. This error message disappears automatically after 10 seconds.

  • Page 27: Repair

    For technical assistance please call 800-DYNISCO or 508-541-9400 or fax 508-541-9436. ARRANTY This Dynisco product is warranted under terms and conditions set forth in the Dynisco Web Pages. Go to www.dynisco.com and click on “Warranty” at the bottom of any page for complete details.
  • Page 28 OTES...
  • Page 29 CITY _____________________________ STATE _____________ ZIP __________________ COUNTRY _____________________________________________________________________ TELEPHONE _____________________________ FAX ________________________________ My application is _______________________________________________________________ Is this your first purchase from Dynisco? YES __________ NO __________ How did you first hear of Dynisco? ADVERTISING ________ REP __________ PREVIOUS USE ___________ COLLEAGUE _____________ DIRECTORY ______________...
  • Page 30 Place Stamp Here DYNISCO LLC 38 FORGE PARKWAY FRANKLIN, MA 02038 ATTN: MARKETING DEPT.
  • Page 32 Visit us on the world wide web: DyniscoLLC 38 Forge Parkway Dynisco UK Ltd. Franklin, MA 02038 Silver Birches Business Park Aston Road, Bromsgrove Worcestershire B60 3EU Tel: +1 508 541 9400 Great Britain Fax: +1 508 541 9436 Email: InfoInst@dynisco.com...
