PIR Sensor
Touch free
30 - 44"
7-8"
Detection
area
Within 12" from mounting wall
1. Drill two 1/8" mounting holes on
back of housing.
5. Knock in the two plastic anchors.
Receiver
7 feet
Sensitive area
Less than 8"
2. Hold housing at desired mounting
location ensuring it is level.
6. Install housing with supplied screws.
( DO NOT FULLY TIGHTEN )
Holes with
plastic anchors
THIN
Angle plate
3. Mark the center of the two
mounting holes.
7. Ensure housing is level and tighten
screws.
4. Drill holes at the 2 marks using
a 3/16" drill bit.
8. Close the sensor casing.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Optex PRO WAVE
Summary of Contents for Optex PRO WAVE

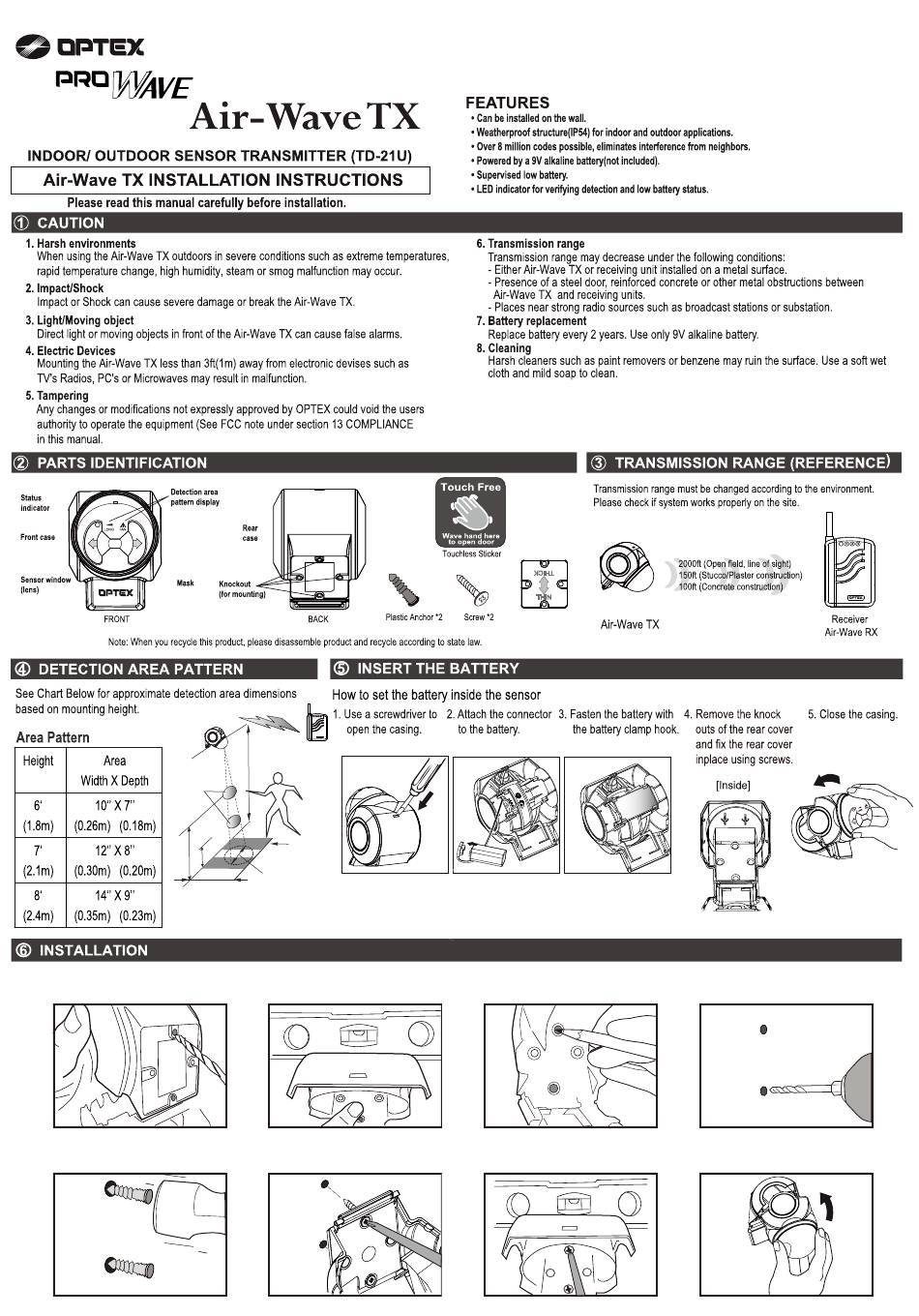

- Page 1 THIN Angle plate PIR Sensor Receiver 7 feet Touch free Sensitive area 30 - 44” 7-8” Less than 8” Detection area Within 12” from mounting wall 1. Drill two 1/8” mounting holes on 2. Hold housing at desired mounting 3. Mark the center of the two 4.
