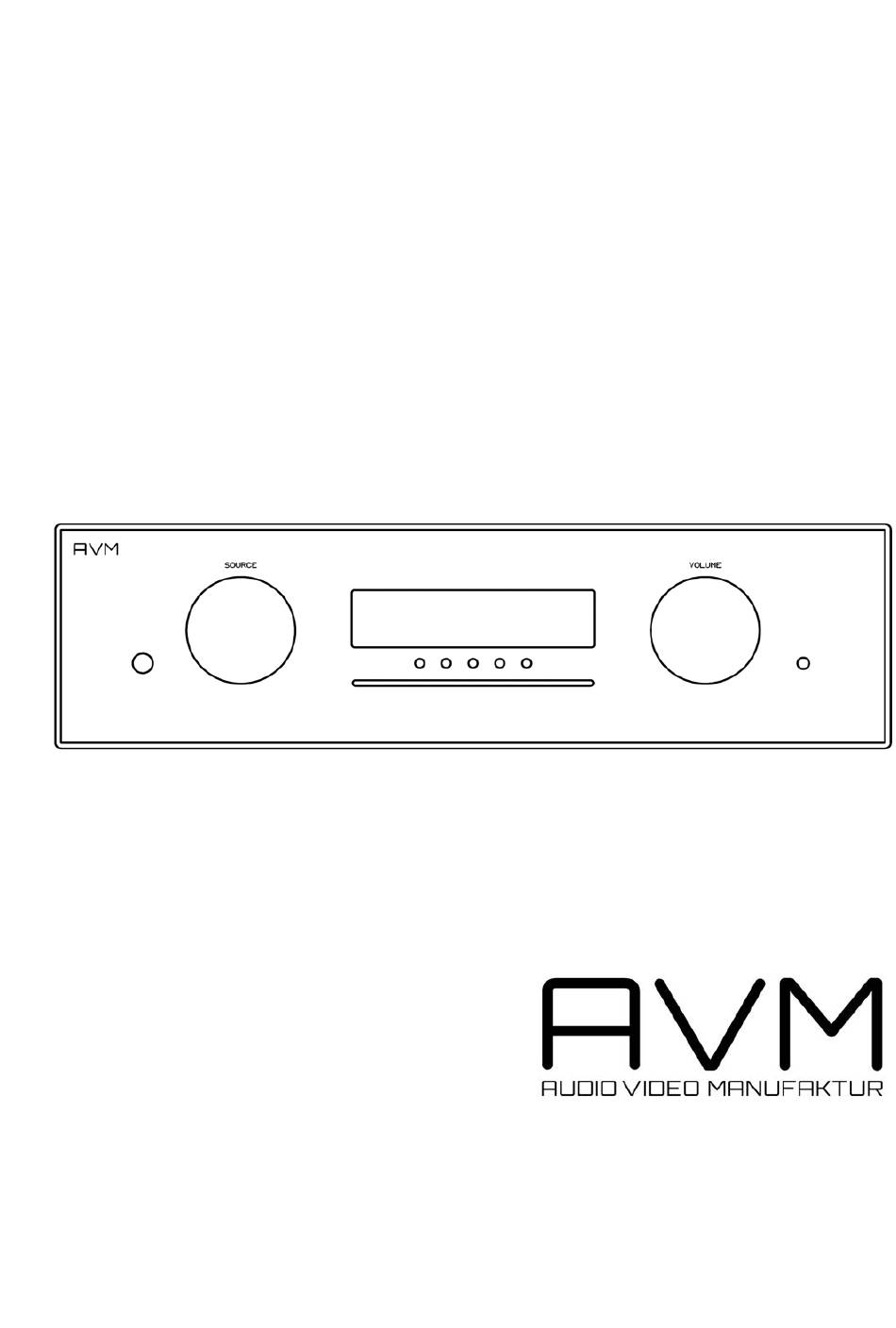

  • Page 1 Operating instructions EVOLUTION C 5.2...

  • Page 2: Dear Customer

    AVM component in the optimal way. Please note that the range of functions of your AVM hifi component can be easily expanded by means of a software update at any time. Hence, the present operating instructions will require continued updates going forward.

  • Page 3: Table Of Contents

    Table of contents Dear Customer 3.1.4 Loudness (Contour) 3.1.5 Balance Table of Contents 3.1.6 Poweramp Getting started Tuner settings What’s in the box? 3.2.1 RDS display Control and operating elements 3.2.2 Scan mode Installation and cooling 3.2.3 2 channel mode Connection to mains 3.2.4 Deemphasis...

  • Page 4: Getting Started

    1 Getting started 1.1 What’s in the box? EVOLUTION C 5.2 CD-Receiver • RC 3 remote control • Power cable • CAUTION: After unpacking, please check the scope of delivery to ensure that all the parts have been supplied and are undamaged. In case the original packing has already been opened, please contact your local dealer.

  • Page 5: Installation And Cooling

    13 Antenna socket 22 Configuration port 14 Ground socket for turntable chassis 23 Connector for external infrared sensor 15 Speaker terminal B 24 Digital input coaxial 16 Phono input 25 Digital input optical 17 High-level analogue input 1 26 Digital output coaxial 18 High-level analogue input 2 27 Digital output optical 19 High-level analogue input 3...

  • Page 6: Rc 3 Remote Control

    Digital out The input of a digital recorder must be connected to the digital outputs (26, 27). The signal on the digital outputs depends on the selected source (build in CD, dig in etc.). 1.7 RC 3 remote control The included RC 3 remote control allows for easy and comprehensive control of the C 5.2. All main functions of the C 5.2 can be controlled by the RC 3: on/off, source selection, station selection, SKIP, PLAY/PAUSE, and STOP.

  • Page 7: Pin Configuration Of External Infrared Sensor

    1.12 Pin configuration of external infrared sensor Connector for external IR-sensor (23) 3,5mm stereo infrared input IR-Signal +5V supply 2 Basic operation 2.1 First operation / self test In case the C 5.2 was not connected to mains a self test will be performed when it is switched on by the mains switch (29) for the first time.

  • Page 8: Tuner

    While level setting is active the display shows the actual level instead of the volume. Level can be set using the volume knob (11). Now you can switch between the sources (also CD and tuner) and adjust the levels. When this is done press the "EXIT LVL" knob and bring the unit back to normal operating mode.

  • Page 9: Insert / Eject

    2.6.1 Insert / eject Insert a CD The C 5.2 has a slot-in CD drive. Insert the CD (cover side up) and push slightly. The drive will now automatically draw the disc inside. After that the player reads the TOC and shows it on the display. Furthest left is the number of the actual track followed by the total number of tracks on the CD (for example "1/17").

  • Page 10: Advanced Settings

    Pressing ADD (7) adds the selected title to the playlist. The display shows on the right side the number of programmed titles (PGM-QT"), below the playing time of the programmed list (P-TIME). NOTE: The program function is only available while the player is stopped. The maximum number of programmed tracks is 99, the maximum program duration is 99 minutes.

  • Page 11: Treble

    3.1.3 Treble Set a global or individual treble level between – 7 dB and + 7 dB. 3.1.4 Loudness (Contour) If you listen to music at low levels, you often recognize that bass and treble reproduction are weak. This is because the human ear is not sensitive to bass and treble at low sound levels. To compensate this you can use the parametric loudness function of the C 5.2.

  • Page 12: Personal Setup

    3.3 Personal setup The personal setup offers you a range of settings to individualize the device according to your personal needs. To enter the personal setup menu, please switch off your device on the rear of the unit at the mains switch (29).

  • Page 13: Fm Auto Store

    3.3.6 FM auto store This function is useful when storing a large quantity of stations from cable. Please note that the stations are stored including the actual tuner setting. For cable we recommend: RDS-display = name, scanmode = auto, 2-ch mode = stereo, bandwidth = narrow, sensitivity = local. Once the tuner parameters are set in the desired way enter the personal setup and select "FM auto store".

  • Page 14: If Something Doesn't Work

    5 If something doesn’t work... Some putative defects are often caused by mistakes in operation. Sometimes other units connected to the amplifier can cause problems. Therefore please read the following tips before you consult your dealer or us. 1. Amplifier is muted a) Mute function is active, press button MUTE on remote control or increase volume using the rotary encoder (11).

  • Page 15: Technical Data

    NOTE: If you are returning the unit from a country other than Germany you should ensure that correct export documents are obtained. We cannot accept any charges for costs arising from improper or incomplete export documentation. If you have purchased your unit from a dealer outside Germany please refer to him or the relevant importing firm to process the warrant 7 Technical Data 7.1 Amplifier...
