Operating instructions
INSPIRATION CS 2.2

Advertisement

Table of Contents
loading

Related Manuals for AVM INSPIRATION CS 2.2

Summary of Contents for AVM INSPIRATION CS 2.2

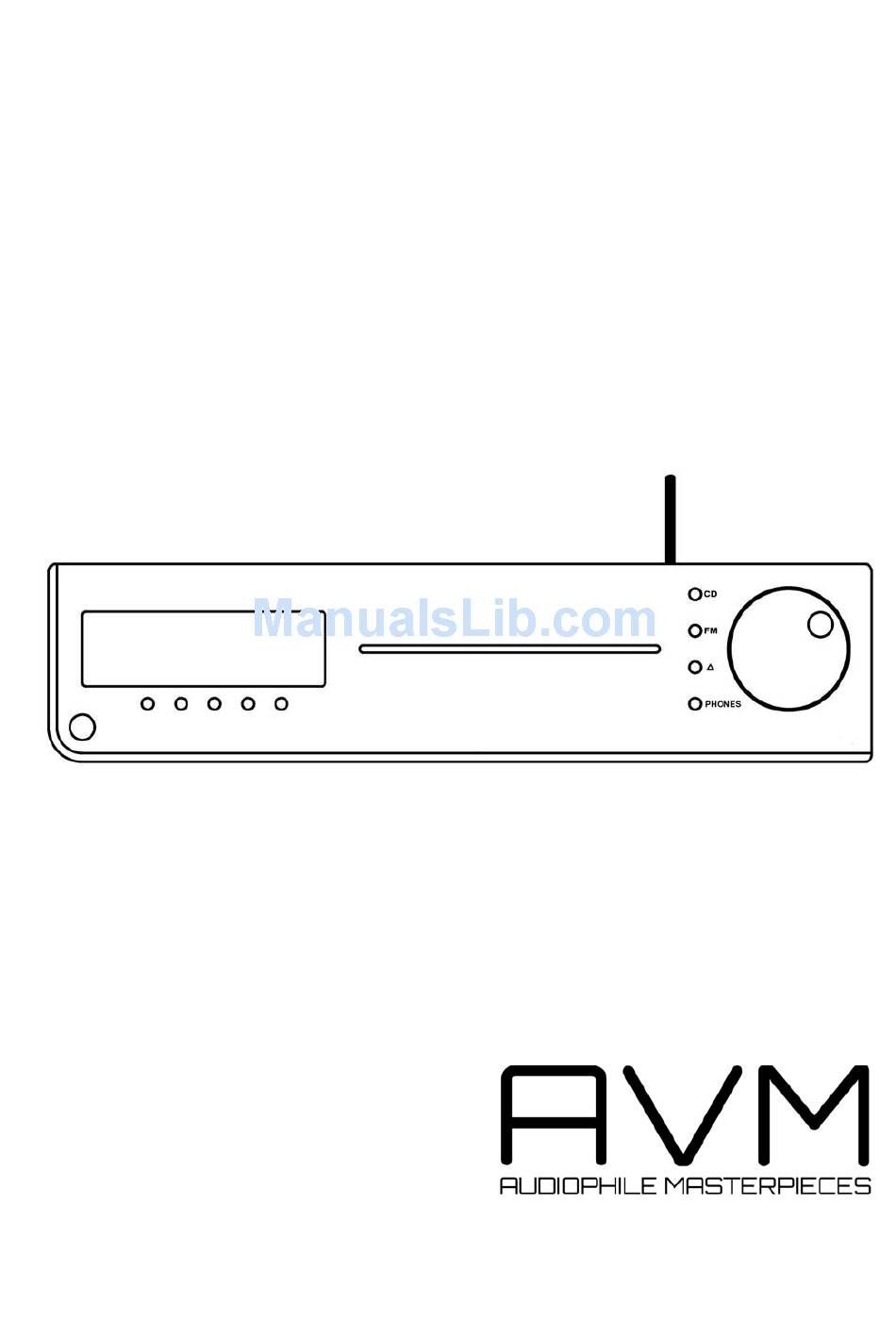

  • Page 1 Operating instructions INSPIRATION CS 2.2...
  • Page 3 Declaration of conformity (for EC only) We herewith confirm, that the unit to which this manual belongs fulfills the EC rules necessary to obtain the sign the necessary measurements were taken with positive results. AVM Audio Video Manufaktur GmbH Daimlerstraße 8 D-76316 Malsch Germany www.avm.audio...

  • Page 4: Dear Customer

    CS 2.2 in the optimal way. Please note that the range of functions of your AVM hifi component can be easily expanded by means of a software update at any time. Hence, the present operating instructions will require continued updates going forward.

  • Page 5: Table Of Contents

    Table of contents Getting started ........................6 What’s in the box? ......................6 Control and operating elements ................... 6 Installation and cooling ....................7 Connection to mains ....................7 Connecting analogue signal sources ................7 Connecting digital signal sources ................. 8 Connecting a recorder ....................

  • Page 6: Getting Started

    1 Getting started 1.1 What’s in the box? • INSPIRATION CS 2.2 Compact Streaming CD-Receiver • WiFi antenna • Power cable • Optional accessory: RC 9 remote control with docking station, power supply unit, USB charging cable CAUTION: After unpacking, please check the scope of delivery to ensure that all parts have been supplied and are undamaged.

  • Page 7: Installation And Cooling

    15 Antenna socket 25 Output for recorder (fixed level) 16 Ground socket for turntable chassis 26 Preamplifier output 27 Configuration port 17 Network port (LAN) 28 Speaker terminals 18 Phono input 29 Digital input coaxial 19 High-level analogue inputs 30 Digital input optical 20 Status LED 31 Digital output coaxial 21 Update button (Streaming module)

  • Page 8: Connecting Digital Signal Sources

    Turntable Connect the output of your turntable with phono inputs (18) and connect the chassis ground wire to the ground connector (16). The CS 2.2 phono input is suitable for MM cartridges as well as for high and medium level MC cartridges. Sensitivity can be adjusted (see 2.4.1). 1.6 Connecting digital signal sources Inputs SPDIF/ (RCA Cinch, optical) Connect the outputs of your digital sources to the corresponding inputs of the CS 2.2 (29,...

  • Page 9: Rc 9 Remote Control

    Settings key and navigate to the menu item Start Pairing without selecting it with the Enter key yet. Switch on your AVM device by using the mains switch (33) on the rear side of the unit and immediately press the Enter key of your RC 9 remote control to now start the Pairing process.
  • Page 10 ü Please switch off the AVM device on the rear side of the unit (33). ü Plug a LAN cable from your local router into the LAN port of the AVM device (17). ü Switch on the device on the rear side of the unit (33). Wait until the device has started and went into stand by mode.
  • Page 11 ü Please switch off your AVM device on the rear side of the unit (33). ü Plug a LAN cable from your local router into the LAN port of your AVM device (17). ü Switch on the device on the rear side of the unit (33). Wait until the device has started and went into stand by mode.
  • Page 12 ü Navigate to the Settings tab on the RC S App and choose Device Settings / Network / Configure WiFi. ü After you have selected the SSID menu option, you will be provided with a list of all available WiFi networks. Choose a WiFi network and select a respective Security and Cipher setting.
  • Page 13 Now, confirm your WiFi settings with Apply at the upper right-hand corner. ü Under DHCP, you will be asked if your AVM devide should obtain an IP adress automatically (if yes, please make sure the DHCP option is activated). Now, confirm your choice with Apply at the upper right-hand corner and remove the LAN cable from the LAN port (17) right afterwards.

  • Page 14: Software Updates

    1.14 Software updates To get the most out of your AVM HiFi streaming system, please make sure you always keep the RC S App and the streaming software of your AVM device up-to-date. You can download the latest version of the RC S App in the...

  • Page 15: Basic Operation

    2 Basic operation 2.1 First operation / self test In case the CS 2.2 was not connected to mains a self test will be performed when it is switched on by the mains switch (33) for the first time. The unit will check its configuration and that all the installed components work properly.

  • Page 16: Fm Tuner

    2.4.1 Setting of input sensitivity The level of signal sources differs often by several dBs. You recognize a step in volume, when switching between two different inputs. With the sensitivity setting menu you can avoid this. The sensitivity of each input can be adjusted between – 9.5 dB and + 10.0 dB. Select any input (except Tuner or CD) and chose a convenient volume level.

  • Page 17: Cd Player

    Modifying, moving or deleting an existing station If the tuner is set to an already stored station you can change its settings (mono/stereo, bandwidth and more), move it to a different position or delete it. First off, adjust any advanced setting for a stored radio station and press the MENU button (6) under the display (3) for more than 2 seconds.
  • Page 18 2.6.2 PLAY, PAUSE, STOP Pressing PLAY (8) starts the player. While playing, the same button changes its function to PAUSE. While the player is playing, the button (7) under the display shows the STOP symbol. When the player is stopped, this button changes its function to the EJECT symbol. 2.6.3 SEARCH / SKIP While the player is stopped, the two buttons on the left (4, 5) can be used to select a title.

  • Page 19: Advanced Settings

    • Now add this track to the playlist by pressing ADD (6). • Select title 3 using the buttons < SELECT > (4, 5). The display now shows "TRCK 3/15" in the upper left corner. • Now add this track to the playlist by pressing ADD (6). •...
  • Page 20 COUNTOUR = OFF) the set tone control option remains ready for operation without processing the signal. You can choose if you want to change bass and treble settings simultaneously for all inputs (GLOBAL) or exclusively for the currently selected input (INDIVIDUAL).

  • Page 21: Fm-Tuner

    3.2 FM-Tuner 3.2.1 Set RDS display Choose if the name of the radio station (NAME), or the frequency (FREQUENCY) is shown on the display. 3.2.2 Set scan mode Set tuning mode between AUTO or MANUAL. After pressing one of the buttons 7 and 8, AUTO searches for the nearest available radio station.
  • Page 22 NOTE: The setting 100% can lead to "burn in" effects on the display if the unit is operated in this setting for a very long time. In order to avoid such "burn in effects" please switch the unit to stand by, if not in use. 3.3.2 Bass &...

  • Page 23: Reset (Factory Default Settings)

    3.3.7 Set autoplay When set autoplay is activated, the CD player will start playing automatically every time a CD is inserted. If set autoplay is deactivated, the player will read the TOC of the inserted disc and then go to STOP mode. 3.3.8 Set IR control In addition to control the CS 2.2 via the optionally available RC 9 remote control or the free...

  • Page 24: Appendix

    4 Appendix 4.1 Cleaning Use a soft cloth and normal glass cleansing fluid. CAUTION Make sure that no fluid comes into the unit. Do not use scouring cleaners. They may damage the surface. 4.2 Troubleshooting Some putative defects are often caused by mistakes in operation. Sometimes other units connected to the amplifier can cause problems.

  • Page 25: Conditions Of Warranty (Ec Only)

    5. The display shows „no disc“ although a CD is inserted a) Please make sure the CD is not a data disc, has not been damaged and is inserted with the correct side facing up b) Please clean your CD with a soft cleaning cloth 6.

  • Page 26: Technical Data

    5 Technical Data 5.1.1 Amplifier Sensitivity 12,5 mV - 50 mV- 125 mV (for 25 W / 4 Ω, adjustable) Sensitivity Phono 40µV - 160µV - 400µV (for 25 W / 4 Ω, adjustable) Input impedance 6,8 kΩ Input impedance Phono 47 kΩ...
  • Page 27 5.1.4 Streaming Streaming Formats MP3, WMA, AAC, OGG Vorbis, FLAC (192/24 via LAN), WAV (192/24 via LAN), AIFF (192/24 via LAN), ALAC (96/24 via LAN) Supported Formats UPnP, 1.1, UPnP-AV and DLNA compatible Server, Microsoft Windows Media, Connect Server (WMDRM 10), DLNA compatible Server: NAS Streaming Services TIDAL, Qobuz...
