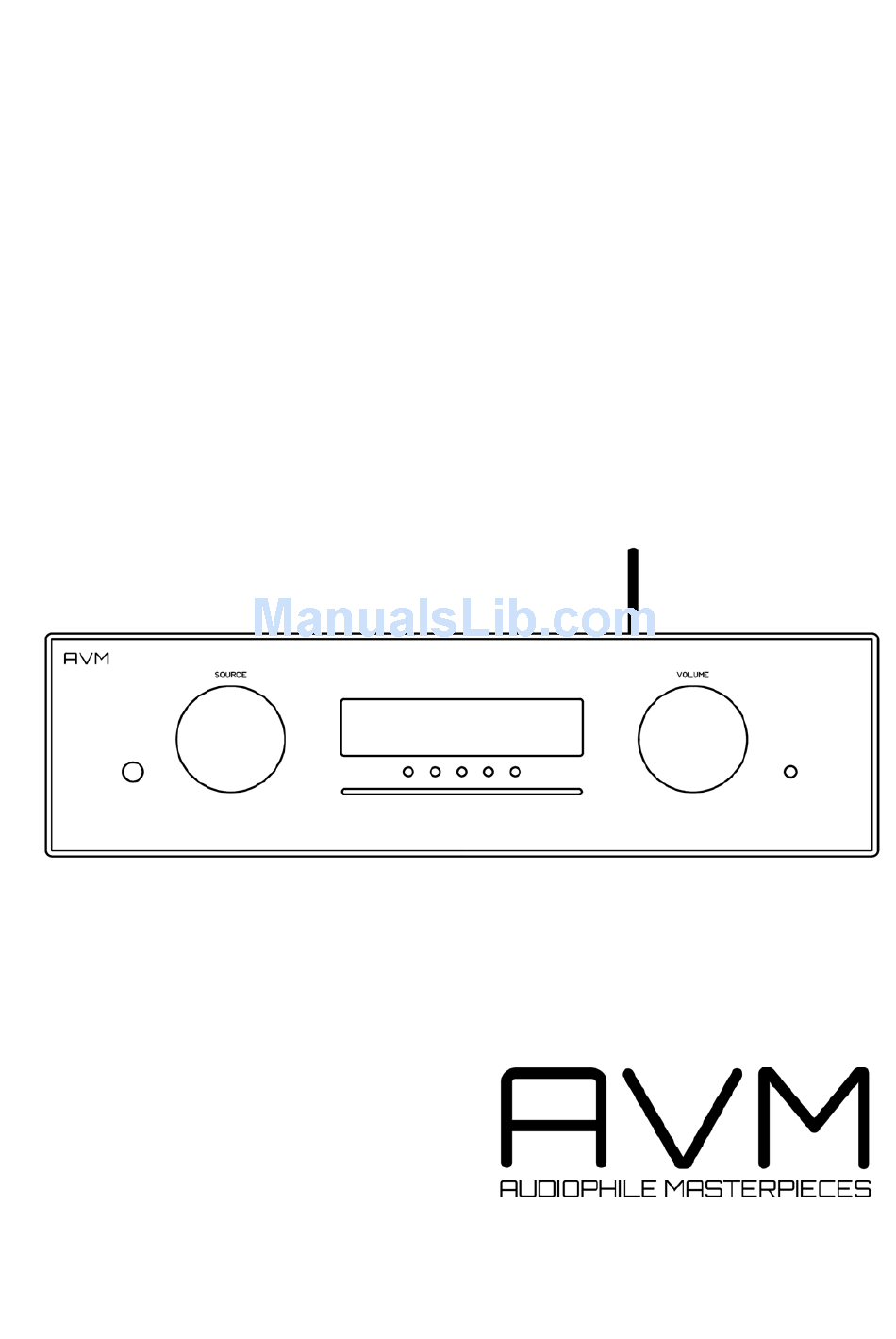

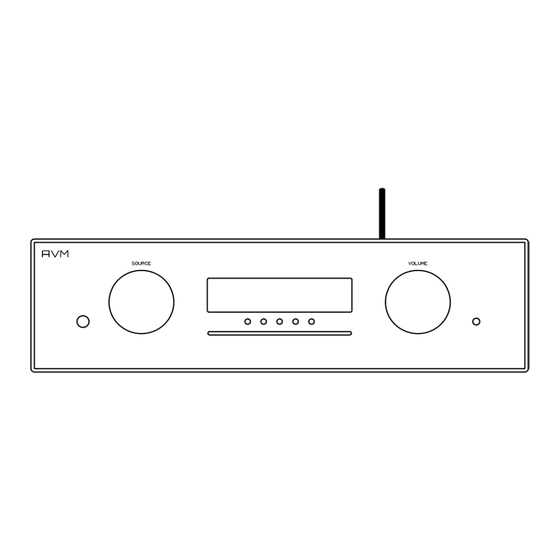

  • Page 1 Operating instructions OVATION CS 6.2 OVATION CS 8.2...
  • Page 3 Declaration of conformity (for EC only) We herewith confirm, that the unit to which this manual belongs fulfills the EC rules necessary to obtain the sign the necessary measurements were taken with positive results. AVM Audio Video Manufaktur GmbH Daimlerstraße 8 D-76316 Malsch Germany www.avm.audio...

  • Page 4: Dear Customer

    CS 6.2 / 8.2 in the optimal way. Please note: The range of functions of your AVM hifi component can be easily expanded by means of a software update at any time. Hence, the present operating instructions will require continued updates going forward.

  • Page 5: Table Of Contents

    Table of contents Getting started ........................6 What’s in the box? ......................6 Control and operating elements ................... 6 Installation and cooling ....................7 Connection to mains ....................7 Connections of analog sources ..................8 Connection of digital sources ..................8 Connection of analog recording devices ..............

  • Page 6: Getting Started

    1 Getting started 1.1 What’s in the box? • OVATION CS 6.2 / 8.2 Compact Streaming CD-Receiver • WiFi antenna • Power cord (in some countries) • Optional accessory: RC 9 remote control with docking station, power supply unit, USB charging cable CAUTION: After unpacking, please check the scope of delivery to ensure that all parts have been supplied and are undamaged.

  • Page 7: Installation And Cooling

    13 Analogue outputs (XLR) 25 LAN port (Ethernet) 14 Analogue outputs (RCA/CINCH VAR) 26 Reset button (Streaming module) 15 Analogue outputs (RCA/CINCH FIX) 27 Update button (Streaming module) 16 Analogue input (XLR) 28 Status LED 17 Analogue input (RCA/CINCH) 29 Mains connector 18 Antenna socket (FM Tuner) 30 Mains switch 19 Speaker terminal right...

  • Page 8: Connections Of Analog Sources

    1.5 Connections of analog sources Connect the outputs of your analog sources to the corresponding inputs (16, 17). The left channel goes to the upper row, the right channel to the bottom row. 1.6 Connection of digital sources Connect the output of your digital sources with the corresponding input (22): USB-B input (USB), optical inputs (OPTO 1, OPTO 2), coaxial input (COAX).

  • Page 9: Rc 9 Remote Control

    RC 9 remote control can be found in a separate manual on the RC 9 product page on our website at www.avm.audio. By pressing the Enter key on your RC 9 remote control again, the pairing process is completed.
  • Page 10 ü Launch the RC S App on your smartphone or tablet. The RC S App will now automatically search and list all available AVM devices in your local network with their respective device name and IP adress (e.g. "192.168.xxx.x" etc.).
  • Page 11 ü Launch the RC S App on your smartphone or tablet. The RC S App will now automatically search and list all available AVM devices in your local network with their respective device name and IP adress (e.g. "192.168.xxx.x" etc.).
  • Page 12 ü Navigate to the Settings tab on the RC S App and choose Device Settings / Network / Configure WiFi. ü After you have selected the SSID menu option, you will be provided with a list of all available WiFi networks. Choose a WiFi network and select a respective Security and Cipher setting.
  • Page 13 ü Choose the menu option Password and enter your WiFi password. Confirm with Done at the upper right-hand corner. Now, confirm your WiFi settings with Apply at the upper right-hand corner. ü Under DHCP, you will be asked if your devide should obtain an IP adress automatically (if yes, please make sure the DHCP option is activated).

  • Page 14: Software Updates

    1.15 Software updates To get the most out of your AVM HiFi streaming system, please make sure you always keep the RC S App and the streaming software of your device up-to-date. You can download the latest version of the RC S App in the...

  • Page 15: Volume Settings

    Online Services (TIDAL, Qobuz, Webradio, Podcasts), Music Server or USB (STICK HDD) (24) can only be accessed via the optional RC 9 remote control or the free RC S App for iOS and Android. CAUTION: If you switch to another source while playing a CD, the drive will stop first. This may take a few seconds.

  • Page 16: Digital Inputs (Coax, Opto, Usb)

    ‘detour’ is that both the CD Player and the FM Tuner host dedicated menus when the menu button MENU under the display is pressed for more than 2 seconds: CD Player: Programming an individual playlist (see 2.6.5). FM Tuner: Station and memory (see 2.7.2). NOTE: If you should recognize a (slightly) distorted sound while listening to a CD Player which is connected to one of the analog high-level inputs (16,17), please adjust the input sensitivity of the respective input as described above.

  • Page 17: Cd Player

    Bit (PCM) without the need to install an audio driver on your Mac. If you are using a Windows PC you will need to install an additional driver which is available for download on the respective product page at www.avm.audio. Please note that you need to select the HI RES mode in order to play back DSD64 or DSD128 files.
  • Page 18 2.6.3 SKIP / SEARCH (selecting a title, search mode) Using the menu buttons |<< or >>| (SKIP) you can easily access any title on the disc. When you press one of the SKIP buttons for longer than a second while the unit is playing, the CD Player will start to play in fast forward or reverse mode as long as the current track is playing.

  • Page 19: Fm Tuner

    • Now add this track to the playlist by pressing the menu button ADD. • Now press the menu button STORE to finish the programming and store the playlist. Deleting an existing playlist Press MENU for more than 2 seconds. Then press DEL PGM and the playlist is deleted. 2.6.6 Random To activate the RANDOM mode press MENU for more than 2 seconds.

  • Page 20: Advanced Settings

    more than two seconds. Using the menu buttons MOVE allows you to change the position of the selected station before storing with the menu button STORE. DELETE will remove the station from the memory. EXIT will bring the unit back to normal operating mode without changing the memory.
  • Page 21 (INDIVIDUAL). If you wish to set individual settings, a prior parameterization of the respective sound sources is required first (see 3.4.2). The loudness option depends on speakers and properties of the listening room and is therefore always set to GLOBAL. NOTE: In case tone control is set to BYPASS the menu will skip the set bass, set treble and set loudness settings.

  • Page 22: Line Einstellungen (Xlr, Rca)

    3.2 Line Einstellungen (XLR, RCA) 3.2.1 Set input attenuation Set input attenuation allows for an attenuation of 6 dB of the selected line input (16, 17) which corresponds to an electrical halving of the incoming level. Activating this function might be useful when CD players with particularly high output levels are used which otherwise cause unwanted distortion.

  • Page 23: Personal Setup

    3.4 Personal Setup The personal setup offers a range of settings to individualize your device according to your personal needs. To enter the personal setup menu, please switch off your device on the rear of the unit at the mains switch (30). Keep the far right menu button under the display pressed (9) while you switch on the unit again (30).

  • Page 24: Reset (Factory Default Settings)

    3.4.5 gain fix / variable If a surround system is connected to the device, specific settings such as channel balance, tone settings and bass management are controlled by a separate decoder. These settings may not be altered by other components in order to maintain the balance of all channels. For this application, your device offers the gain fix function by both passing through the signal with a fixed gain setting and bypassing all sound control settings (see 3.1.1).

  • Page 25: Appendix

    4 Appendix 4.1 Cleaning Use a soft cloth and normal glass cleansing fluid. CAUTION: Make sure that no fluid comes into the unit. Do not use scouring cleaners. They may damage the surface. 4.2 Troubleshooting Some putative defects are often caused by mistakes in operation. Sometimes other units connected to the amplifier can cause problems.

  • Page 26: Conditions Of Warranty (Ec Only)

    4.3 Conditions of warranty (EC only) If despite expectations a defect occurs that cannot be repaired by yourself or your dealer, we undertake the repair of your unit free of charge for up to three years from date of purchase. The warranty covers the costs of material and working time, transport costs are to be borne by the owner.

  • Page 27: Technical Data

    5 Technical Data 5.1 Preamplifier Sensitivity (1V output voltage) 20 mV bis 360 mV (adjustable) Input impedance 6,8 kOhm Input sensitivity 3,6 V 5.2 Amplifier Output power > 2 x 500 Watt (4 Ω) 5.2.1 Digital input Samplerate upsampling / downsampling (switchable up to 384 kHz / 32 bit Frequency response <20 Hz –...
  • Page 28 5.2.3 CD-Player Formats CD Audio, CDR (according to red book standard) Sampling Frequency Upsampling to 192 kHz / 24 Bit Frequency response <20 Hz – 20 kHz Deemphasis yes, automatically 5.2.4 Streaming-Funktionalitäten Streaming Formats MP3, WMA, AAC, OGG Vorbis, FLAC (192/24 via LAN), WAV (192/24 via LAN), AIFF (192/24 via LAN), ALAC (96/24 via LAN) Supported Formats UPnP, 1.1, UPnP-AV and DLNA compatible...
