3. SEPA CF CELL ASSEMBLY

After verifying that all of the necessary components were shipped and present, you can
begin the assembly of the Sepa CF Cell.
3.1 CELL BODY ASSEMBLY
The cell body consists of the cell top, membrane filter, feed spacer/ permeate carriers
(optional), shims (optional), O-rings, and cell bottom. Figure 1 illustrates a typical assembly
of the cell body.

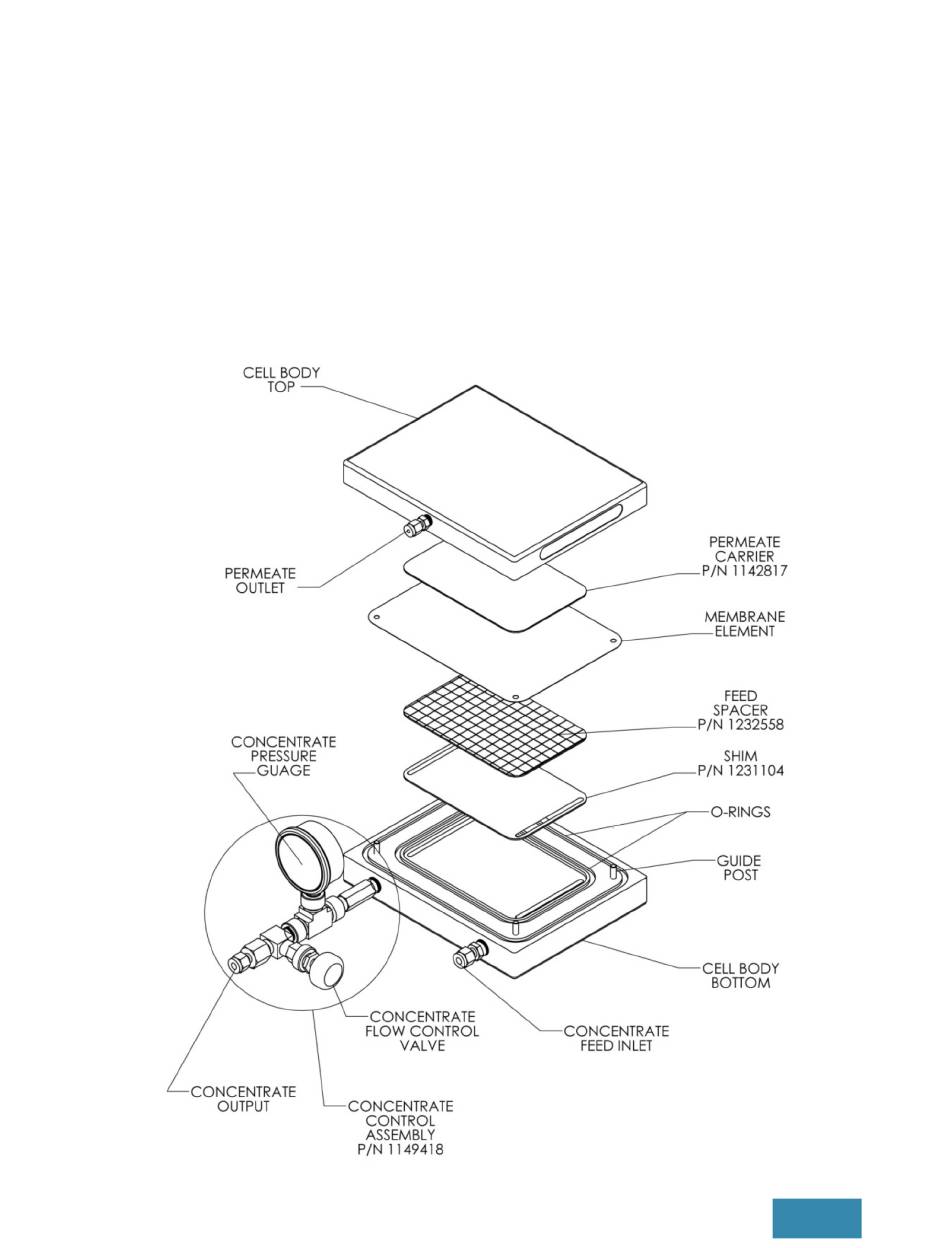

Figure 1: Typical Sepa CF Cell Body Assembly
4
Sepa CF Cell Manual | Sterlitech Corporation
