8. Once the cell body is assembled and the quick release connector is installed into the
cell holder (See Cell Holder Assembly below), insert the cell body into the cell holder until
it rests against the two stops in the cell holder.
Caution:
The Cell Body is very heavy: 14.5 kg (32 lbs).

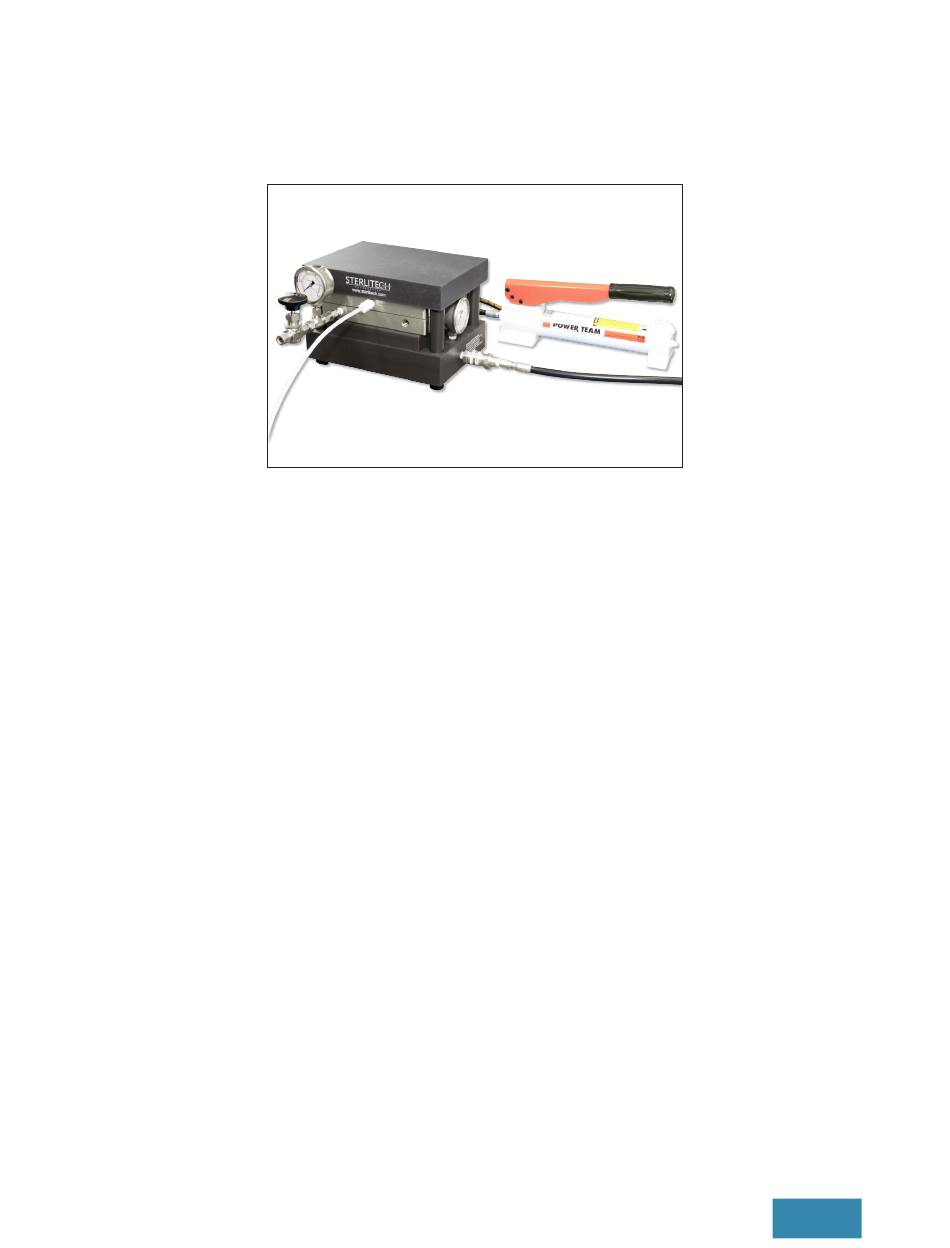

3.2 CELL HOLDER ASSEMBLY
The cell holder is filled with Mobil DTE 20 Series Hydraulic Oil to operate the hydraulic
piston. Before using the SEPA CF Cell for the first time, the brass quick release connector
must be installed into the cell holder.
To install the quick release connector into the cell holder:
1. Wrap PTFE tape clockwise around the threads of the brass fitting while the open end is
facing you.
2. Move the cell holder into a vertical position with the shipping plug and/or pressure
gauge facing upward.*
3. Carefully remove the shipping plug in the hydraulic port of the cell holder.
4. Place the brass quick release connector into the hydraulic port.
5. Tighten the brass fitting with an open ended wrench (1" wrench is suggested).
*
Caution:
Attempting to install the brass quick release connector with the cell in the
wrong position will cause the hydraulic fluid to spill.
Sepa CF Cell Manual | Sterlitech Corporation
8
