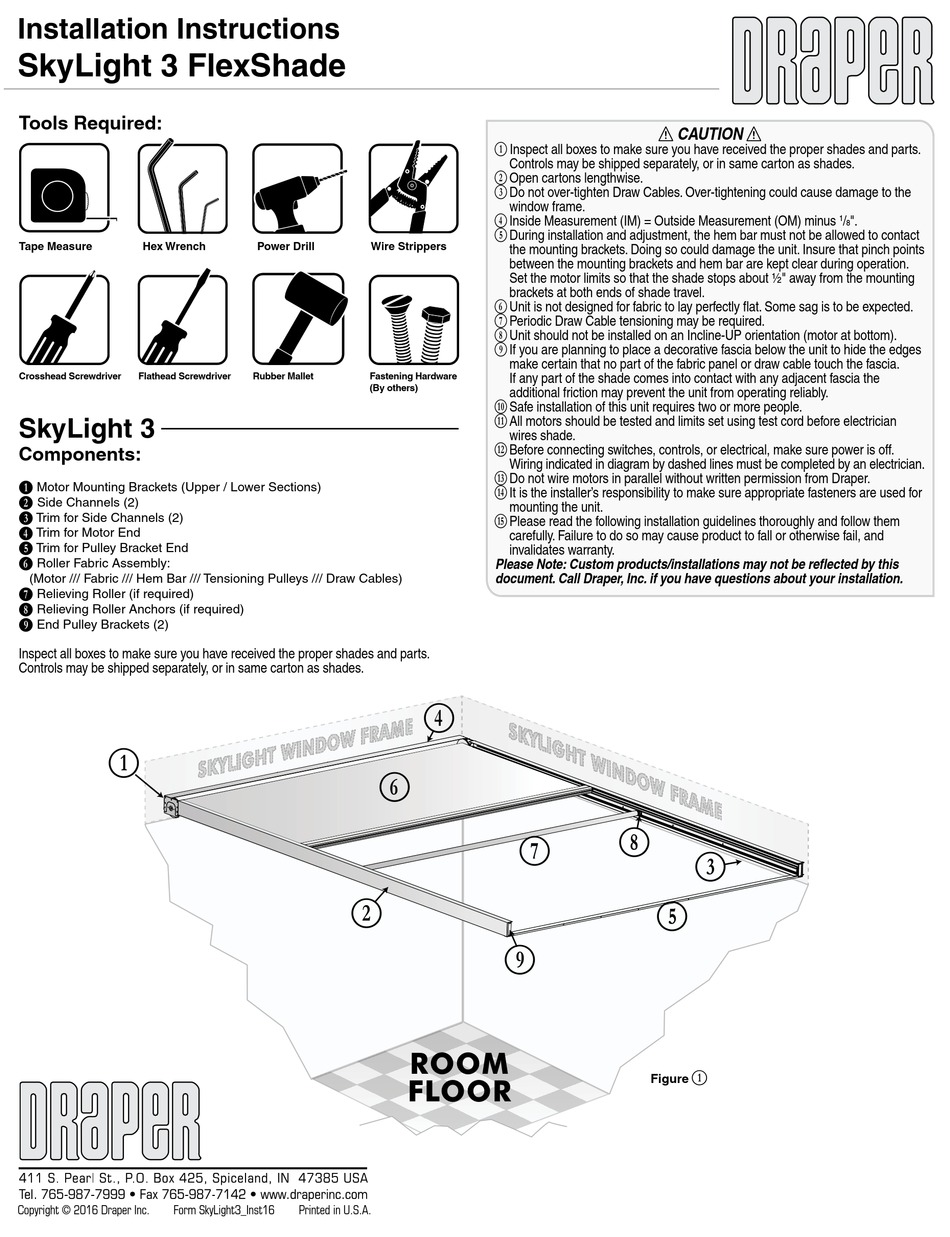

Installation Instructions

SkyLight 3 FlexShade

Tools Required:

Tape Measure
Hex Wrench
Crosshead Screwdriver
Flathead Screwdriver
SkyLight 3

Components:

(1) Motor Mounting Brackets (Upper / Lower Sections)
(2) Side Channels (2)
(3) Trim for Side Channels (2)
(4) Trim for Motor End
(5) Trim for Pulley Bracket End
(6) Roller Fabric Assembly:
(Motor /// Fabric /// Hem Bar /// Tensioning Pulleys /// Draw Cables)
(7) Relieving Roller (if required)
(8) Relieving Roller Anchors (if required)
(9) End Pulley Brackets (2)
Inspect all boxes to make sure you have received the proper shades and parts.
Controls may be shipped separately, or in same carton as shades.
B
Copyright © 2016 Draper Inc.
Form SkyLight3_Inst16
Power Drill
Wire Strippers
Rubber Mallet
Fastening Hardware
(By others)
F R A
I N D O W
I G H T W
L
K Y
S
C
Printed in U.S.A.
Inspect all boxes to make sure you have received the proper shades and parts.
(1)
Controls may be shipped separately, or in same carton as shades.
Open cartons lengthwise.
(2)
Do not over-tighten Draw Cables. Over-tightening could cause damage to the
(3)
window frame.
Inside Measurement (IM) = Outside Measurement (OM) minus
(4)
During installation and adjustment, the hem bar must not be allowed to contact
(5)
the mounting brackets. Doing so could damage the unit. Insure that pinch points
between the mounting brackets and hem bar are kept clear during operation.
Set the motor limits so that the shade stops about ½" away from the mounting
brackets at both ends of shade travel.
Unit is not designed for fabric to lay perfectly flat. Some sag is to be expected.
(6)
Periodic Draw Cable tensioning may be required.
(7)
Unit should not be installed on an Incline-UP orientation (motor at bottom).
(8)
If you are planning to place a decorative fascia below the unit to hide the edges
(9)
make certain that no part of the fabric panel or draw cable touch the fascia.
If any part of the shade comes into contact with any adjacent fascia the
additional friction may prevent the unit from operating reliably.
Safe installation of this unit requires two or more people.
(10)
All motors should be tested and limits set using test cord before electrician
(11)
wires shade.
Before connecting switches, controls, or electrical, make sure power is off.
(12)
Wiring indicated in diagram by dashed lines must be completed by an electrician.
Do not wire motors in parallel without written permission from Draper.
(13)
It is the installer's responsibility to make sure appropriate fasteners are used for
(14)
mounting the unit.
Please read the following installation guidelines thoroughly and follow them
(15)
carefully. Failure to do so may cause product to fall or otherwise fail, and
invalidates warranty.
Please Note: Custom products/installations may not be reflected by this
document. Call Draper, Inc. if you have questions about your installation.
E
E
S K Y
M
L I G H
G
H
J
ROOM
FLOOR
CAUTION
T W
I N
D O W
F
R
A
M E
I
D
F
Figure (1)
/
".
1
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade SkyLight 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Draper FlexShade SkyLight 3

  • Page 1: Installation Instructions

    Components: (12) Wiring indicated in diagram by dashed lines must be completed by an electrician. Do not wire motors in parallel without written permission from Draper. (13) (1) Motor Mounting Brackets (Upper / Lower Sections) It is the installer’s responsibility to make sure appropriate fasteners are used for...
  • Page 2 SkyLight 3 Installation Instructions Installing Mounting Brackets Installing End Pulley Brackets Two (2) Roller Mounting Brackets are shipped assembled Part One: Insert Relieving Roller Anchor and will need to be separated prior to installation. Before inserting the Relieving Roller Anchor, confirm measurements on the card provided with the shade.
  • Page 3 SkyLight 3 Installation Instructions Installing Roller/Fabric Assembly Part Three: Installing Roller Fabric Assembly - (2 installers REQUIRED) (1) Lift the entire Roller Assembly up near the Motor Mounting Brackets and Part One: Attaching Lower Sections of Motor Bracket (see fig. 7) insert the Hem Bar Rollers into the Side Channels (see Fig.
  • Page 4 SkyLight 3 Installation Instructions Draw Cable Routing The diagram below shows the proper path of the Draw Cables (see fig 11). Before Routing Cable - Side View Shade Fabric (attached to Hem Bar) End Bracket Pulleys Hem Bar in Side Channel Tensioning Pulley Figure (11) Draw Cables...
  • Page 5 DO NOT wire motors in parallel without written permission from Draper. All operating switches should be “off” before power is connected.
  • Page 6 SkyLight 3 Installation Instructions SkyLight 3 Dimensions Top View - Open Position Shade Length Stay and Seam Placement 2” (if Required) Center Roller Diameter 1½” 3¼” Width 3¼” 10¼” Fully Open This Side Faces the Window Side View 4½” ” 110-120V Sonesse ILT 50 Shade Wiring Diagram Single Low Voltage Control Multiple Low Voltage Controls...
