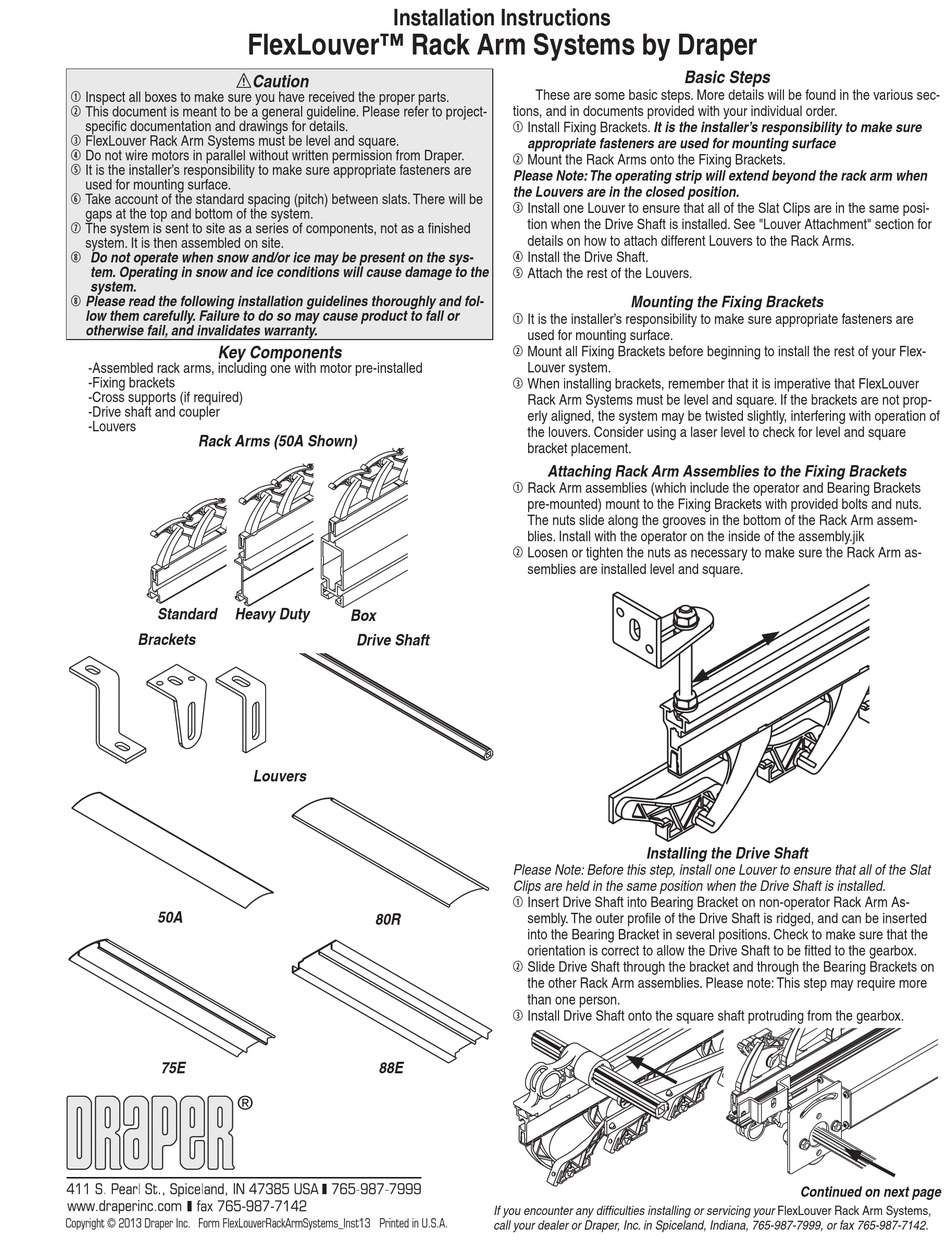

Draper FlexLouver 50A Installation Instructions

1 Inspect all boxes to make sure you have received the proper parts.
2 This document is meant to be a general guideline. Please refer to project-
specific documentation and drawings for details.
3 FlexLouver Rack Arm Systems must be level and square.
4 Do not wire motors in parallel without written permission from Draper.
5 It is the installer's responsibility to make sure appropriate fasteners are
used for mounting surface.
6 Take account of the standard spacing (pitch) between slats. There will be
gaps at the top and bottom of the system.
7 The system is sent to site as a series of components, not as a finished
system. It is then assembled on site.
8 Do not operate when snow and/or ice may be present on the sys-
tem. Operating in snow and ice conditions will cause damage to the
system.
8 Please read the following installation guidelines thoroughly and fol-
low them carefully. Failure to do so may cause product to fall or
otherwise fail, and invalidates warranty.
Key Components
-Assembled rack arms, including one with motor pre-installed
-Fixing brackets
-Cross supports (if required)
-Drive shaft and coupler
-Louvers
Rack Arms (50A Shown)
Standard Heavy Duty
Brackets
50A
75E
®
Copyright © 2013 Draper Inc. Form FlexLouverRackArmSystems_Inst13 Printed in U.S.A.

Installation Instructions

FlexLouver™ Rack Arm Systems by Draper
Caution
Box
Drive Shaft
Louvers
80R
88E
These are some basic steps. More details will be found in the various sec-
tions, and in documents provided with your individual order.
1 Install Fixing Brackets. It is the installer's responsibility to make sure
appropriate fasteners are used for mounting surface
2 Mount the Rack Arms onto the Fixing Brackets.
Please Note: The operating strip will extend beyond the rack arm when
the Louvers are in the closed position.
3 Install one Louver to ensure that all of the Slat Clips are in the same posi-
tion when the Drive Shaft is installed. See "Louver Attachment" section for
details on how to attach different Louvers to the Rack Arms.
4 Install the Drive Shaft.
5 Attach the rest of the Louvers.
Mounting the Fixing Brackets
1 It is the installer's responsibility to make sure appropriate fasteners are
used for mounting surface.
2 Mount all Fixing Brackets before beginning to install the rest of your Flex-
Louver system.
3 When installing brackets, remember that it is imperative that FlexLouver
Rack Arm Systems must be level and square. If the brackets are not prop-
erly aligned, the system may be twisted slightly, interfering with operation of
the louvers. Consider using a laser level to check for level and square
bracket placement.
Attaching Rack Arm Assemblies to the Fixing Brackets
1 Rack Arm assemblies (which include the operator and Bearing Brackets
pre-mounted) mount to the Fixing Brackets with provided bolts and nuts.
The nuts slide along the grooves in the bottom of the Rack Arm assem-
blies. Install with the operator on the inside of the assembly.jik
2 Loosen or tighten the nuts as necessary to make sure the Rack Arm as-
semblies are installed level and square.
Installing the Drive Shaft
Please Note: Before this step, install one Louver to ensure that all of the Slat
Clips are held in the same position when the Drive Shaft is installed.
1 Insert Drive Shaft into Bearing Bracket on non-operator Rack Arm As-
sembly. The outer profile of the Drive Shaft is ridged, and can be inserted
into the Bearing Bracket in several positions. Check to make sure that the
orientation is correct to allow the Drive Shaft to be fitted to the gearbox.
2 Slide Drive Shaft through the bracket and through the Bearing Brackets on
the other Rack Arm assemblies. Please note: This step may require more
than one person.
3 Install Drive Shaft onto the square shaft protruding from the gearbox.
If you encounter any difficulties installing or servicing your FlexLouver Rack Arm Systems,
call your dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999, or fax 765-987-7142.
