peerless-AV SMARTMOUNT Series Assembly And Installation Instructions

SF684VL2
SF684VL3
SF684VL2:
90.2 – 154lb
Max load
(41 – 70kg)

Additional Features

Display height can be adjusted up to
•
15.75" (400mm) with the touch of a
finger
Integrated cable management protects,
•
contains and conceals cables for a clean,
professional installation
Textured black powder coat finish
•
helps to hide finger prints and dust,
while stainless steel accents provide an
attractive appearance
Open frame adaptor helps prevent
•
display input interference
Universal display adaptor fits mounting
•
patterns from 200 x 200mm to 600 x
400mm
Maintenance-free solution
•
SF684VL2 accomodates displays
•
weighing from 90.2 – 154lb (41 – 70kg)
SF684VL3 accomodates displays
•
weighing from 145.2 – 209lb (66 – 95kg)
Please visit peerless-av.com/en-us/patents for patent information.
info@peerless-av.com
peerless-av.com

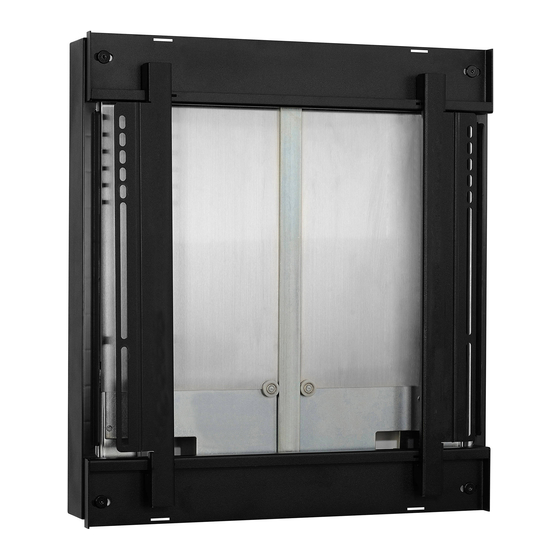

Flat Wall Mount
With Vertical Lift
FOR 90.2 – 154LB & 145.2 – 209LB INTERACTIVE DISPLAYS
The SF684VL2 and SF684VL3 SmartMount
mount and move an interactive display. Innovative lift technology allows you to raise or
lower a display up to 15.75" (400mm) with a lift of a finger. This allows the display height
to be set to your preference instantly. Security hardware ensures a safe, tamper resistant
SF684VL3:
installation. The stainless steel accents and black powder coat finish provide nice aesthetics
145.2 – 209lb
to complement this highly functional solution ideal for any touchscreen application.
(66 – 95kg)
The Peerless-AV
provides seamless interaction between technology and the user.
Flat Wall Mounts were designed to safely
®
Interactive Mount is a flexible solution that
®
Side View
Innovative lift technology allows you to safely raise or
lower a display up to 15.75" with just a finger
VERTICAL LIFT
Raise or lower the display
to your preferred height
with a light touch
UL LISTED
®
Provides the highest
level of safety
