DS-VW775
Display size
46"-60"
Additional Features
Accommodates displays
•
in landscape and portrait
orientation
Integrated cable management
•
allow cables to move in and out
with the display
Modular mount for unlimited
•
video wall display configurations
Security hardware option deters
•
tapering and theft
Compatible up to VESA
•
x 400mm; Please see the
accessory list for 600 x 400mm
compatible adaptors
Please visit peerless-av.com/en-us/patents for patent information.
info@peerless-av.com
peerless-av.com
Supreme Full Service

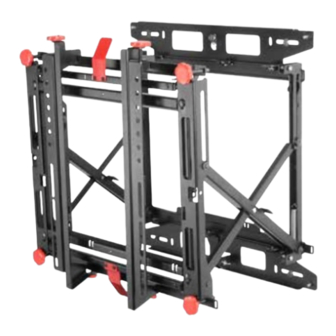

Video Wall Mount
FOR 46" TO 60" DISPLAYS
Peerless-AV's Supreme Full Service Video Wall Mount raises the bar of excellence with an
enhanced feature set centered on ease of install and display alignment. With the addition
of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment
on each of the X, Y and Z axis. Serviceability is easier than ever before with single hand
Max load
pop-out release features on the top and bottom of the mount. Reusable spacers can be
125lb (56.8kg)
used for both portrait and landscape applications resulting in a faster install and lower
cost. Enhanced cable management allows the cables to effortlessly travel in and out
with the display, while the quick release accessory provides quick access in recessed
applications without risking display damage or searching for hidden pull strings.
400
®
With the addition of toolless lateral adjustment, the
Supreme offers more micro-adjustment than ever before.
NO TOOLS REQUIRED
FOR MICRO-ADJUSTMENT
1.5" of travel on each x, y and z axis
EASY HANG WALL PLATE
Compatible with the Peerless-AV
install app for a simplified install
CONVENIENT SERVICE
POP-OUT
Quickly release the mount
for service with a simple
turn of the lever
QUICK RELEASE
ACCESSORY AVAILABLE
Releases a recessed display
for service without pressing
on the front of the display
REUSABLE CUSTOM
WALL SPACERS
Eliminate guesswork and
on-site installation calculations
Eliminate the guesswork during
installation with the Peerless-AV
Video Wall Locator app.
®
