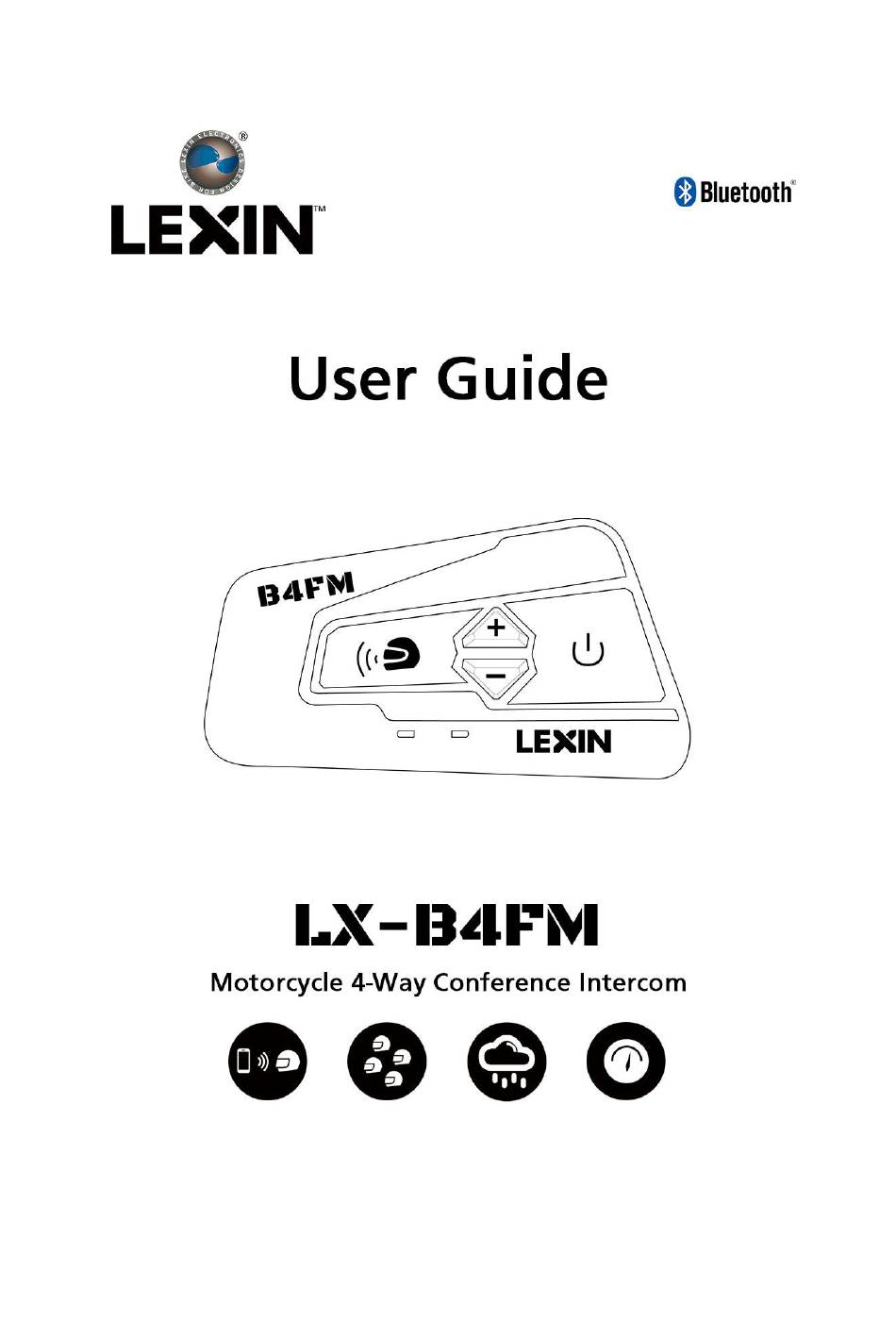

LEXIN LX-B4FM User Manual

LEXIN LX-B4FM User Manual

Motorcycle 4-way conference intercom

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX-B4FM and is the answer not in the manual?

Questions and answers

Summary of Contents for LEXIN LX-B4FM

  • Page 2: Table Of Contents

    Table of Contents 1.Introduction...................1 2.Package Contents...............2-3 3.Installation Instructions............3-5 4.General Operation Instructions..........5-6 - Powering On/Off and Charging - Pairing LX-B4FM with a Bluetooth Device 5.Controls and Functions............6-15 6.Maintenance and Care............15-16 7.Certification and Safety Approvals...........16 8.Warranty.................16-17 9.Waiver and General Release............17...
  • Page 3: Introduction

    Bluetooth stereo wireless helmet headset(s), and is designed for installation into most open face, modular, and full-face style helmets. With the LX-B4FM you can call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigation, and activate wireless Intercom for rider-to-rider or rider-to-passenger conversation within a range of 1600 meters when four units are connected.
  • Page 4: Package Contents

    How it Works 2. Package Contents...
  • Page 5: Installation Instructions

    • LX-B4FM Main Unit • Stereo HD Speaker with Interchangeable Microphone for Open Face Helmet or Full Face Helmet • USB Cable • Clip Mounting Bracket • 3M Tape Bracket • User Manual 3. Installation Instructions 3.1.1 Insert the Clip Mounting Bracket between the internal padding and external shell of the helmet.
  • Page 6 Note: Even though the 3M Tape mounting is provided for convenience, LEXIN recommends using the bracket mounting. The 3M Tape mounting is offered as an option that you may use at your own risk and responsibility, LEXIN does not assume any responsibility for use of it.
  • Page 7: General Operation Instructions

    FM radio reception as well. 3.5 Mount the LX-B4FM main unit on the bracket.Slide the main unit down onto the bracket until it clicks firmly into the bottom portion of the bracket.
  • Page 8: Pairing Lx-B4Fm With A Bluetooth Device

    4B. Pairing the LX-B4FM with a Bluetooth Device Before using the LX-B4FM Bluetooth headset with any Bluetooth device for the first time you need to pair them. It can be paired with mobile phones, audio devices such as MP3 or GPS, and other LEXIN Bluetooth headsets.
  • Page 9 5.3 Bluetooth Intercom Talk 5.3.1 Pairing with other LX-B4FM headsets for Intercom Talk The LX-B4FM can be paired with other LX-B4FM for up to a total of four units for full duplex Bluetooth intercom talk. There is a different pairing process for each scenario: two intercoms, three intercoms, and four intercoms.
  • Page 10 Step 1. Pairing two LX-B4FM units first Power on both units, to enter paring mode, press and hold the Intercom button for two seconds until the red and blue LED flashes quickly on each unit. unit one unit two Click the Intercom button on either unit until the blue led flashes quickly on this unit, once the pairing is complete you will see blue LED flash on both units (no red).
  • Page 11 Tips: Before pairing, please mark different number and color (red or blue) on each LX-B4FM unit like the above photo for better understanding of operation. Step 1 Pairing unit one with unit two first mark), then simultaneously hold the Power on unit one...
  • Page 12 Then press the Intercom button on either unit until the blue LED flashes quickly on this unit. Once the pairing is complete you will see the blue LED blinking on both units. unit two or unit three unit two and unit three Step 3 Start 3 way intercom talk After all three units are paired, unit two (red...
  • Page 13 3) Pairing four LX-B4FM headsets to talk Tip: Before pairing, please mark different number and color (red or blue) on each LX-B4FM unit like the above photo for better understanding of operation. Step 1 Pairing the two bridge units first Power on unit two (red...
  • Page 14 Step 2 Pairing the bridge units with end units Power on unit one (blue mark), simultaneously hold the Intercom and V+ button on both unit one and unit two for two seconds until the red and blue LED of the both units flash to enter pairing mode for Channel 1.
  • Page 15 Step 3 Start 4 way intercom talk After all four units are paired, unit two (red mark) and unit three (red mark) have been set as bridge units. 3.1 Double click the Intercom button on unit two or unit three to connect the two bridge units.
  • Page 16 * If one Intercom rider goes out of range during a conversation, there may be static and eventually the intercom will disconnect. In this case, the LX-B4FM automatically tries to reconnect the Intercom rider every eight seconds and you will hear high tone double beeps until the connection is reestablished.
  • Page 17: Maintenance And Care

    6. Maintenance and Care The LX-B4FM should be treated with care and the following suggestions will help maintain your Warranty. 6.1. Do not use or store the device in dusty or dirty environments. Moving parts and electronic components can be damaged.
  • Page 18: Certification And Safety Approvals

    This warranty is limited to the repair and/or replacement, at LEXIN’s discretion, of defective or non-conforming Product, and LEXIN shall not be responsible for the failure of the Product to perform specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication or misuse of the Product; (b) failure of...
  • Page 19: Waiver And General Release

    Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to LEXIN, and to use the original shipping container or equivalent.
