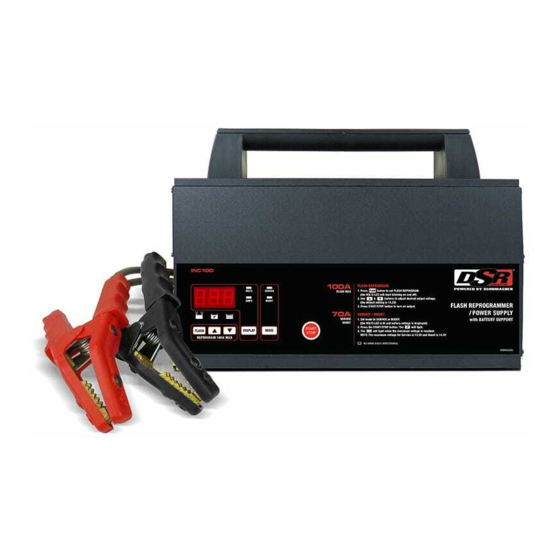

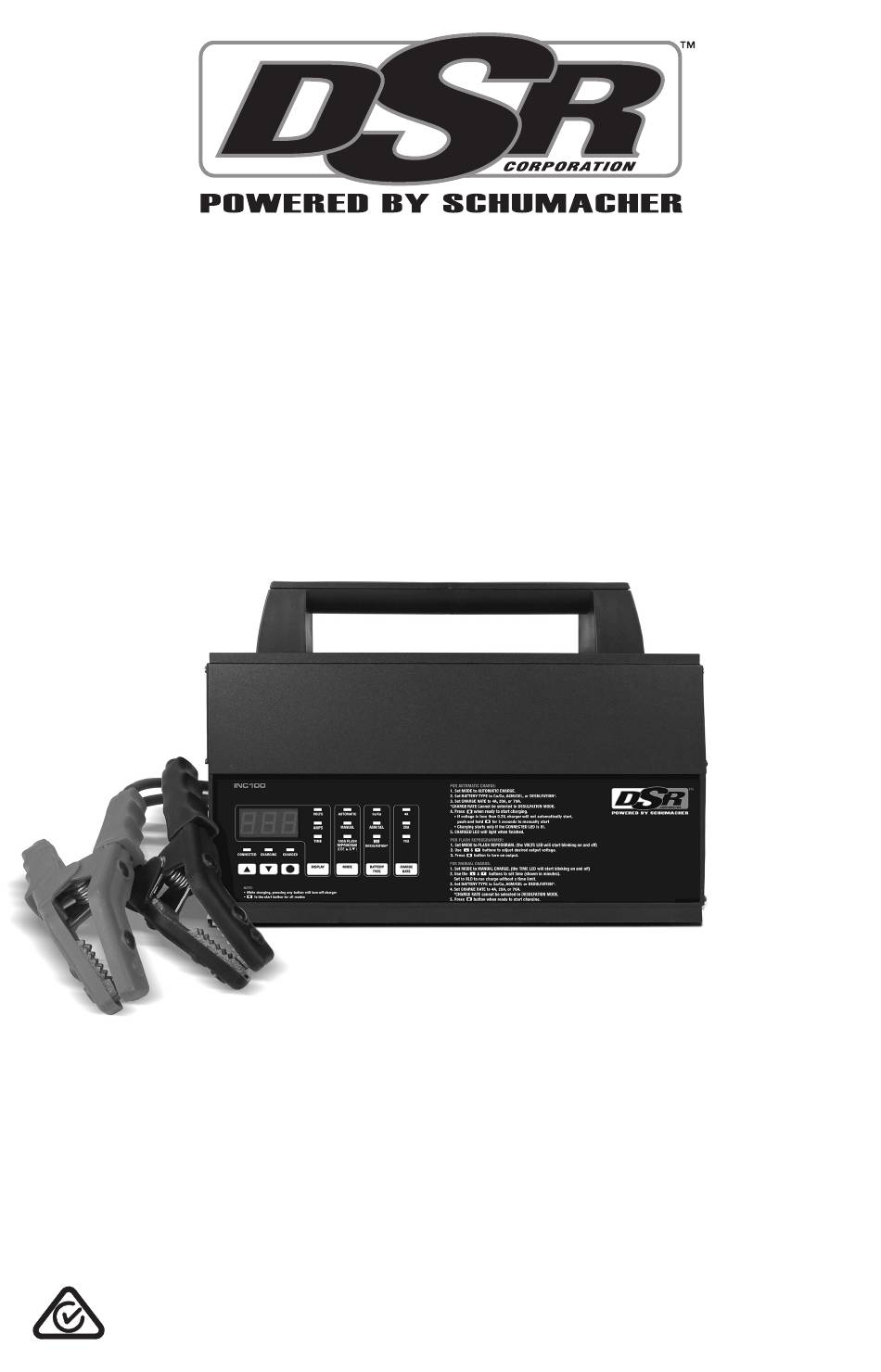

- Page 1 MODEL INC100 Battery Charger/ Power Supply OWNER’S MANUAL PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. 0099001766-02...
- Page 2 1. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS. This manual will show you how to use your charger safely and effectively. Please read, understand and follow these instructions and precautions carefully, as this manual contains important safety and operating instructions. The safety messages used throughout this manual contain a signal word, a message and an icon.
-
Page 3: Personal Precautions
WARNING RISK OF EXPLOSIVE GASES. 1.6 WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER. 1.7 To reduce the risk of a battery explosion, follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of the battery. -
Page 4: Charger Location
4. CHARGER LOCATION WARNING RISK OF EXPLOSION AND CONTACT WITH BATTERY ACID. NOTE: This is a Class A product for industrial use only, for use with professional equipment with a total rated power greater than 1 kW. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. -
Page 5: Grounding And Ac Power Cord Connections
• Over 100 feet (30.5 meters) long – use an 8 gauge (8.36 mm ) extension cord. 8. MOUNTING INSTRUCTIONS NOTE: The INC100 is non-portable equipment, suitable for mounting only on concrete or other non-combustible surfaces. To permanently mount the charger, use the following instructions: 8.1 Slide all 4 brackets (Item 1) into the track on the back, from the right side, as shown above. -
Page 6: Control Panel
9. CONTROL PANEL LED Indicators CONNECTED (yellow/orange) LED The CONNECTED LED will light when the battery is properly connected. CHARGING (yellow/orange) LED When charging begins, the CHARGING LED will light. CHARGED (green) LED The CHARGED LED will light when the charger has gone into maintain mode. (UP and DOWN) Buttons Use these buttons to select the amount of time or voltage, depending on the display function selected. -
Page 7: Battery Information
Mode Button Use this button to select between the AUTOMATIC CHARGE, MANUAL CHARGE and FLASH REPROGRAM function. See Operating Instructions for details of these functions. Battery Type/Desulfation Mode Button Set the type of battery to be charged, or Desulfation Mode. •... - Page 8 5. Set the CHARGE RATE to 4A, 20A or 70A. NOTE: Charge rate cannot be selected while using Desulfation Mode. 6. Press when you are ready to start charging. NOTE: Be sure to monitor the charging procedure and stop when the battery is charged. Failure to do so may cause damage to your battery or may cause other personal property damage or personal injury.
- Page 9 100A Flash Reprogramming NOTE: Do not attempt to Flash Reprogram a vehicle that has a discharged or defective battery. Make sure that the vehicle battery is in good condition and fully charged before proceeding. In Flash Reprogramming Mode, the charger is able to deliver 70A charging current continuously, and to deliver up to 100A for three minutes.
-
Page 10: Calculating Charge Time
11. CALCULATING CHARGE TIME Use the following table to more accurately determine the time it will take to bring a battery to full charge. First, identify where your battery fits into the chart. NR means that the charger setting is NOT RECOMMENDED. Find your battery’s rating on the following chart and note the charge time given for each charger setting. -
Page 11: Troubleshooting
14. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION No display and the LEDs Charger is not plugged in. Plug the charger into an AC outlet. are not lit. No power at the receptacle. Check for open fuse or circuit breaker supplying AC outlet. Display reads 0.0 volts. -
Page 12: Specifications
15. SPECIFICATIONS Input ..............220-240V~ 50/60Hz 10A, Class I, IP20 Output: Charging mode ..........12V 4A / 20A / 70A; 48W / 240W / 840W Desulfation mode ....................15.8V max. Reprogram mode ..13-14.8V 0-70A, 0-1036W; 100A for three minutes, 1480W max. Dimensions (L x W x D) ...............360 x 250 x 100mm Weight ........................ - Page 13 Common Warranty Provisions The warranty mentioned above only applies to the first professional or consumer user having legally acquired the Product from the Manufacturer or a Reseller. No warranty is extended towards clients, agents or representatives of those buyers. The Product is sold under the specifications, for the use and purpose in accordance with the provisions of this manual, with express exclusion and disclaimer of warranty of any other specifications, uses and purposes.
-
Page 14: Declaration Of Conformity
President November 25, 2015 Hereby declares that the equipment Model INC100 is compliant to the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 (RoHS) on the restriction of the use of certain hazardous substances in electrical and electronic equipment and ITS SUBSEQUENT AMENDMENTS DIRECTIVE(EU) 2015/863 while: The parts do not exceed the maximum concentrations of 0.1% by weight in homogenous... - Page 15 • 15 •...
