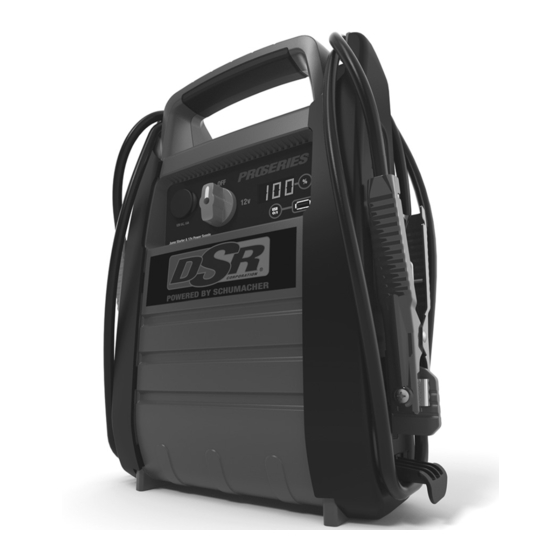

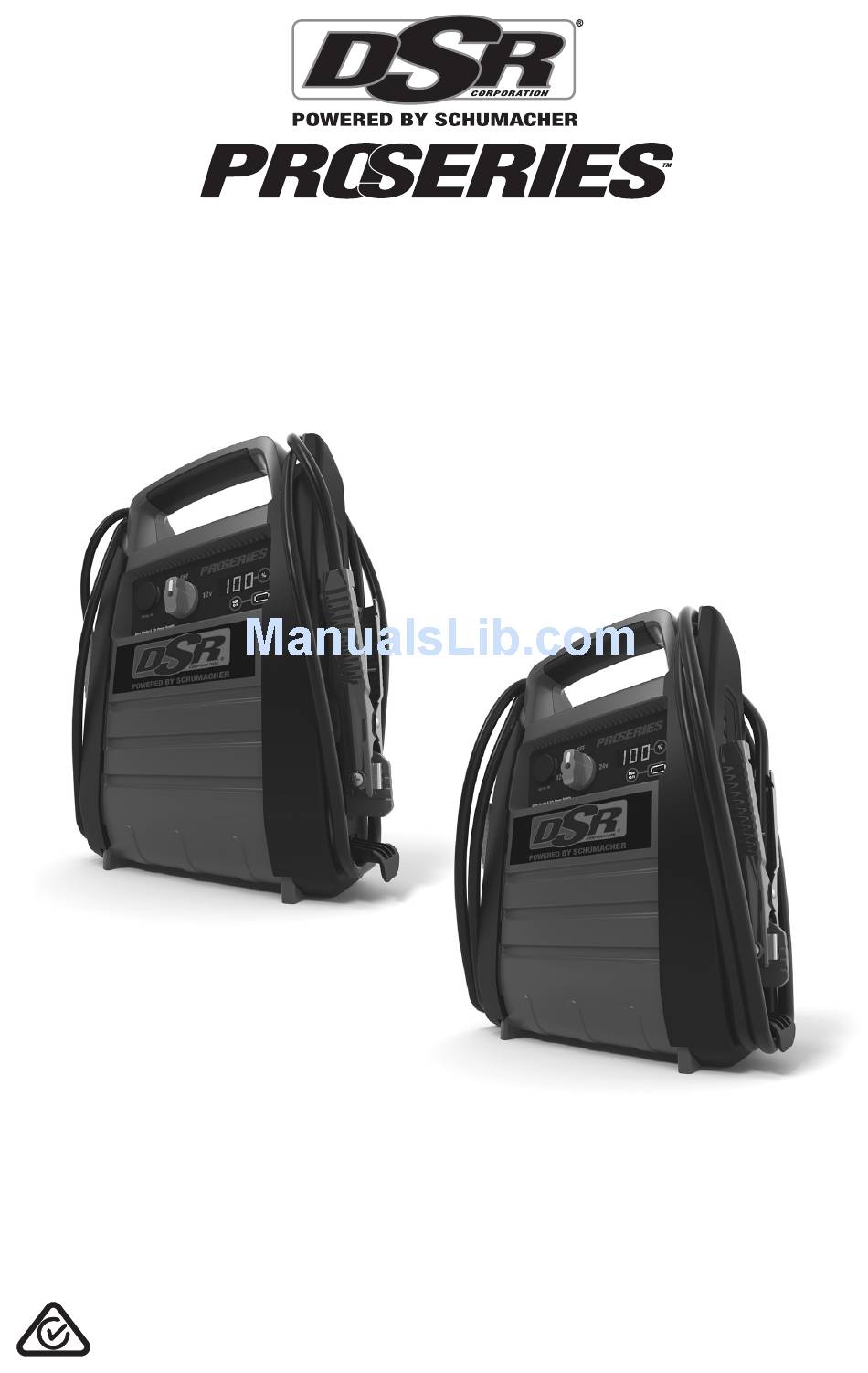

- Page 1 MODELS DSR5221, DSR5222 Professional Battery Boosters OWNERS MANUAL DSR5221 DSR5222 PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully.
- Page 2 IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL. SAVE THESE INSTRUCTIONS – Charge the booster’s internal battery immediately after purchase, after every use and every 30 days. It is highly recommended to leave the booster on permanent charge when not in use. This manual will show you how to use your booster safely and effectively.
-
Page 3: Personal Precautions
1. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions. RISK OF ELECTRIC SHOCK OR FIRE. WARNING WARNING 1.1 Read the entire manual before using this product. Failure to do so could result in serious injury or death. 1.2 Keep out of reach of children. - Page 4 2.10 Wear complete eye and body protection, including safety goggles and protective clothing. Avoid touching your eyes while working near the battery. 2.11 If battery acid contacts your skin or clothing, immediately wash the area with soap and water. If acid enters your eye, immediately flood the eye with cold running water for at least 10 minutes and get medical attention right away.
- Page 5 9 10 11 1. 12V DC power outlet 6. USB Port 2. Jump starter ON/OFF switch – 7. Heavy-duty battery clamps DSR5221: OFF or 12V position 8. Charger DSR5222: OFF, 12V or 24V position 9. Power LED 3. Digital display 10.
- Page 6 6.3 Charging the Booster’s Internal Battery using the Included Charger Only use the charger that was included with the booster to charge the internal battery of the booster. Using any other charger or using the included charger for any other purpose could IMPORTANT result in personal injury or property damage.
-
Page 7: Fuse Replacement
The Portable Power is equipped with an inline fuse, to protect the battery from overload. Fuse Specification Model DSR5221: Fast blow, DC automotive type, rated 32 V, 300 A (Bussman/Audio Ohm Srl). Model DSR5222: Fast blow, DC automotive type, rated 32 V, 500 A (Bussman/Audio Ohm Srl). -
Page 8: Troubleshooting
TROUBLESHOOTING Booster PROBLEM POSSIBLE CAUSE REASON/SOLUTION The booster won’t jump start Clamps are not making a good Check for poor connection to battery my car. connection to the battery. and frame. Make sure connection points are clean. Rock clamps back and forth for a better connection. -
Page 9: Specifications
Input ..........................230V AC~50Hz, 0.5A Output ............................... 12V REPLACEMENT PARTS Charger ............................2299003058IZ Fuse – 300A (for model DSR5221) ....................3999002113 Fuse – 500A (for model DSR5222) ....................3999002114 DISPOSAL INFORMATION 14.1 Internal battery • The battery must be removed from the appliance before it is scrapped. -
Page 10: Limited Warranty
LIMITED WARRANTY WARRANTY TERMS AND CONDITIONS Schumacher Electric Corporation (the “Manufacturer”) or the resellers authorized by the Manufacturer (the “Reseller”) warrant this Jump Starter (the “Product”) for two (2) years, according to the following stipulations. Any and all warranties, other than the warranty included herein, are hereby expressly disclaimed and excluded to the fullest extent permissible under applicable law. - Page 11 • 11 •...
- Page 12 • 12 •...
