PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
retain this instruction sheet in your files.
replacement parts information.
accordance with these instructions.
maintain all public playground equipment properly.
equipment, which is improperly maintained, can cause serious injury.
Periodical inspections, maintenance, repair and/or replacement of
damaged parts is necessary for safe operation of equipment.
Appropriate publications, available at no charge, from the Consumer
Product Safety Commission, include "A Handbook for Public Playground
Safety".
You can receive your free copy by calling 1-301-504-0708.
PACKING LIST
1
CTN
1
PLT
2 915-755
1 915-765
2 915-756
SportsPlay Equipment, Inc., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140

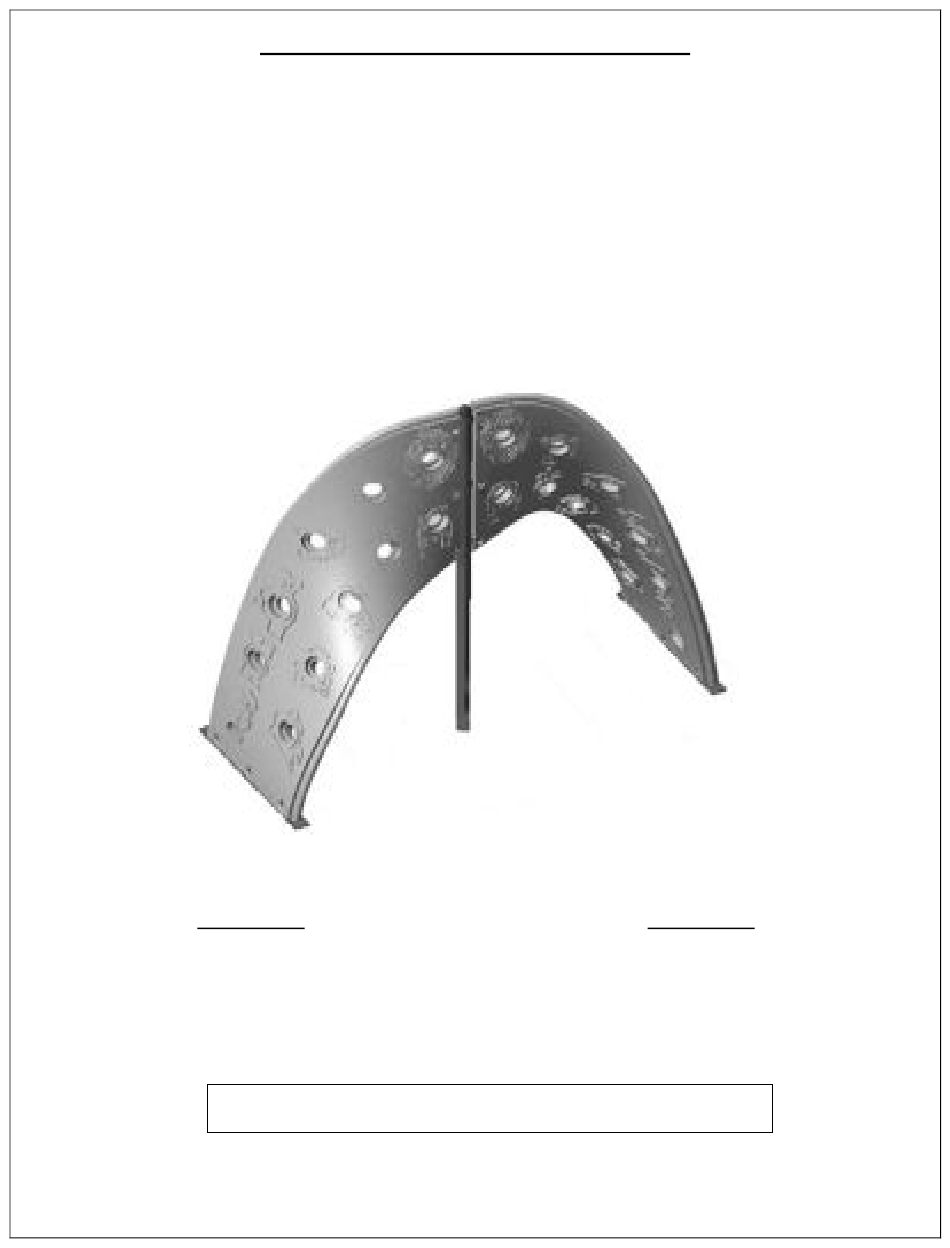

902-765 TWO PANEL Aztec Climber
Designed for ages 5-12
Hardware Box
Aztec Plastic Panels
Vertical Post
Aztec Panel Ground Anchors
1 SKID
www.sportsplayinc.com
IMPORTANT
It contains important
All equipment must be installed in
It is important to use and
12
116-924
12
116-923
24
116-925
24
905-847
1
805-532
1
805-534
1
400# Weight
Page
Rev. 04/09/2010
Please
Playground
HARDWARE BOX
M10 x 60 Hex Bolts
M10 Nylon Insert Lock Nuts
Flat Washers
Bolt Caps
Warning Label
SportsPlay Label
Maintenance Checklist
Class 70
1
Advertisement
Table of Contents
Related Manuals for Aztec 902-765
Summary of Contents for Aztec 902-765
- Page 1 902-765 TWO PANEL Aztec Climber Designed for ages 5-12 Page Rev. 04/09/2010 IMPORTANT PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY. Please retain this instruction sheet in your files. It contains important replacement parts information. All equipment must be installed in accordance with these instructions.
- Page 2 902-765 TWO PANEL Aztec Climber Designed for ages 5-12 Page Rev. 04/09/2010 Aztec Panel Vertical Post Aztec Ground Anchor Qty – 2 Qty – 1 Qty – 2 915-755 915-765 915-756 GENERAL FOOTING RECOMMENDATIONS: Diameter and depth of footings illustrated are satisfactory in most applications for pipe sizes up to 4 1/2”...
- Page 3 902-765 TWO PANEL Aztec Climber Designed for ages 5-12 Page Rev. 04/09/2010 * If resilient surfacing is to be less than 12”, then you need to dig a deeper hole and additional pipe should be put in concrete to maintain proper finish grade for equipment.
- Page 4 Note: The slanted tabs on the ground anchor should slant in towards the center post. STEP #2: Attach the Aztec Plastic Panel to the Aztec Panel Ground Anchor by placing the Plastic Panels over the tabs of Ground Anchors. Note: The King Figure must be on the lower left.
- Page 5 Repeat Steps 1 and 2 with other Ground Anchor and Plastic Panel. STEP #5: Attach the other side of the Aztec Plastic Panel to the Vertical Connecting Post utilizing the same fastening technique as was used in steps 1 and 2.
- Page 6 902-765 TWO PANEL Aztec Climber Designed for ages 5-12 Page Rev. 04/09/2010 STEP #7: Plumb and level the entire unit. Fully snug all fasteners and push bolt caps into the bolt covers. Pour concrete with a slight dome at the top to help keep water away from the post.
