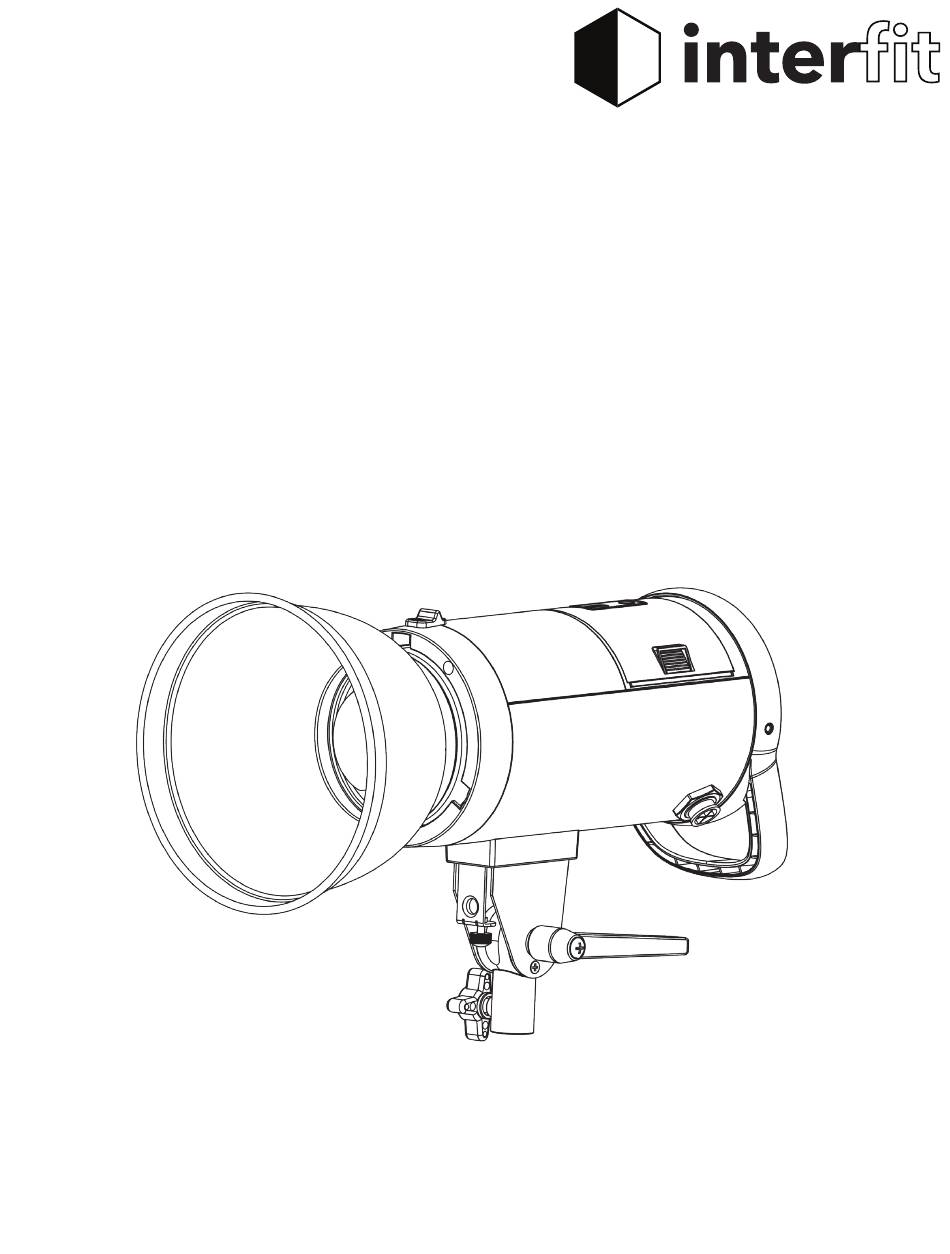

- Page 1 S1 Battery-Powered TTL/HSS Flash Instruction Manual www.interfitphotographic.com...
- Page 2 Interfit S1 Battery-Powered TTL/HSS Flash Unit What’s cool about the Interfit S1? The S1 is the first high-tech TTL HSS monolight to include intelligent TTL and HSS technology in a battery-powered monolight with an included International Multi-Voltage AC Power adapter in one complete package.
-
Page 3: Table Of Contents
Table of Contents Interfit S1 Overview................Accessorizing the Interfit S1............. Protective Cap................Bowens® Mount Modifiers............Softboxes..................Umbrellas..................Sync Cable.................. Remote..................Third-Party Remotes..............Using the Interfit S1................Powering On/Off............... Adjusting the Flash Power............Using the Modeling Lamp............Setting Channels................ Setting Groups................ -
Page 4: Interfit S1 Overview
Interfit S1 Overview 1. Optical Slave Cell 2. LCD Battery Indicator 3. Flash Test Button 4. Cell Button 5. Beep Button 6. Power Dial 7. 3-Way Power Switch 17. Sync Port 8. Group Selection Button 18. AC Power Port 9. Channel Selection Button 19. -
Page 5: Accessorizing The Interfit S1
Bowens® Mount Modifiers Modifying the light from your S1 is key to creating dynamic images. The S1 can be used with any light modifier with a Bowens® S-Type mount. To attach a Bowens® mount modifier to the S1, simply insert the three prongs of the modifier ring into the mount and rotate clockwise until you hear a click. -
Page 6: Umbrellas
They will also not allow you to use HSS or TTL. A sync cable is included with your S1 and can be plugged into the sync port on the rear left side of the flash unit and the corresponding sync port on your camera. -
Page 7: Using The Interfit S1
Your S1 is packed with 500Ws of power. This power is adjustable over a 9-stop range and can be adjusted in 1/10th of a stop intervals. Use the power adjustment dial on the back of your S1 to adjust the power from 10.0 (full power) to 2.0 (lowest power) in manual mode. -
Page 8: Setting Groups
CELL When using a multiple light setup with your Interfit S1 and a sync cord or a third-party remote, turn on the “CELL” button to activate the optical slave function. This will allow the light to be triggered by the light of your other flashes. -
Page 9: Using Through-The-Lens (Ttl) Metering
Mounting to a Light Stand Your S1 will mount to most standard light stands with a 5/8” stud. Unscrew the Stand Mount Knob until the mount fits onto the light stand. Make sure to turn the Stand Mount Knob until tight. -
Page 10: Interfit S1 Specifications
Interfit S1 Specifications Max Watt Seconds 500Ws Power Range 9-Stops (500Ws – 1.9Ws) Guide Number 148 (100 ISO, 1/125, 1 meter, 7” reflector) Variability 1/10th stop increments Recycle Time 3 seconds at full power Flash Duration 1/900 at full power...
