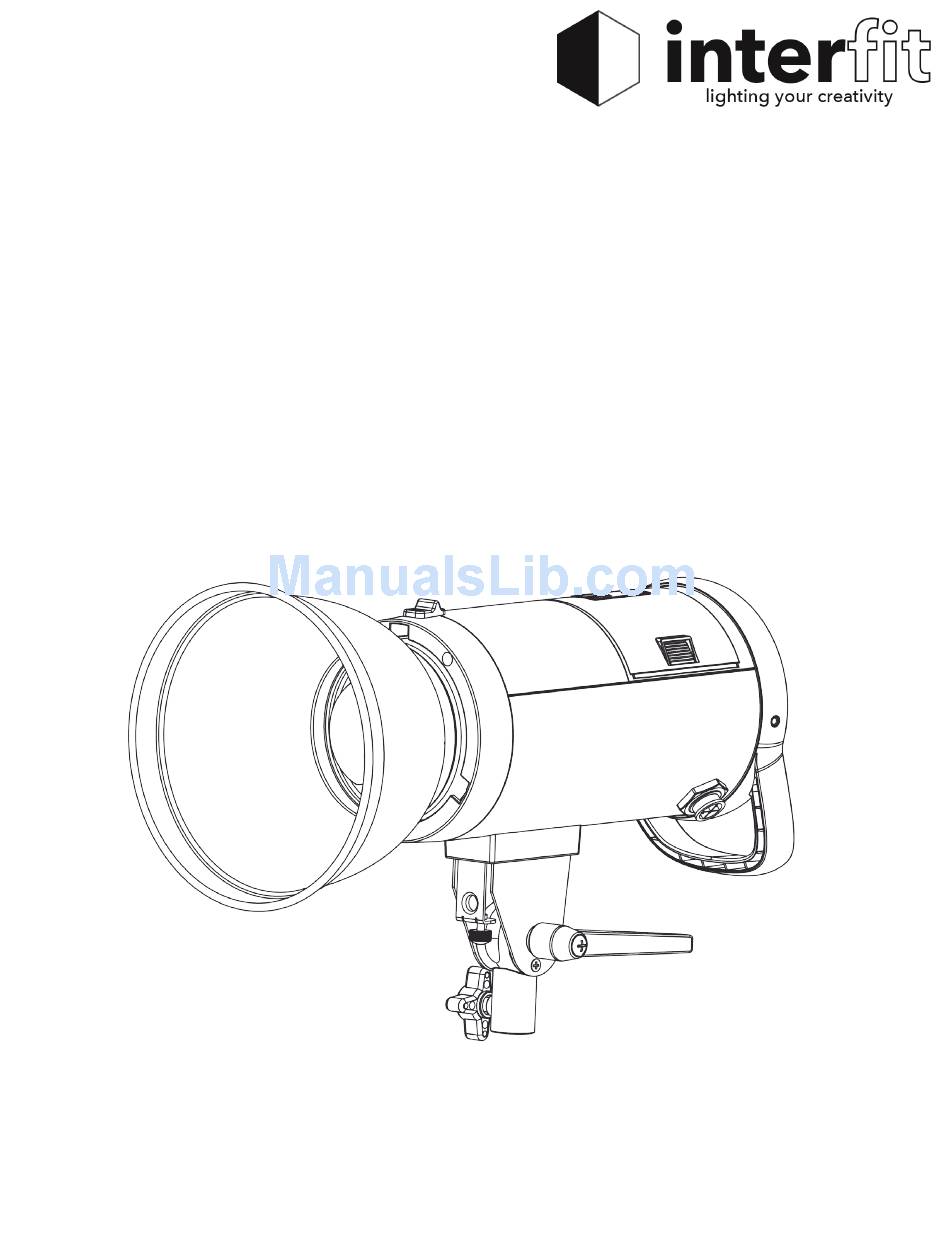

- Page 1 The Interfit S1 Battery Powered TTL/HSS Flash Instruction Manual www.interfitphotographic.com...
- Page 2 Prolonged exposure to excessive heat may damage electrical components. How does Interfit Protect my S1? Your Interfit S1 is protected by a one-year manufacturer warranty against manufacturer defects. Warranty does not cover consumables, such as the flash tube, battery or glass dome.
-
Page 3: Table Of Contents
Table of Contents A look at the S1................... Accessorizing your S1................ Shipping Cover................Bowens® Mount Modifiers............Softboxes..................Umbrellas..................Sync Cable.................. Remote..................Using your S1..................Powering your S1............... Adjusting the Power..............Using the Modeling Lamp............Setting Channels................ Setting Groups................Beep Button................ -
Page 4: A Look At The S1
A Look at the S1 1. Optical Slave Cell 2. LCD Battery Indicator 3. Flash Test Button 4. Cell Button 5. Beep Button 6. Power Dial 7. 3-Way Power Swithch 17. Sync Port 8. Group Selection Button 18. AC Power Port 9. -
Page 5: Accessorizing Your S1
Bowens® Mount Modifiers Modifying the light from your S1 is key to creating dynamic images. The S1 can be used with any light modifier with a Bowens® mount. To attach a Bowens® mount modifier to the S1, simply insert the three prongs of the modifier ring into the mount and rotate clockwise until you hear a click. -
Page 6: Umbrellas
They will also not allow you to use HSS or TTL. A sync cable is included with your S1 and can be plugged into the sync port on the rear left side of the flash unit and the corresponding sync port on your camera. -
Page 7: Using Your S1
Your S1 is packed with 500Ws of power. This power is adjustable over a 9-stop range and can be adjusted in 1/10th of a stop intervals. Use the power adjustment dial on the back of your S1 to adjust the power from 10.0 (full power) to 2.0 (lowest power) in manual mode. -
Page 8: Beep Button
Using HSS (High Speed Sync) Use the Interfit TTL remote to toggle the shooting mode of your S1 to HSS. This shooting mode will allow you to use shutter speeds of up to 1/8000th and trigger the flash. The power range read out will change to 8.0-10.0. -
Page 9: Replacing The Flash Tube And Frosted Glass Dome
Mount to a Light Stand Your S1 will mount to most standard light stands with a 5/8” stud. Unscrew the Stand Mount Tightening Knob until the mount fits onto the light stand. Make sure to turn the mount tightening knob until tight. - Page 10 Specifications of the S1 Max Watt Seconds 500Ws Power Range 9 Stops Guide Number 148 (100 ISO, 1/125, 1 meter, 7” reflector) Variability 1/10th stop increments Recycle Time 3 seconds at full power Flash Duration 1/900@ full power Color Temperature...
