Summary of Contents for Tech West ACO2S

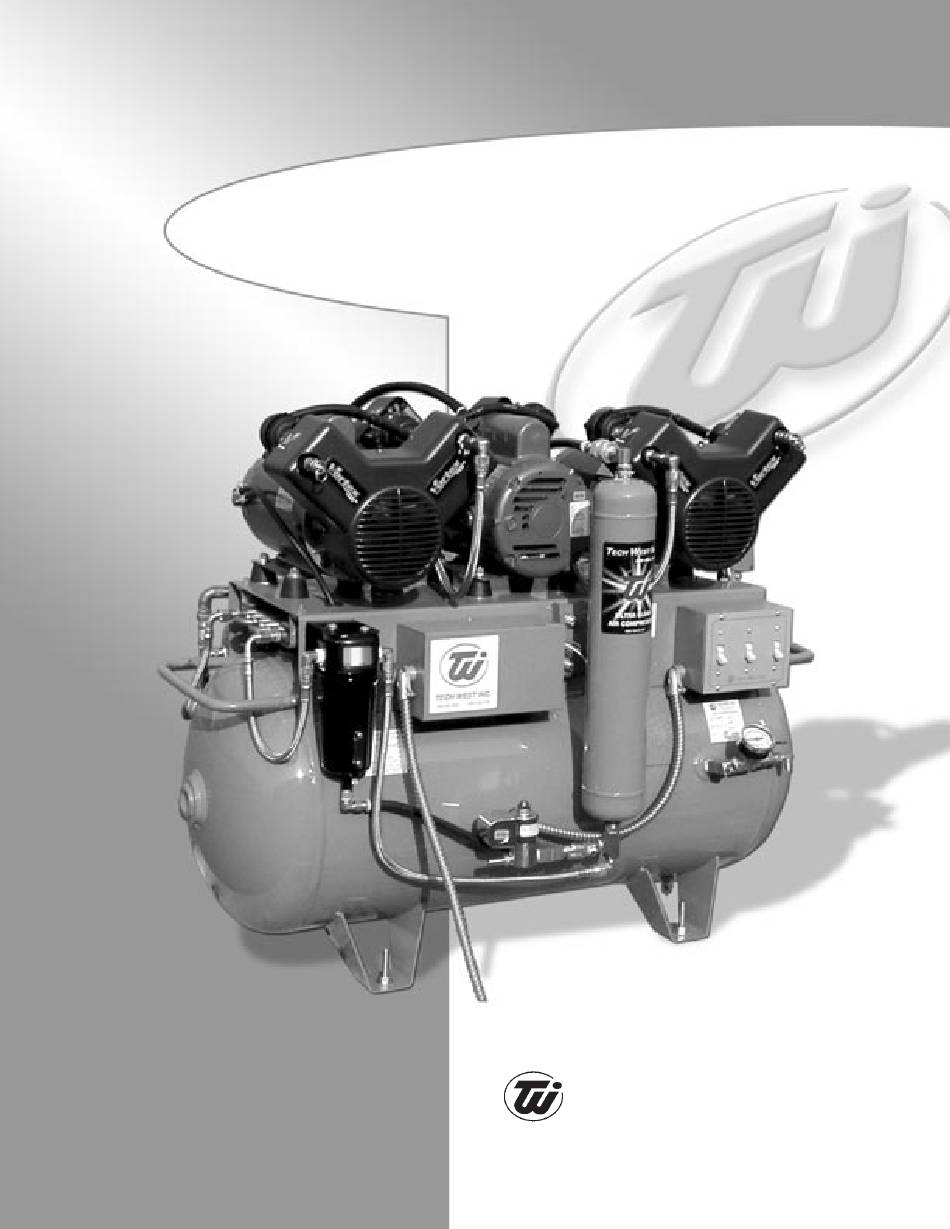

- Page 1 ULTRA CLEAN OILLESS COMPRESSOR INSTALLATION AND SERVICE Manufacturers of Dental Vacuum MANUAL and Air Systems 2625 N. Argyle Ave. • Fresno, CA 93727 Revised 4-15 (559) 291-1650 • (800) 428-7139 • FAX (559) 348-9677...
-
Page 3: Troubleshooting
ULTRA CLEAN OILLESS COMPRESSOR INSTALLATION AND SERVICE MANUAL This manual is for the installation and service of Tech West’s Ultra Clean Oilless Compressors. CONTENTS Installation Location Requirements Figure 1: Wire and Breaker Sizes Ultra Clean Oilless Installation Steps Ultra Clean Oilless Compressor Connections... -
Page 4: Installation
ULTRA CLEAN OILLESS COMPRESSOR INSTALLATION 1. OILLESS COMPRESSOR LOCATION REQUIREMENTS The Ultra Clean Oilless Compressor location should be level, accessible and well ventilated. If the Ultra Clean Oilless Compressor will be located in a confined space, provide adequate ventilation. Electrical Line voltage must be within the limits of Figure 1 below. -
Page 5: Installation Steps
2. INSTALLATION STEPS This dental compressor should only be installed by qualified personnel. Should any questions arise during the installation, call Tech West Technical Support between the hours of 7:00 a.m. to 4:00 p.m. (Pacific Standard Time). Place the compressor in a clean, dry, well ventilated area, on a solid, level surface. Consider sound level and insulate as needed. - Page 6 ULTRA CLEAN OILLESS COMPRESSOR INSTALLATION 3. CONNECTIONS Figure 2 Electrical Connection to disconnect and electrical panel 220 v (110 v / 220 v ) on the single models only Dryer Purge Air Out Connection Connection to building supply line Alternate Air Connection to fresh air supply...
-
Page 7: Safety Precautions
ULTRA CLEAN OILLESS COMPRESSOR INSTALLATION 4. SAFETY PRECAUTIONS • Keep fingers, foreign objects and clothing free from rotating parts and do not touch hot surfaces. • Never attempt to service an operating unit. • Isolate unit from system pressure and relieve backpressure before servicing. •... -
Page 8: Yearly Servicing
INSTALLATION 6. GENERAL SERVICE INFORMATION For parts and service on VX series products contact the nearest authorized Tech West distributor. To expedite appropriate service, be prepared to provide the unit model number, identification number, and serial number found on the nameplate located on the front of the unit motor. -
Page 9: Parts List
ULTRA CLEAN OILLESS COMPRESSOR PARTS LIST See next page for numbered part identification OIL-FREE COMPRESSOR MOTOR 1HP PART NO. DESCRIPTION UNIT TOM-1-115 OILLESS COMPRESSOR MOTOR 1HP 115V TOM-1-230 OILLESS COMPRESSOR MOTOR 1HP 230V TFF-100 FRONT FAN ASSY. 1 HP TFC-100 FRONT FAN COVER 1 HP TPA-100 PISTON ASSEMBLY COMPLETE 1 HP... - Page 10 ULTRA CLEAN OILLESS COMPRESSOR PARTS LIST...
-
Page 11: Compressor Configuration
SINGLE COMPRESSOR CONFIGURATION DUAL AND TRIPLE COMPRESSOR CONFIGURATION GAUGE AND CUT-OFF ASSEMBLY PART NO. DESCRIPTION UNIT CPG-250 COMPRESSOR GAUGE BV-250 1/4” BALL VALVE MI-100 MOISTURE INDICATOR FA-4-4 1/4” FLARE HOSE FITTING BN-250-CL 1/4” BRASS CLOSE NIPPLE BT-250 1/4” BRASS TEE BSE-250 1/4”... - Page 12 REAR VIEW ASSEMBLY AND PARTS LIST PART NO. DESCRIPTION UNIT CV-375MF-100 3/8” CHECK VALVE MALE TO FEMALE CONNECTION CPT-100 COMPRESSOR PURGE TANK CV-375D-100 3/8” CHECK VALVE HA-10-250 1/4 HOSE ASSEMBLY - 10” LONG DPC-1 DRYER PRE COOLER SINGLE COMPRESSOR DPC-2 DRYER PRE COOLER DUAL &...
- Page 13 NEW DESICCANT AIR DRYER ASSEMBLY INSIDE TANK ELEMENT...
-
Page 14: Filter Assembly
FILTER ASSEMBLY PART NO. DESCRIPTION UNIT CFAO-375 COALESCING FILTER ASSEMBLY 3/8 CFEO-375 COALESCING FILTER ELEMENT 3/8 CFBP-375 COALESCING FILTER BOWL... - Page 15 SINGLE ULTRA CLEAN OILLESS COMPRESSOR PART NO. DESCRIPTION UNIT SBHA-21-375 STEEL BRAID HOSE ASSEMBLY SBHA-7.5-375E STEEL BRAID HOSE ASSEMBLY SBHA-11-375E STEEL BRAID HOSE ASSEMBLY FPH-375 PURGE FLEX HOSE CLEAR PER FT ZZACS61 1/4 HOSE ASSMEBLY PFT-625 POLY FLO TUBE 5/8 PER FT CFAO-375 COALESCING FILTER 3/8...
- Page 16 DUAL ULTRA CLEAN OILLESS COMPRESSOR PART NO. DESCRIPTION UNIT SBHA-21-375 STEEL BRAID HOSE ASSEMBLY SBHA-10-375E STEEL BRAID HOSE ASSEMBLY SBHA-9-375E STEEL BRAID HOSE ASSEMBLY FPH-375 PURGE FLEX HOSE CLEAR PER FT ZZACS61 1/4 HOSE ASSEMBLY PFT-625 POLY FLO TUBE 5/8 PER FT CFAO-375 COALESCING FILTER 3/8...
- Page 17 TRIPLE ULTRA CLEAN OILLESS COMPRESSOR PART NO. DESCRIPTION UNIT SBHA-21-375 STEEL BRAID HOSE ASSEMBLY SBHA-10-375E STEEL BRAID HOSE ASSEMBLY SBHA-9-375E STEEL BRAID HOSE ASSEMBLY FPH-375 PURGE FLEX HOSE CLEAR PER FT ZZACS61 1/4 HOSE ASSEMBLY PFT-625 POLY FLO TUBE 5/8 PER FT CFA0-375 COALESCING FILTER 3/8...
- Page 19 & repair. disconnected? CHECK FOR: 1. Broken or loose Is there sufficient Is there suffi- Install wire. voltage at motor cient voltage Tech West 2. Defective pressure terminals while at disconnect transformer. switch. box? motor tries to start? 3. Defective ON/OFF switch.
- Page 21 & repair. disconnected? CHECK FOR: 1. Broken or loose Is there sufficient Is there suffi- Install wire. voltage at motor cient voltage Tech West 2. Defective pressure terminals while at disconnect transformer. switch. box? motor tries to start? 3. Defective ON/OFF switch.
- Page 23 & repair. disconnected? CHECK FOR: Is there sufficient 1. Broken or loose Is there suffi- Install wire. voltage at motor cient voltage Tech West 2. Defective pressure terminals while at disconnect transformer. switch. box? motor tries to start? 3. Defective ON/OFF switch.
- Page 24 Maintenance & Service / Notes...
- Page 25 Maintenance & Service / Notes...
- Page 26 Maintenance & Service / Notes...
- Page 27 Maintenance & Service / Notes...
- Page 28 Manufacturers of Dental Vacuum and Air Systems 2625 N. Argyle Ave. • Fresno, CA 93727 (559) 291-1650 • (800) 428-7139 • FAX (559) 348-9677...
