HOOK UPS
NOTES:
• Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the
copy protection system.
• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Operation Manuals for your TV, stereo system and any other components to be connected to the DVD player.

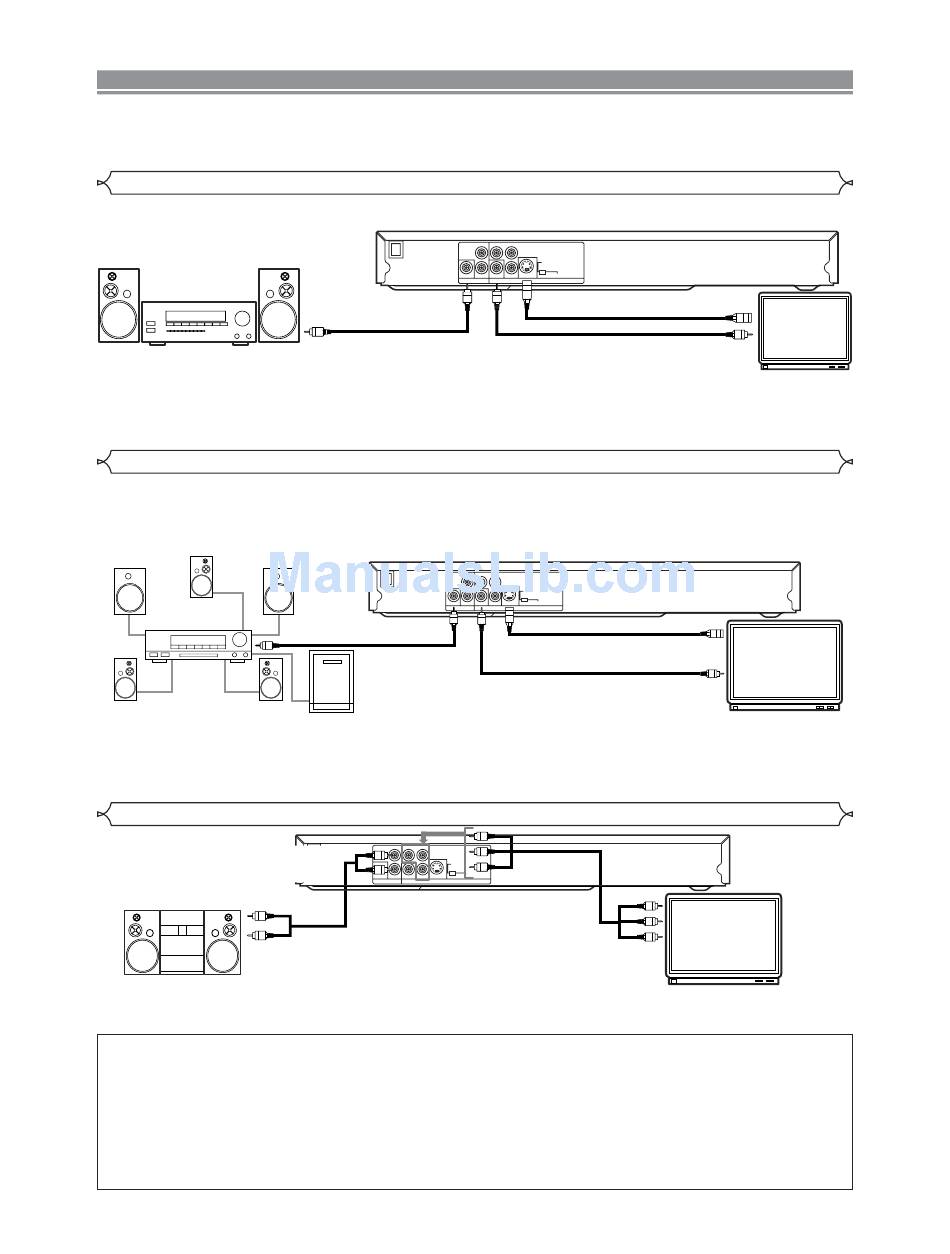

Connecting to an Amplifier Equipped with Digital Input Jacks such as MD deck or DAT deck

Use an audio coaxial digital cables (not included) for the audio connections. Connecting to an amplifier equipped with digital
input jacks such as MD Deck or Dat Deck.
Amplifier equipped with digital
input jacks, MD deck,
DAT deck, etc.
NOTES:
• The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD
or DAT deck.
• Set Dolby Digital to DPCM and DTS to OFF for audio output in the setup mode. Playing a DVD using incorrect settings
may generate noise distortion, and may also damage the speakers.(See page 14 to set ON for Dolby Digital)

Connecting to a Dolby Digital decoder or DTS decoder

If using this DVD player to play back a DVD in a 5.1 channel Dolby Digital surround or DTS surround format, the DVD player outputs a Dolby Digital or
DTS data stream from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more con-
vincing, realistic ambience with powerful and high-quality surround sound of a professional standard such as can be heard in movie theaters.
Use audio coaxial digital cables (commercially available) for the audio connections.
Front Front
Center speaker
speaker speaker
(left) (right)
Dolby Digital
or DTS decoder
Surround Surround
speaker
speaker
(right)
(left)
NOTES:
• If output Dolby Digital or DTS audio, connect to a Dolby Digital or DTS decoder, and set Dolby Digital or DTS to BITSTREAM for audio
output in the setup mode.
• Unless connected to a Dolby Digital or DTS decoder, set Dolby Digital to DPCM or DTS to OFF for audio output in the setup mode.
Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

Connecting to a TV or a Stereo TV that has Component VIDEO In Jacks

To Right (red) and
AUDIO OUT jacks
Stereo system
To Right (red) and Left (white)
ANALOG AUDIO INPUT jacks
NOTE:
• If your TV is compatible with progressive scanning (480p), connect the TV to the Component Video Output jacks of the DVD
player, and make sure INTERLACE/PROGRESSIVE SCAN SELECTOR is set to PROGRESSIVE.
HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS
If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD player to your TV's 75-ohm coaxi-
al antenna terminal using a commercially available Stereo Audio/Video RF Modulator. Connect the audio and video outputs of the DVD
player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked
"TO TV") to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.
If your TV's 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your
TV's antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator (usually marked "ANT IN"), then con-
nect the RF modulator to your TV's antenna terminal as described above.
NOTE
• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV's antenna terminal through an RF Modulator.
DIGITAL
AUDIO OUT
To COAXIAL DIGITAL
AUDIO OUT jack
To COAXIAL DIGITAL
AUDIO INPUT jack
DIGITAL
AUDIO OUT
To COAXIAL DIGITAL
AUDIO INPUT jack
To COAXIAL
DIGITAL AUDIO
OUT jack
Subwoofer
L Y P
R
COMPONENT
Left (white)
INTERLACE
DIGITAL R VIDEO P S-VIDEO PROGRESSIVE(480P)
B
AUDIO OUT VIDEO OUT
– 9 –
L Y P
R
COMPONENT
INTERLACE
R VIDEO P S-VIDEO PROGRESSIVE(480P)
B
VIDEO OUT
To S-VIDEO
OUT jack
or
To VIDEO OUT jack To VIDEO INPUT jack
L Y P
R
COMPONENT
INTERLACE
R VIDEO P S-VIDEO PROGRESSIVE(480P)
B
VIDEO OUT
To S-VIDEO To S-VIDEO
OUT jack
or
To VIDEO OUT jack To VIDEO INPUT jack
To COMPONENT
VIDEO OUT jack
To COMPONENT
VIDEO INPUT jack
To S-VIDEO
INPUT jack
A/V-compatible
or
wide screen TV
[Fig. 7]
INPUT jack A/V-compatible
or
wide screen TV
[Fig. 8]
A/V-compatible
or
wide screen TV
[Fig. 9]
EN
