N N o o t t e e - - If you have a previously installed floor plate without the anchor-to-vehicle cable, measure either 3 in. or 7 in.
toward the head end from the locator position A (Figure 7). Mark the location in the middle of the channel. This will be
your electrical inlet location. See Installing the floor plate (6390-009-020) for instructions about how to connect the
electrical.
C
B
N N o o t t e e - - The safety hook (B) and extra mounting hole locations (C) are shown for reference only (Figure 7). They are not
used for P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D installation.
10. Place the connectors into the floor plate pocket.
11. Apply silicone sealant to the electrical rubber grommet to completely seal the electrical pass through.
W W A A R R N N I I N N G G - - Always seal all gaps to the exterior of the vehicle to prevent exhaust fumes from entering the vehicle
patient compartment.
12. Rotate the spin caps (A) a half turn to access the attached floor plate bolts that are under the caps (Figure 8).
N N o o t t e e - - Do not fully tighten the floor plate bolts until all four bolts are aligned and started.
13. Using a 3/8" hex wrench, install the attached floor plate bolt that is closest to the head end.
14. Using a 3/8" hex wrench, install the other three attached floor plate bolts (A) into the two cleats (Figure 8).
15. Using a torque wrench, tighten each floor plate bolt to 60±10 ft-lb.
W W A A R R N N I I N N G G - - Always make sure that you tighten all four floor plate bolts to the recommended torque.
16. Close the spin caps.
17. Insert the un-notched side of the center cover assembly (6392-001-011) (B) into the opening in the head end housing
(Figure 8).
EN 22

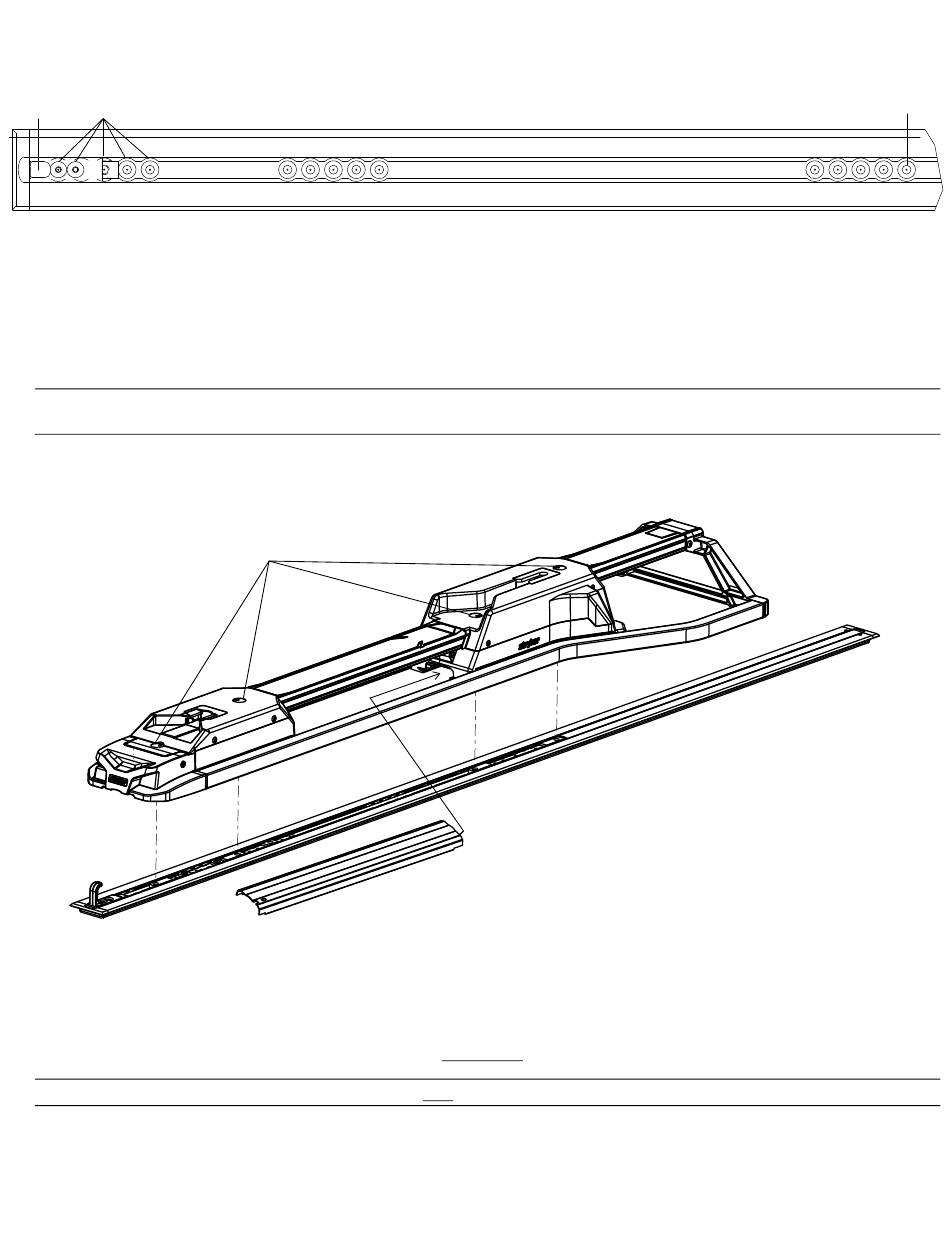

F F i i g g u u r r e e 7 7 – – F F l l o o o o r r p p l l a a t t e e l l o o c c a a t t o o r r p p o o s s i i t t i i o o n n - - f f o o o o t t e e n n d d
A A
F F i i g g u u r r e e 8 8 – – A A t t t t a a c c h h t t h h e e f f a a s s t t e e n n e e r r
B
A
