4. Using a 5/32" hex wrench, install four flat head cap screws (0001-194-000) and four cleat locator washers to secure the
cleats. Make sure that you install two cleat locator washers per cleat.
5. Proceed to Installing Performance-LOAD.

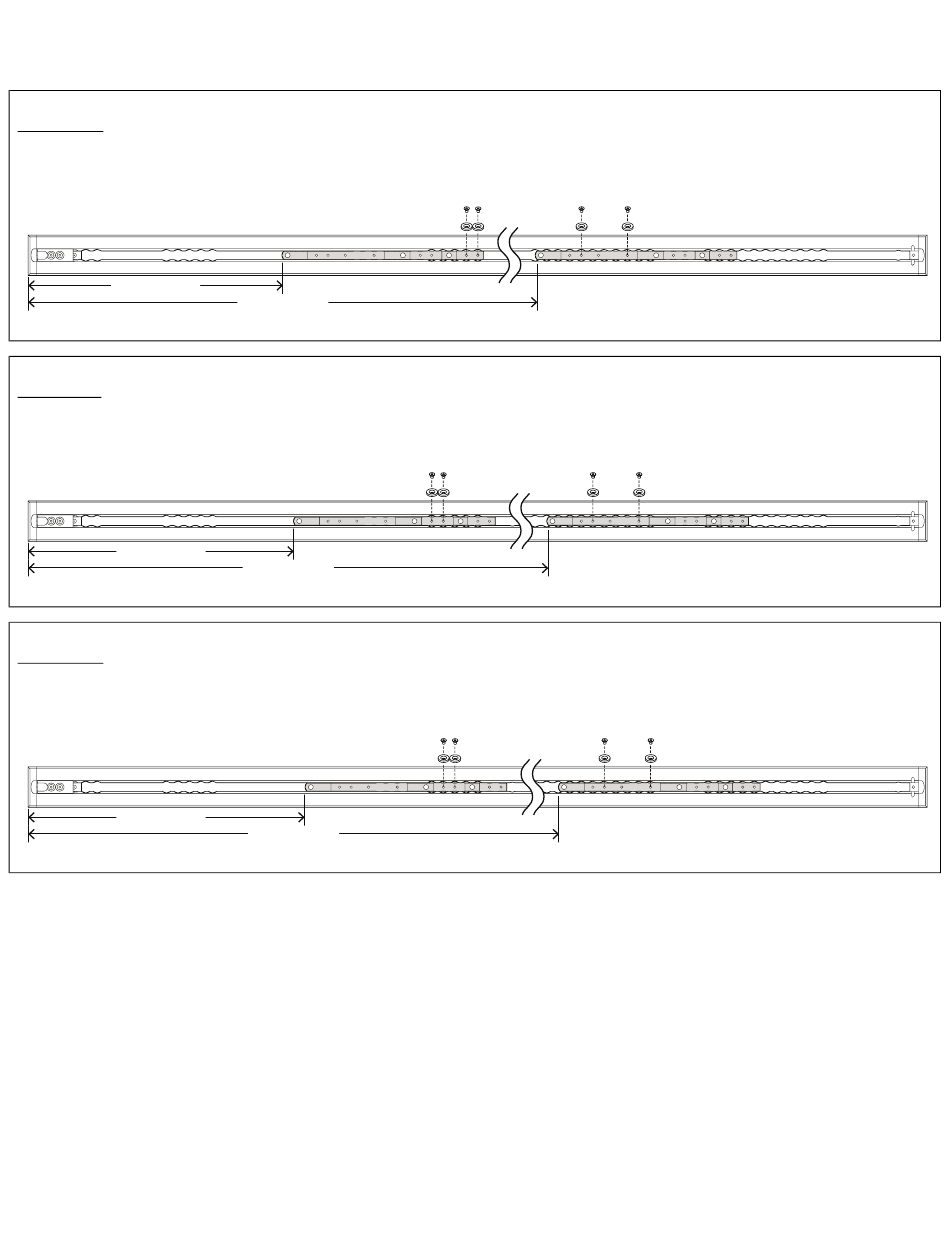

S S e e c c t t i i o o n n O O : : 19 in. (48 cm) sill to cot distance
22"(55.9 cm)
S S e e c c t t i i o o n n P P : : 20 in. (51 cm) sill to cot distance
23"(58.4 cm)
S S e e c c t t i i o o n n Q Q : : 21 in. (53 cm) sill to cot distance
24"(61.0 cm)
I I n n s s t t a a l l l l i i n n g g P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D
T T o o o o l l s s r r e e q q u u i i r r e e d d : :
Hack saw
Slotted screwdriver
3/8" drive torque wrench (ft-lb) > 60 ft-lb
P P r r o o c c e e d d u u r r e e : :
1. Carefully place P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D on top of the floor plate assembly. Align the two bolts at the head end with the two
holes in the cleat as shown in Figure 5.
EN 20
61" (154.9 cm)
62" (157.5 cm)
63" (160.0 cm)
Rubber hammer
3/8" hex wrench (at least 5-3/8 in. (13.7 cm) length)
Silicone sealant
