S S e e l l e e c c t t i i n n g g w w h h e e r r e e t t o o i i n n s s t t a a l l l l P P e e r r f f o o r r m m a a n n c c e e - - L L O O A A D D
Follow these steps to determine location and orientation of cleats and washer locations:
1. Select your sill to cot distance (A) (Figure 4).
Record your distance here: _____
2. Using the table below, select your Section based on your sill to cot distance (A).
Record your section here: _____
3. Proceed to your section to install your cleats.
A

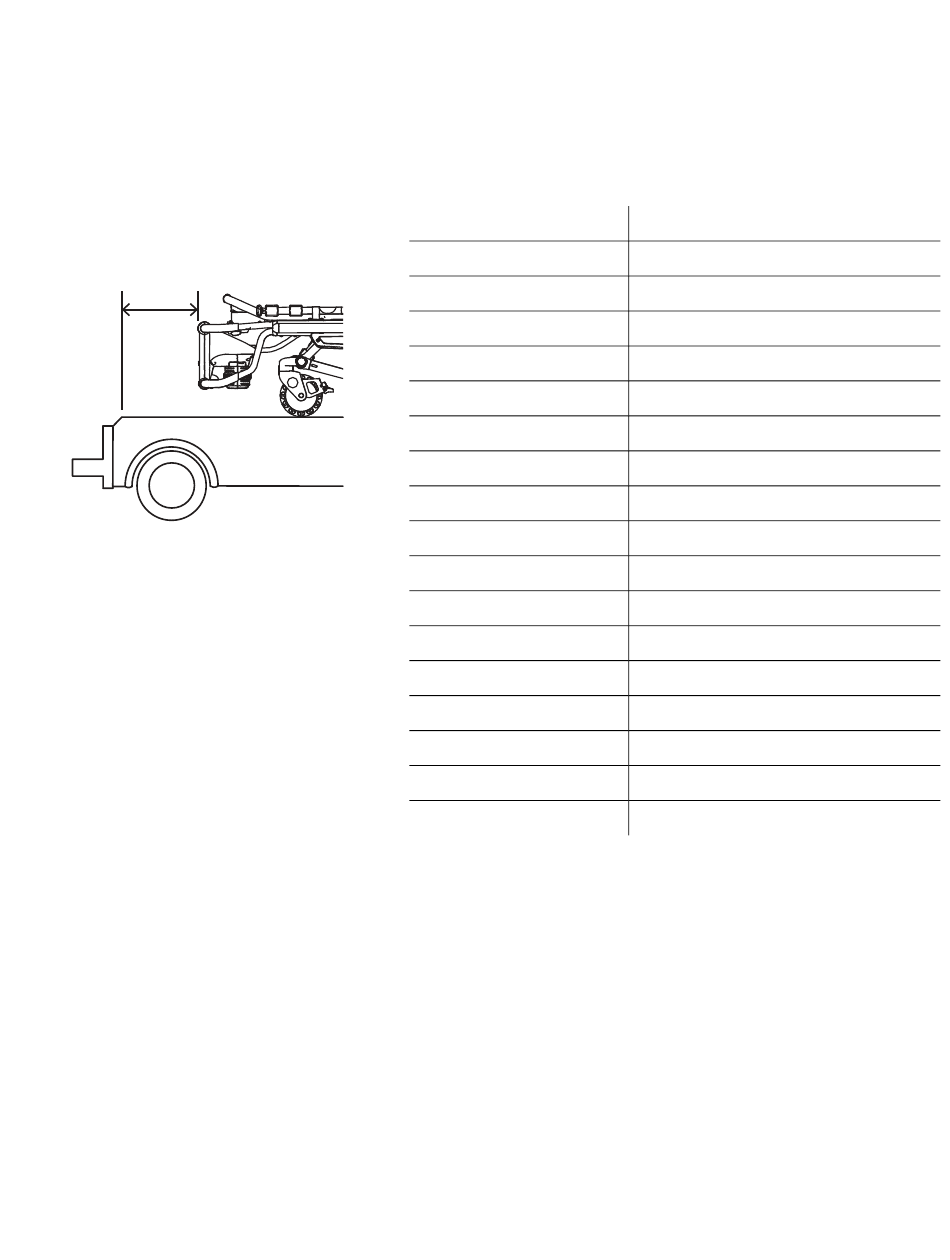

F F i i g g u u r r e e 4 4 – – S S i i l l l l t t o o c c o o t t d d i i s s t t a a n n c c e e ( ( A A ) )
EN 12
S S i i l l l l t t o o c c o o t t d d i i s s t t a a n n c c e e ( ( A A ) )
5 in. (13 cm)
6 in. (15 cm)
7 in. (18 cm)
8 in. (20 cm)
9 in. (23 cm)
10 in. (25 cm)
11 in. (28 cm)
12 in. (30 cm)
13 in. (33 cm)
14 in. (36 cm)
15 in. (38 cm)
16 in. (41 cm)
17 in. (43 cm)
18 in. (46 cm)
19 in. (48 cm)
20 in. (51 cm)
21 in. (53 cm)
S S e e c c t t i i o o n n
Section A
Section B
Section C
Section D
Section E
Section F
Section G
Section H
Section I
Section J
Section K
Section L
Section M
Section N
Section O
Section P
Section Q
