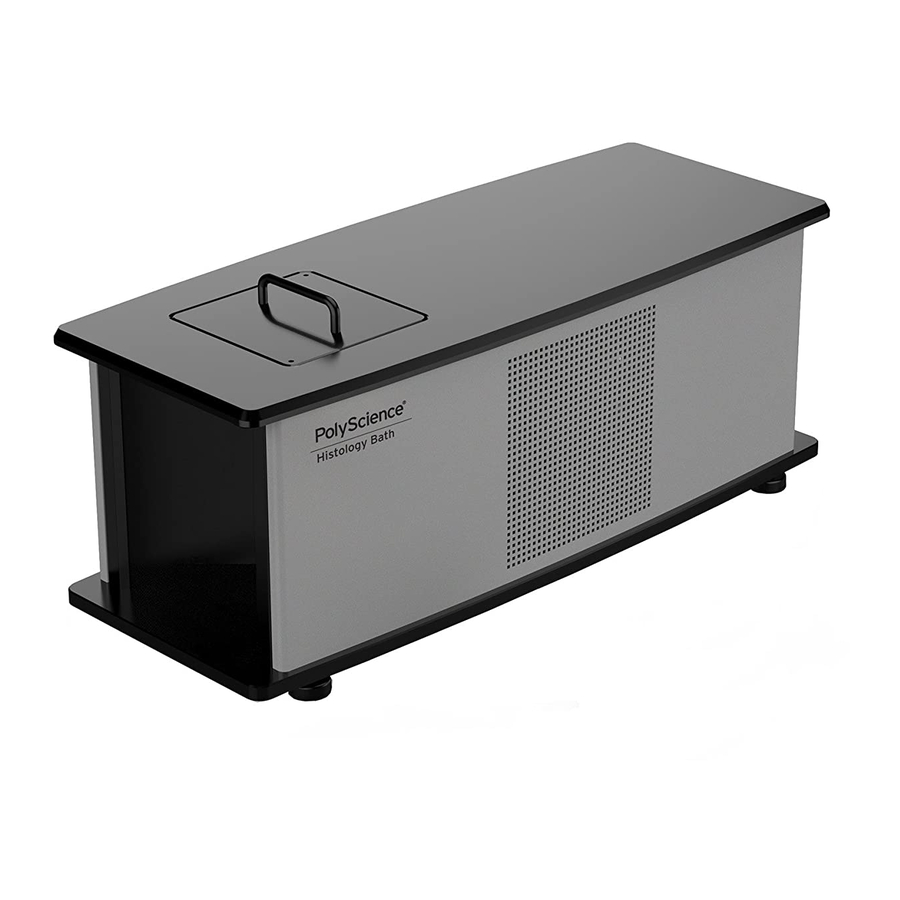

PolyScience Histology Bath Operator's Manual
  1. Manuals
  2. Brands
  3. PolyScience Manuals
  4. Laboratory Equipment
  5. Histology Bath
  6. Operator's manual

PolyScience Histology Bath Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
Histology Bath
110-827
09.12.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Histology Bath and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PolyScience Histology Bath

Summary of Contents for PolyScience Histology Bath

  • Page 1 Operator’s Manual Histology Bath 110-827 09.12.11...

  • Page 2: Table Of Contents

    Table of Contents Introduction............................. 2 General Safety Information..........................2 Safety Recommendations........................... 3 Regulatory Compliance & Testing........................3 Unpacking Your Histology Bath ........................4 Contents ................................. 4 Components & Controls ......................... 5 Installation .............................. 6 General Site Requirements ..........................6 Adding Liquid to the Reservoir.......................... 6 Electrical Power..............................

  • Page 3: Introduction

    Thank you for choosing this Histology Bath. Its low working temperature (-60°C / -76°F) freezes samples quickly, preventing microscopic ice crystals from developing and samples from distorting. It is ideal for fast-freezing tissues for enzyme studies. The Histology Bath is not a controlled cooling source; it is designed to run at maximum cooling.

  • Page 4: Safety Recommendations

    You should also comply with the following safety recommendations: WARNING: The Histology Bath uses isopentane as the bath fluid. Due to the flammability of this liquid, always use the Histology Bath under a fume hood.

  • Page 5: Unpacking Your Histology Bath

    Unpacking Your Histology Bath Your Histology Bath is shipped in a special carton. Retain the carton and all packing materials until the unit is completely assembled and working properly. Set up and run the unit immediately to confirm proper operation. Beyond one week, your unit may be warranty repaired, but not replaced.

  • Page 6: Components & Controls

    Components & Controls Reservoir Cover Power Switch / Circuit Breaker Drain Valve Drain Port Reusable Air Filter (behind grille) IEC Power Connection 110-827...

  • Page 7: Installation

    Installation Your Histology Bath is simple to setup and install. The only tool required is a container for adding a suitable fluid to the bath reservoir. General Site Requirements WARNING: The Histology Bath uses isopentane as the bath fluid. Due to the flammability of this liquid, always use the Histology Bath under a fume hood.

  • Page 8: Normal Operation

    NOTE: The Histology Bath operates at maximum cooling performance. Place the Power Switch / Circuit Breaker on the front of the Histology Bath in the On position. The compressor will start up and the unit will begin cooling. It will take about one hour for the unit to achieve a -60°C / -76°F working temperature.

  • Page 9: Routine Maintenance & Troubleshooting

    Routine Maintenance & Troubleshooting WARNING: Hazardous voltages may be present. Disconnect power before performing maintenance. Draining the Reservoir To drain fluid from the bath, attach a short length of suitable 11.5 mm ID / 0.45 inch ID tubing to the drain port and secure it using a hose clamp with a minimum ID of 18 mm / 0.7 inch.

  • Page 10: Troubleshooting Chart

    Troubleshooting Chart Problem Cause Corrective Action No power to unit Electrical power Check that electrical cord is secure and plugged disconnected into an operating electrical outlet. Power Switch / Circuit Place Power Switch / Circuit Breaker in On Breaker in Off position position.

  • Page 11: Replacement Parts

    Service and Technical Support If you have followed the troubleshooting steps outlined previously and your Histology Bath still fails to operate properly, contact the supplier from whom the unit was purchased. Have the following information available for the customer service person: •...

  • Page 12: Warranty

    This warranty gives you specific legal rights and you may have other rights that vary from state to state. Manufactured by: PolyScience 6600 W. Touhy Avenue Niles, IL 60714 U.S.A. 1-800-229-7569 1-847-647-0611 www.polyscience.com...

This manual is also suitable for:

Histology bath hbath-60
