- Page 1 USER MANUAL ENGLISH Rev. 20190221...
- Page 2 The warranty will be void if unauthorized work is carried out on the product. Only accessories that are specified by the manufacturer should be used with this unit. Use the unit only as specified in this manual. SL Mixface by Studiologic®...
-
Page 3: Table Of Contents
Index Your new SL Mixface ..........4 Configure Mixface ..........10 Product overview ..............4 Introduction ............... 10 The DAW mode ..............4 Store Current Program ............. 10 The Controller mode (CTRL) ..........4 Video tutorial ................4 Zone Edit ..............11 Firmware update ..............4 MIDI Settings ..............11 In the package ..............4... -
Page 4: Your New Sl Mixface
Your new SL Mixface Product overview The Controller mode (CTRL) Thank you for choosing SL Mixface, an instrument The Controller mode transforms Mixface into a fully designed and built for your production or musical programmable MIDI Control Surface; it can be used performance, in the studio or on stage. -
Page 5: Connections / Examples Of Use
USB Host port, only if connected to an external power supply through its USB Device port. Kensington security slot This connector can be used with a Kensington®-style security lock to protect your SL Mixface from possible theft. SL Mixface by Studiologic®... -
Page 6: Examples Of Use
Zone 2 is set to MIDI OUT 1 to control Sledge and Zone 3 via the Bluetooth port can control a MIDI app on the iPad. In DAW mode, after correctly setting the DAW and the USB port, it is possible to manage the track controls and the Transport buttons. SL Mixface by Studiologic®... - Page 7 Mixface is compatible with USB class compliant MIDI controllers limited to the MIDI subclass, meaning that they do not require the installation of specific drivers to communicate with Windows, MacOS and iOS operating systems. Devices that use USB Audio cannot be used. SL Mixface by Studiologic®...
-
Page 8: Panel And User Interface

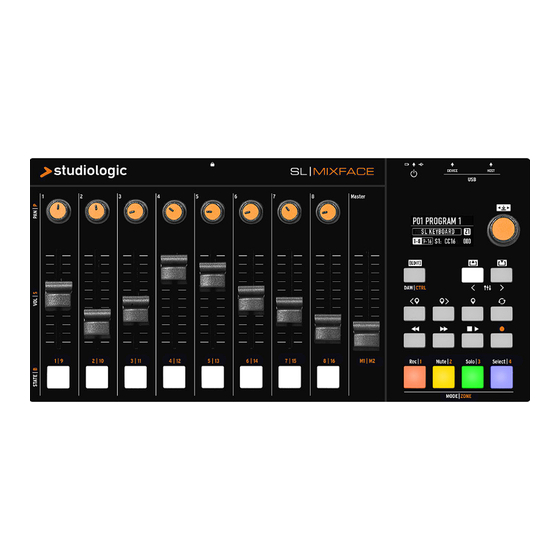

Mixer mode or to select the Zones in the CTRL mode; • 8 potentiometers in the Mixer section for PAN management; • 9 linear cursors (slider); • 8 multi-function buttons. SL Mixface by Studiologic®... -
Page 9: Controller Mode
Studiologic website. to manage the instrument parameters (hardware or software) assigned to each of the four Zones. By connecting a Studiologic SL MIDI Controller to the The Transport buttons in the right section of Mixface USB Host port , Mixface becomes its natural extension, works the same way in both the DAW and CTRL modes. -
Page 10: Daw Mode
Please check the configuration instructions for your DAW on the Studiologic website. Mixface detects if changes have been made to the Program, so outgoing asks the user if he wants them to be saved in the current Program. This allows to directly save and overwrite the current Program. -
Page 11: Zone Edit
8 buttons with a total of 50 MIDI controls the right column and set the desired value. for each Zone in Controller mode. NOTE These parameters are ignored in SL KEYBOARD mode, because Mixface extends the Zones of a SL MIDI Controller. SL Mixface by Studiologic®... -
Page 12: Global
This mode allows you to remotely control the Mixface (DAW and CTRL mode) wirelessly and to implement in your Studiologic MIDI Controller the ability to play, for example, a virtual instrument wirelessly. There are 3 functions available: NOTE •... -
Page 13: Declarations
Directive 2012/19/EU Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE) Recanati, 6. 11. 2018 Marco Ragni, Chief Executive Officer SL Mixface by Studiologic®... -
Page 14: Warranty
