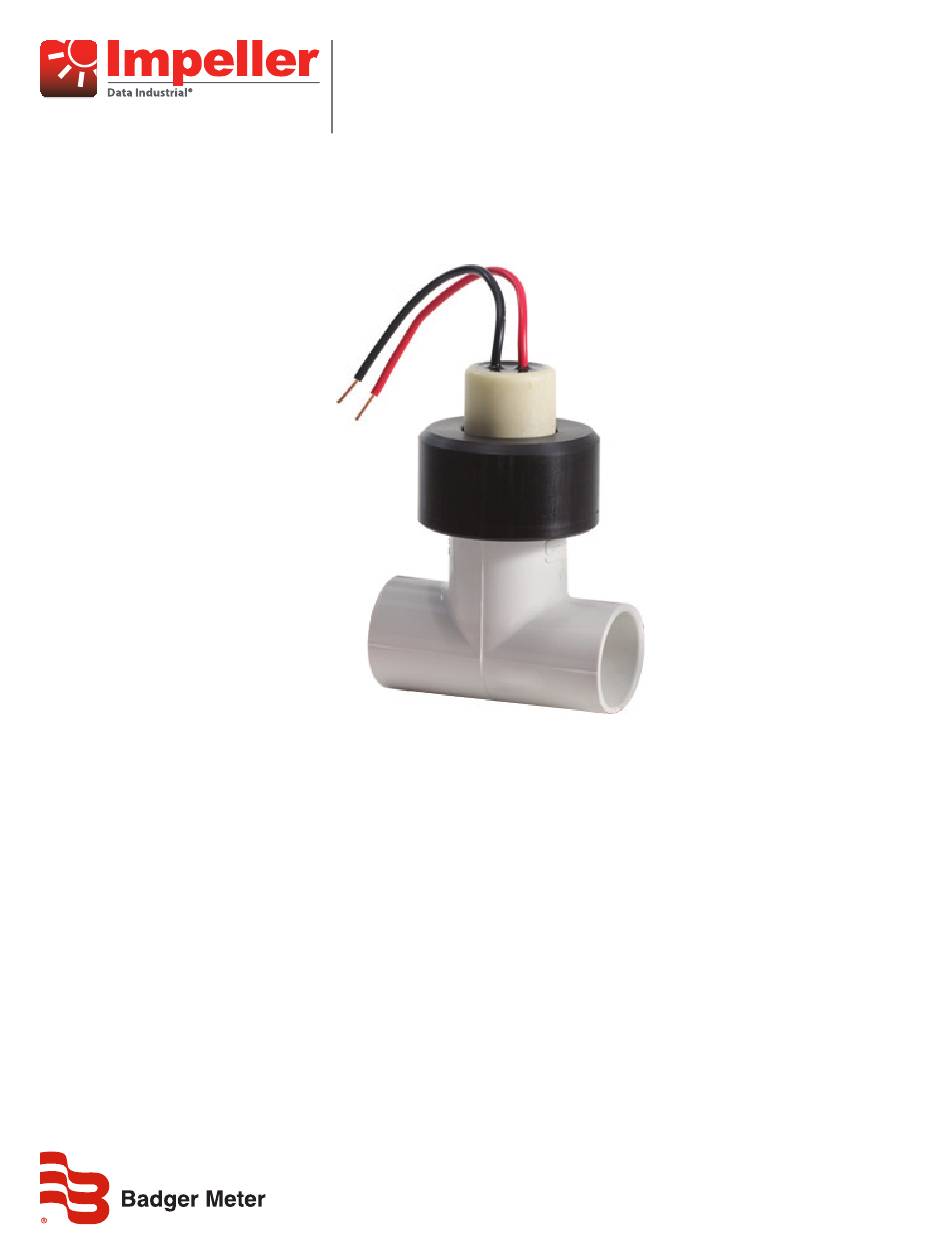

- Page 1 Sensor Series 735 Plastic Tee Type Flow Sensor User Manual SEN-UM-01665-EN-04 (October 2015)
-
Page 2: Table Of Contents
Sensor, Series 735 Plastic Tee Type Flow Sensor CONTENTS Scope of This Manual Unpacking and Inspection Safety Terminology and Symbols Considerations Introduction Electronic Types IR Sensor Series 735 Mechanical Installation Electrical Installation Guidelines Flow Sensor Installation Additional Information Calibration Calibration Table Dimensions Specifications Ordering Matrix... -
Page 3: Scope Of This Manual
Scope of This Manual SCOPE OF THIS MANUAL This manual is intended to help you get the Series 735 flow sensor up and running quickly MPOOTANT Read this manual carefully before attempting any installation or operation. Keep the manual accessible for future reference. UNPACKING AND INSPECTION Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment... -
Page 4: Introduction
A sensor located in the pipe where it can be affected by air bubbles, floating debris or sediment may not achieve full accuracy and could be damaged Badger Meter flow... -
Page 5: Electrical Installation Guidelines
• Route the cable from the sensor to a Badger Meter flow monitor or endpoint The cable may be extended up to 2000 ft, using two-conductor shielded 20 AWG or larger stranded copper wire with appropriate ratings Leave enough flexibility in the cable or conduit to allow for future service •... -
Page 6: Flow Sensor Installation
Flow Sensor Installation FLOW SENSOO INSTALLATION DEPRESSURIZE AND VENT PIPING SYSTEM PRIOR TO ANY INSTALLATION OR MAINTENANCE OF THE FLOW SENSOR. DISCONNECT POWER FROM FLOW SENSOR SOURCE AND/OR RECEIVING DEVICE PRIOR TO ANY INSTALLATION OR MAINTENANCE OF THE SYSTEM. 1 Remove the sensor assembly and the nut from the tee 2 Remove burrs from the pipe ends and remove dirt and loose debris from pipe and tee sockets 3 Glue the line pipe into the tee using an appropriate primer and cement according to the manufacturer's instructions Do not use or leave excess glue Glue build-up in the tee can affect the measurement performance of the unit and/or prevent... -
Page 7: Additional Information
Flow Sensor Installation Additional Information • The unit functions best with schedule 40 or a pipe wall thinner than schedule 40 • Keep all parts as clean as possible Do not let the glue or primer contact the surfaces where the O-rings make their seal •... -
Page 8: Calibration
Calibration CALIBOATION Badger Meter Impeller sensors use unique K and offset numbers for calibration These numbers are derived from calibration runs using NIST traceable instruments Using both a K and an offset number provides higher accuracy than using a K-factor... -
Page 9: Dimensions
Dimensions DIMENSIONS Optional Soc Size, NPS Centerline to Top 1/2 in [Ø 0 840"] 3 85 in (97 8 mm) 3 06 in (77 7 mm) 6 086 in (154 6 mm) 3/4 in [Ø 1 050"] 3 85 in (97 8 mm) 3 31 in (84 1 mm) 6 775 in (172 1 mm) 1 in [Ø... -
Page 10: Specifications
Specifications SPECIFICATIONS Wetted Materials (except tees) See "Ordering Matrix" on page 11 for material specifications Materials PVC Type 1, white Adapter PVC Type 1, gray BSP Fitting PVC Type 1 Sensor Housing Retaining Nut Acetal copolymer, black Locating Pin 300SST Impeller 300SST Shaft... -
Page 11: Ordering Matrix
