PRODUCT OVERVIEW (CONTINUED)

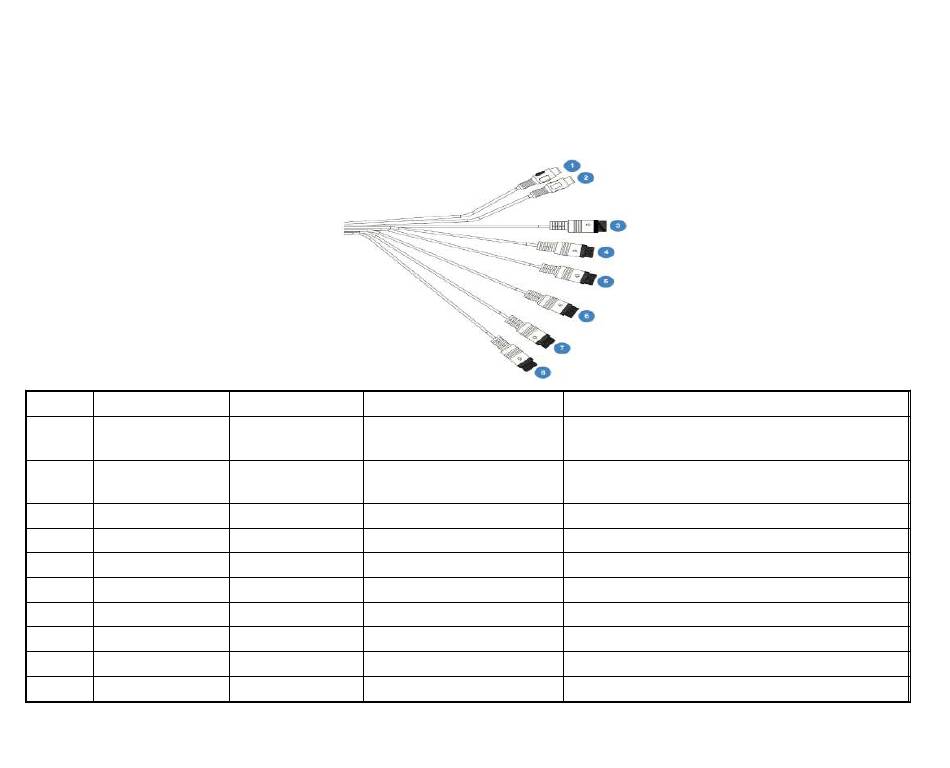

C. Video and Audio Cable Descriptions
NO. WIRE COLOR
1 Yellow
2 Red
3 Black
4 Black
5 Black
6 Black
7 Black
8 Black
9 Black
10 Black
Issued October 2018
Product Overview
USER MANUAL
AWT09MLEDSD
TYPE DESCRIPTION
RCA Live Video Out
RCA Live Audio Out
Mini-Din Camera R (Rear)
Mini-Din Camera A (Left)
Mini-Din Camera B (Right)
Mini-Din Camera C
Mini-Din Camera 5
Mini-Din Camera 6
Mini-Din Camera 7
Mini-Din Camera 8
REMARK
On screen video loop out (for recording,
second monitor or other device)
On screen video loop out (for recording,
second monitor or other device)
For first camera connection
For second camera connection
For third camera connection
For fourth camera connection
For fifth camera connection
For sixth camera connection
For seventh camera connection
For eighth camera connection
