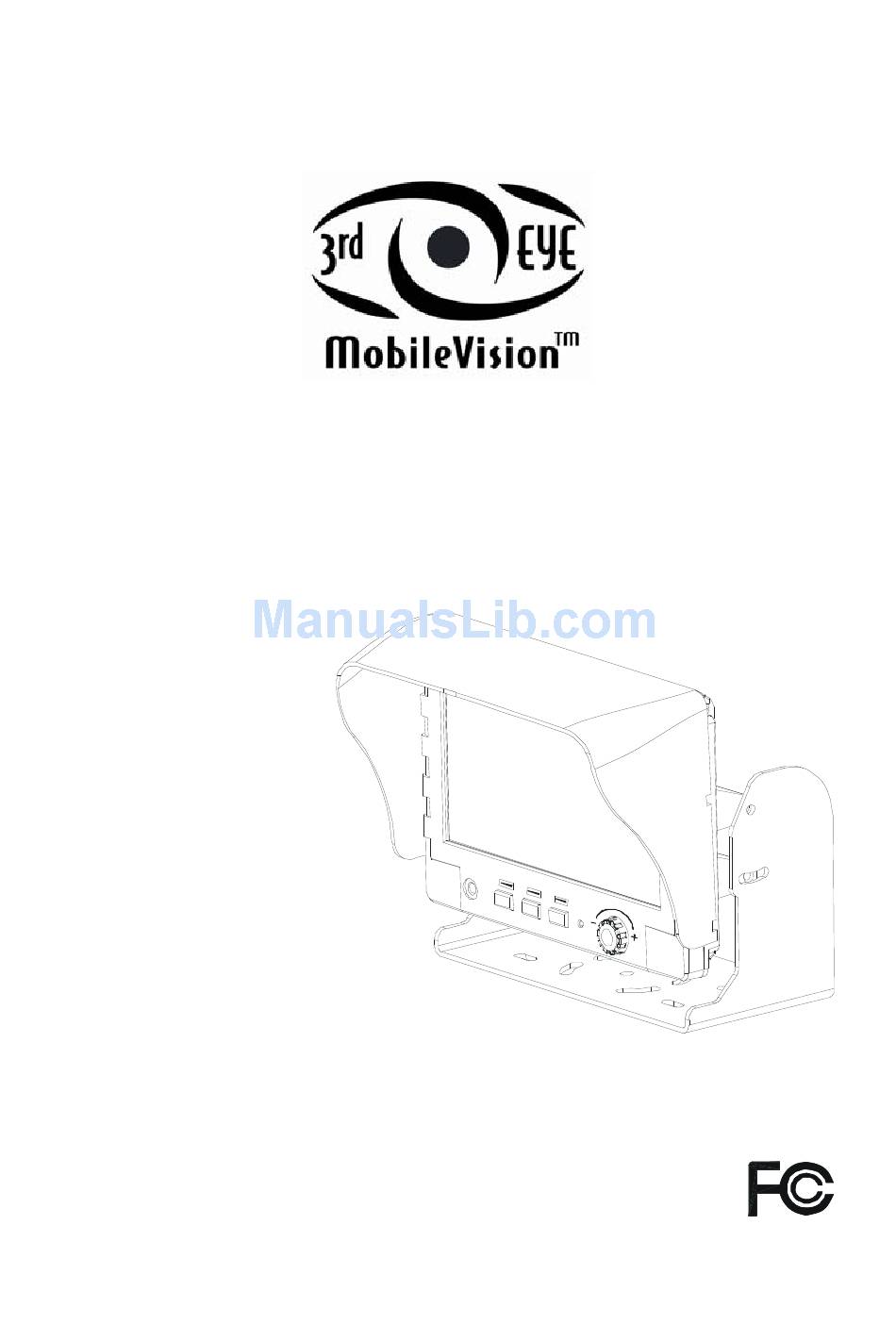

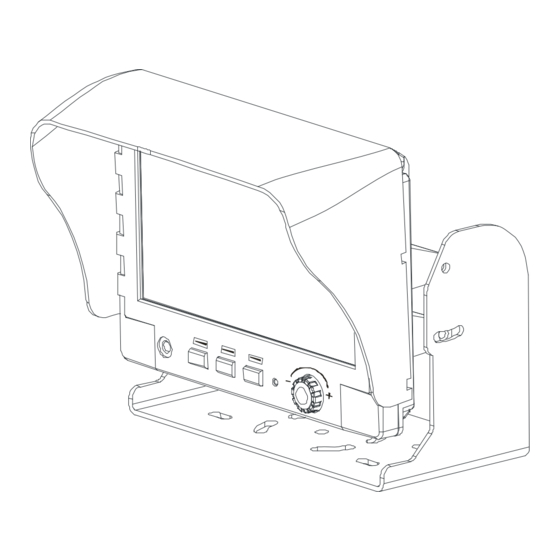

- Page 1 Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice AWT07MLED 7” Q TFT LCD MONITOR (LED Backlighted) USER MANUAL...
-
Page 2: Safety Precaution
SAFETY PRECAUTIONS Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
TABLE OF CONTENT Safety Precaution.………………………..…………………………………………..2 Table of Content.….………………………………………………………………………3 Features….………………………………………………………………………………...4 Package Contents…….………………………………………………………………..5 TFT Installation……………………………………………….…………………………6 Signal Cable Description……..………………………………….…………………..7 Control Cable Description……..…………………………………….……………….9 Front Panel Control.……………………………………………………..………… 10 Main OSD Menu……..……………………………………………….………11 Screen Menu……………………………………………………………………...12 Display ……….…………………………………………………………….…13 Camera ...……………………………….…………........15 Information...……………………………….…………........19 Vehicle Installation ……………………………………….……………………..20 Specification…..………………………………………..……………………….21 Attachment…..……………………………………………….……………………22... -
Page 4: Features
FEATURE Advanced OSD Menu for easy use Support up to 4 CCD Camera inputs (Mini din connector) Extra RCA input for multimedia while parking (VCD, DVD, Game device) Provide 2 Video / 1 Audio Signal Output (Live Out) Support Single / Dual / Triple / Quad Screen (Cam Out) Signal Trigger for Side / Rear View Auto Day &... -
Page 5: Package Contents
1. Package Contents Item Qty. 1. 7” LCD Monitor 2. Sun-Hood 3. Mounting Bracket 4. Accessories 5. Control Cable 6. User Manual... -
Page 6: Tft Installation
2. TFT Installation Step 1 Check the package and make sure all parts are included. Step 2 Clip the sun-hood on to the monitor. Step 3 Make sure it is installed properly. Step 4 Install the monitor on to the bracket. Step 5 Adjust the monitor to an appropriate / comfortable viewing angle before tightening the screws. -
Page 7: Signal Cable Description
3. Signal Cable Description CAM R (Mini din) (NTSC/PAL system presume by this car rear CCD) For 1 camera connection CAM A (Mini din) For 2 camera connection CAM B (Mini din) For 3 camera connection CAM C (Mini din) For 4 camera connection LIVE VIDEO OUT (White Color RCA Jack) - Page 8 Mini Din Pin Assignment * Type 1 (Standard): 1. Video 4. +12V 2. ------- 5. GND 3. Audio 6. ------- Function of the Audio Cam A Audio from Cam A Cam B Audio from Cam B Cam C Audio from Cam C Cam R Audio from Cam R Cam A + Cam B...
-
Page 9: Control Cable Description
4. Control cable Description Don’t connect the red wire (power wire) of this product directly to the battery. Connect the red wire of this product to the ACC of the ignition key switch. Failure to do so may result in permanent damage of the product. WIRE COLOR FUNCTION REMARK... -
Page 10: Front Panel Control
5. Front Panel Control POWER Press the power button to activate the monitor or to keep the monitor under stand by mode (In Red Led). SELECT With power on, press this button to select image sequence as below~ AV CAM A+B CAM C+R CAM A+R CAM R+B CAM A+C CAM C+B CAM R/AB CAM R+AB CAM A CAM B CAM C CAM R AV…….. -
Page 11: Main Osd Menu
OSD Menu 1. Press the MENU button to enter to the OSD Menu 2. Turn the MENU button left or right to select the setting you wish to proceed. The color of the content will turns YELLOW to identify your selection. Turn the MENU button left or right to adjust your setting value. -
Page 12: Screen Menu
SCREEN Menu This menu set up contains different setting for the TFT LCD. Brightness Provide adjustment for shade and brightness level of TFT display. Setting value from 0 ~ 100. Default value is 37. Contrast Provide adjustment for the light and dark level of the TFT display. Setting value from 0 ~ 100. -
Page 13: Display
DISPLAY Menu This menu set up contains the on screen identification and the activation of the distance gauge. Auto Day&Night Select “ON” to activate the auto day & night function or “OFF” to deactivate it. Default value is OFF. Display Select “ON”... -
Page 14: Priority
PRIORITY If Priority is ON a. Press SOURCE button to select image sequence as below~ AV CAM A+B CAM C+R CAM A+R CAM R+B CAM A+C CAM C+B CAM R/AB CAM R+AB CAM A CAM B CAM C CAM R AV……. -
Page 15: Camera
CAMERA Menu This menu set up contains the on Camera and Jump setting. Mirror Select “ON” to activate the mirror function for different cameras or “OFF” for a normal image. Default values are following below setting. CAM A “OFF” CAM B “OFF”... - Page 16 Dir Image The screen image setting of this panel during left / right turn: TRIPLE: When you are making a right turn or left turn, the screen of panel will display triple images for left hand side, right hand side and rear view when you are making a right turn or left turn.
- Page 17 Jump By pressing this button, the driver will be able to obtain the image selected under this setting. QUAD Obtain image from all camera input in quad picture while pressing the JUMP button and press again to return the default screen. SEQ.
- Page 18 Cam Out Composite video loop out to recorder, monitor or other device. QUAD Recording or viewing from the output device in quad mode CAM A Recording or viewing from the output device for CAM A image CAM B Recording or viewing from the output device for CAM B image CAM C Recording or viewing from the output device for CAM...
-
Page 19: Recall/Exit
Information This menu set up contains Recall & Exit function. Recall Recall factory default. Exit Exit OSD menu. Notice：Firmware version has shown on last column. -
Page 20: Vehicle Installation
6. Vehicle Installation C a mera Green Yellow Yellow Green (This “ DISTANCE GAUGE” is for user’s reference only) Install Camera R (for rear view) Use a measuring tool to mark out the distance behind the vehicle. Adjust the viewing angle of the camera so that the distance gauge shown from the TFT match to the distance marks behind the vehicle. -
Page 21: Specification
7. Specification Screen size 7 Inch Touch Panel ( diagonal ) Active area 154.08(H) x 86.58(V) Pixel configuration 0.107 x 0.370 Resolution 1440(W) x 234 (H) Viewing angle UP:40° / Down:60° / Left: 60° / Right:60° Power source: DC9.6V ~DC32V ※... -
Page 22: Attachment
8. ATTACHMENT Attachment 1: Dimension Chart... - Page 23 Attachment 2: Installation Chart Notice: Please proceed with suggested installation instruction according to above picture to avoid any malfunction of the product.
-
Page 24: Connecting Steps For Cable Of Two-Sections-In-One
Connecting Steps for Cable of Two-Sections-in-One. A. The first part of the cable which connected with the LCD Monitor, herewith we called the Male Section B. The second part of the cable which ended with the RCA/MINI DIN connectors, herewith we called the Female Section.
Need help?
Do you have a question about the MobileVision AWT07MLED and is the answer not in the manual?
Questions and answers
How do I unlock OSD menu
To unlock the OSD menu on the 3rd Eye MobileVision AWT07MLED, press and hold the JUMP and SELECT keys simultaneously for over 5 seconds. Ensure that the LCD is turned on to run the unlock process. All function buttons remain operational during the OSD menu lock period.
